Redtronic Spartan 1654 mm / Blue - Yellow / 16 modules

The Spartan beacon panel is a powerful warning device designed for both emergency and service vehicles. It offers a wide range of customization options to meet different customer needs – from rescue services to fast pursuit vehicles. The Spartan beacon panel includes several additional features, such as:

• Stop/Tail/Turn lights
• Work/Parking lights and side marker lights option
• Central LED sign
• Built-in traffic control function
• Optional built-in speaker and siren

Spartan is designed for harsh environments, using a 4 mm UV-stabilized polycarbonate lens and a durable aluminum frame that provides protection against high-impact debris. Additionally, the beacon panel offers various LED module color options – including single- and two-color combinations – that use the latest generation ultra-bright LEDs behind wide-angle FX optics.

Made in the United Kingdom and covered by a 5-year warranty.

Technical Data

• Optic type: Wide-angle FX optics
• Material: 4 mm UV-stabilized polycarbonate lens
• Shape: Low profile
• IP Rating: IP54 (internal LED modules IP69K)
• Certifications:
  • ECE R65 Class I (Yellow)
  • ECE R65 Class II (Blue)
  • EMC/R10 compliance
  • CAP168/ICAO patterns designed for airports
• Modes: Night and day mode (dimming function)
• Features:
  • Synchronizable with other Redtronic products
  • Cruise function
• Voltage: 11–30 V (low current consumption)
• Flashing modes: 6 standard patterns
• Warranty: 5 years

Features and Benefits

• High-power latest generation LEDs
• Wide range of customization options
• Optional sign and traffic control function
• Built-in work and side light options
• Durable polycarbonate lens and IP69K certified internal modules
• Night and day modes for better visibility
• CAP168/ICAO flashing patterns designed for airports
• Synchronization capability makes usage versatile
• Energy-efficient low current consumption design
• Wide operating temperature range (-40°C to +105°C)

Applications:
The Spartan beacon panel is suitable for alarm and maintenance vehicles, commercial and safety vehicles, and all applications where a versatile, durable, and powerful LED beacon panel is needed.

Spartan is a reliable solution that offers maximum visibility and safety even in the most demanding conditions.

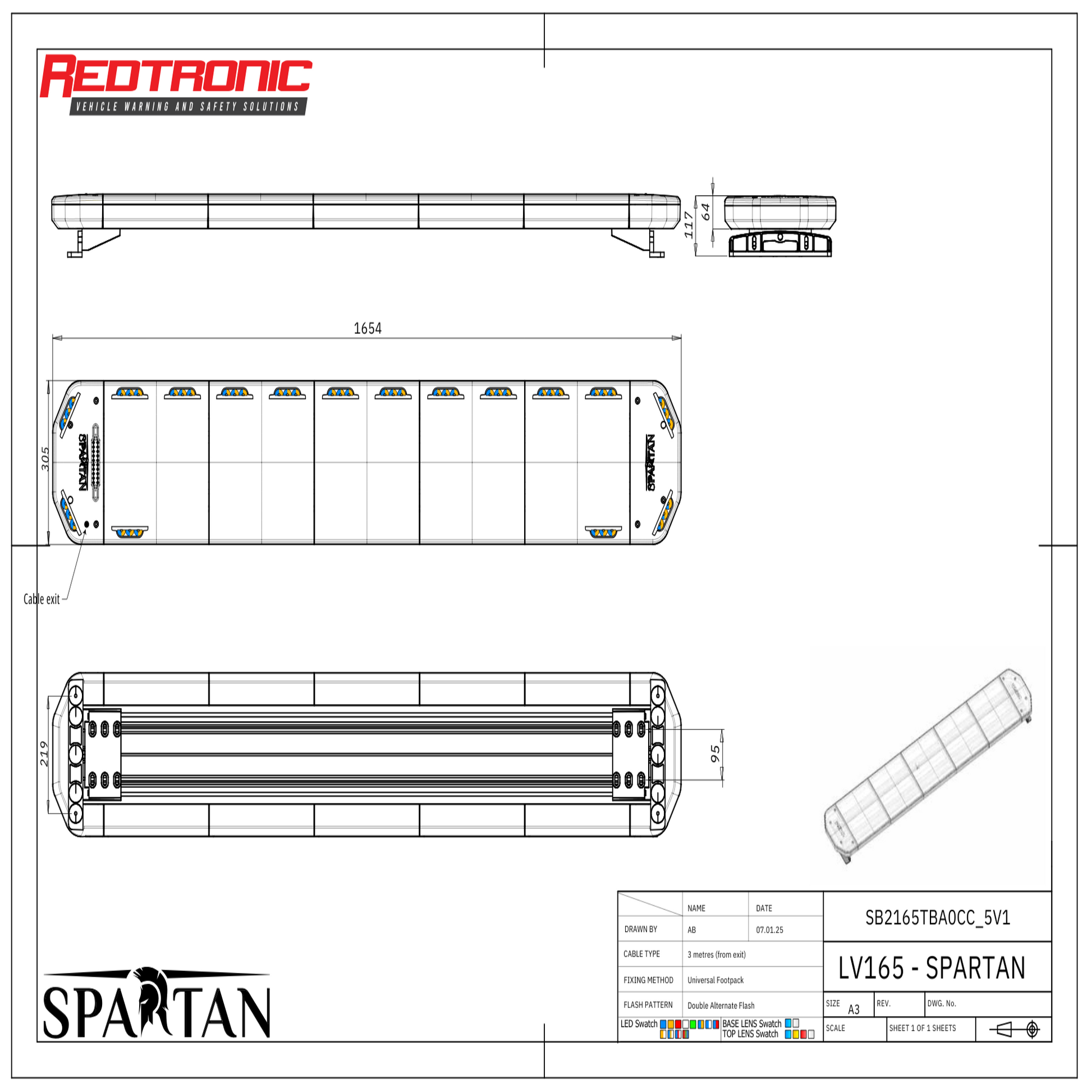

The beacon panel you order is the one shown in the PDF drawing. The product description generally describes what the Spartan beacon panel is like!
