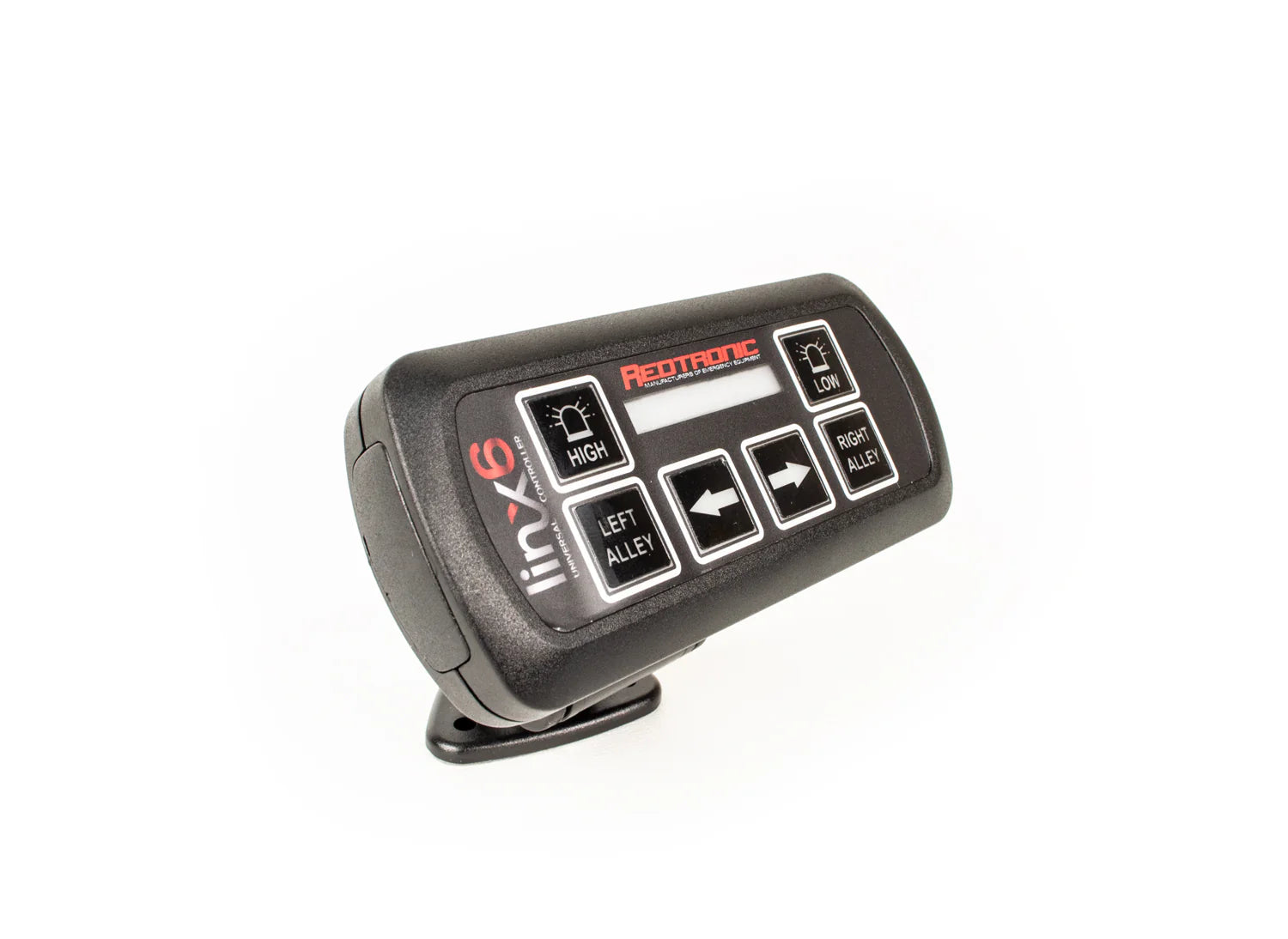

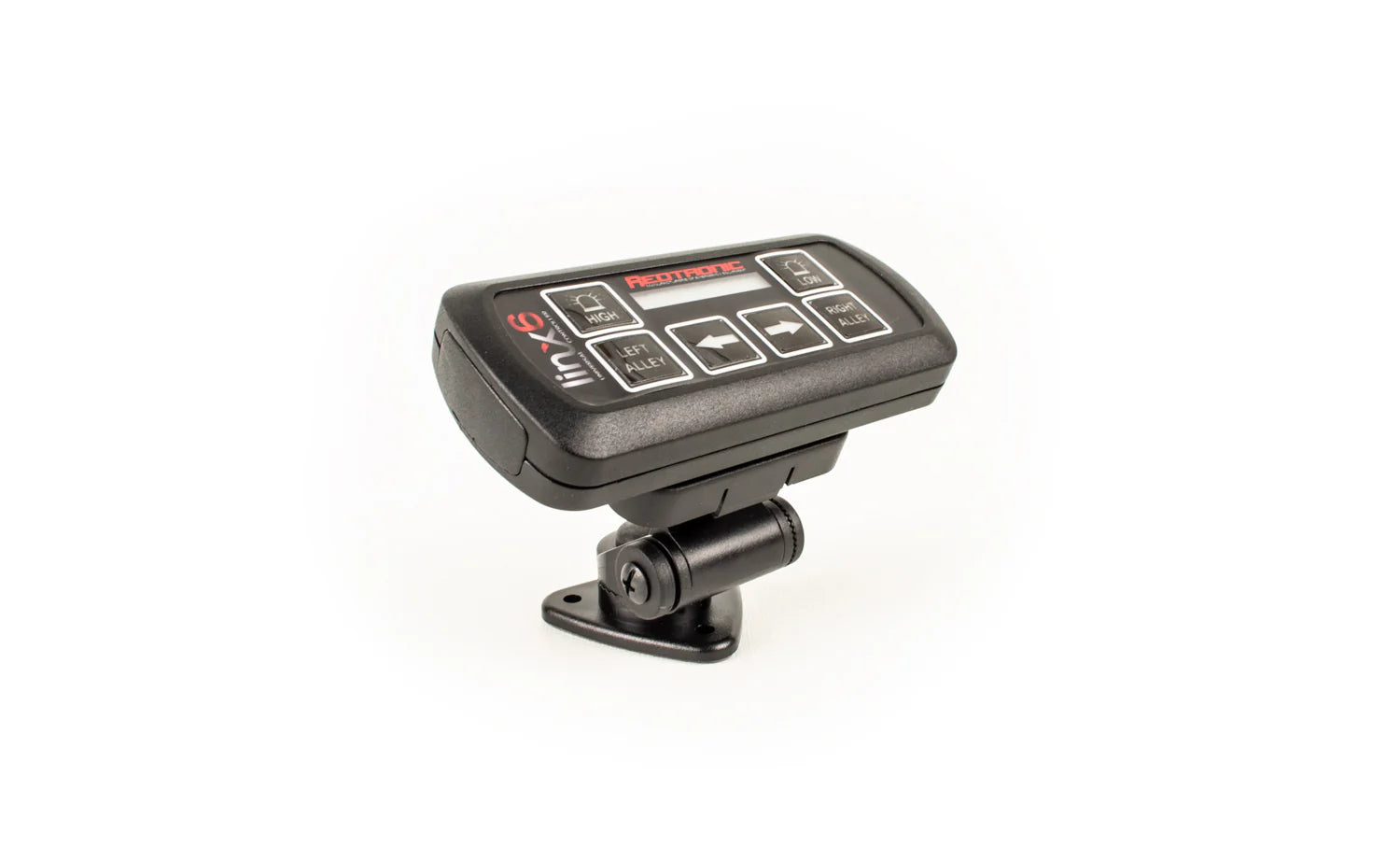

Redtronic LINX6 – 6-channel universal remote control

Precise and dynamic control device specifically designed for managing Redtronic lighting and sound systems. Compact design, user-friendly configuration, and dynamic RGB switches ensure flexible and reliable operation!

Features:

• 6 dynamic RGB switches: Ability to configure each switch's color and operating mode (latching or momentary).
• Two high current outputs (10A): Suitable for controlling larger loads.
• Four low current outputs (2A): Ideal for controlling smaller devices.
• Dynamic hierarchy switch selection: Allows assigning master and subordinate switches.
• 999 and kill-switch functions: For rapid emergency control.
• User-friendly setup: Switch activation color and modes are customizable (red, amber, green, blue, white).
• Integrated LED safety signal indicator: Used for traffic direction, can be deactivated if needed.
• Overload protection: Outputs are immediately switched off upon overload detection, indicated by 3 flashes and 3 beeps.
• Factory reset function: Restore factory settings with one button press.
• Automatic sleep mode (90 min): Energy-efficient mode with one-button wake-up function.
• Sound signal activation/deactivation: User can choose whether the sound signal is enabled.
• Compact design: Small and durable housing suitable for various installations.

Technical specifications:

• Operating voltages: 12–24 V (DC)
  • Minimum operating voltage: 8 V
  • Maximum operating voltage: 30 V
• IP rating: IP52 (protected against dust and dripping water)
• Material: ASA+PC+FR (UL 94 V-0)
• Dimensions without plug: 116 mm (L) x 54 mm (W) x 21 mm (H)
• Dimensions with plug: 116 mm (L) x 54 mm (W) x 39 mm (H)
• Operating temperature range: -40 °C to +85 °C
• Current limits:
  • Switches 1 & 2: 10A (total limit 15A)
  • Switches 3, 4, 5, 6: 2A (total limit 8A)
• Maximum total current: 23A
• Standby current consumption: 30mA
• Sleep mode current consumption: 30mA
• Overload monitoring: Yes (at channel and device level)
• Wire length: 3000 mm (8 x power and output wires)
• Number of operating cycles: 100,000 cycles per switch
• RGB backlit switches: White backlight, activation color selectable by user.
• Standards compliance: EMC/R10, RoHS
• Warranty: 2 years

Functions and applications:

• Lighting and sound device control: Suitable for controlling Redtronic lighting and sirens.

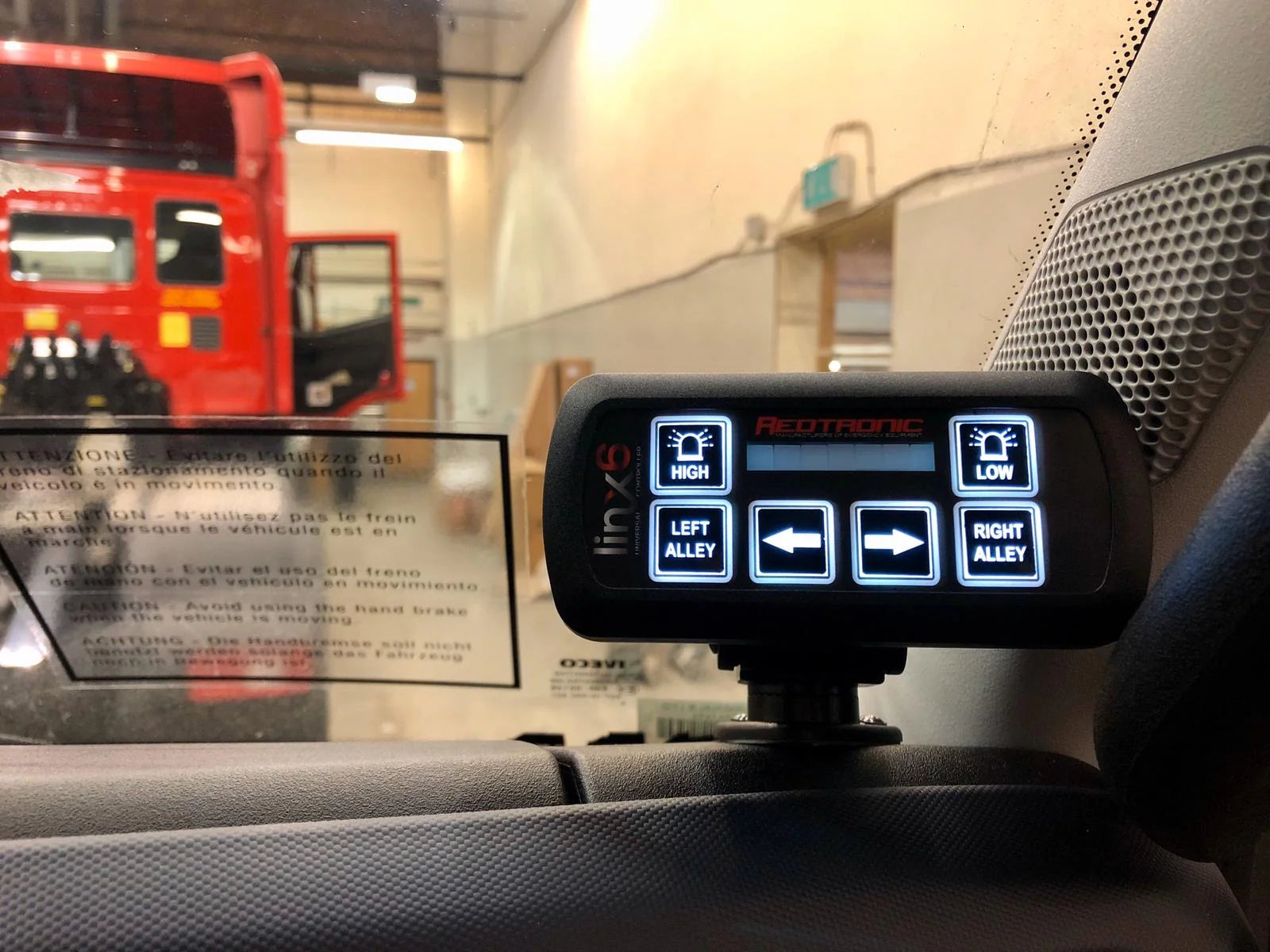

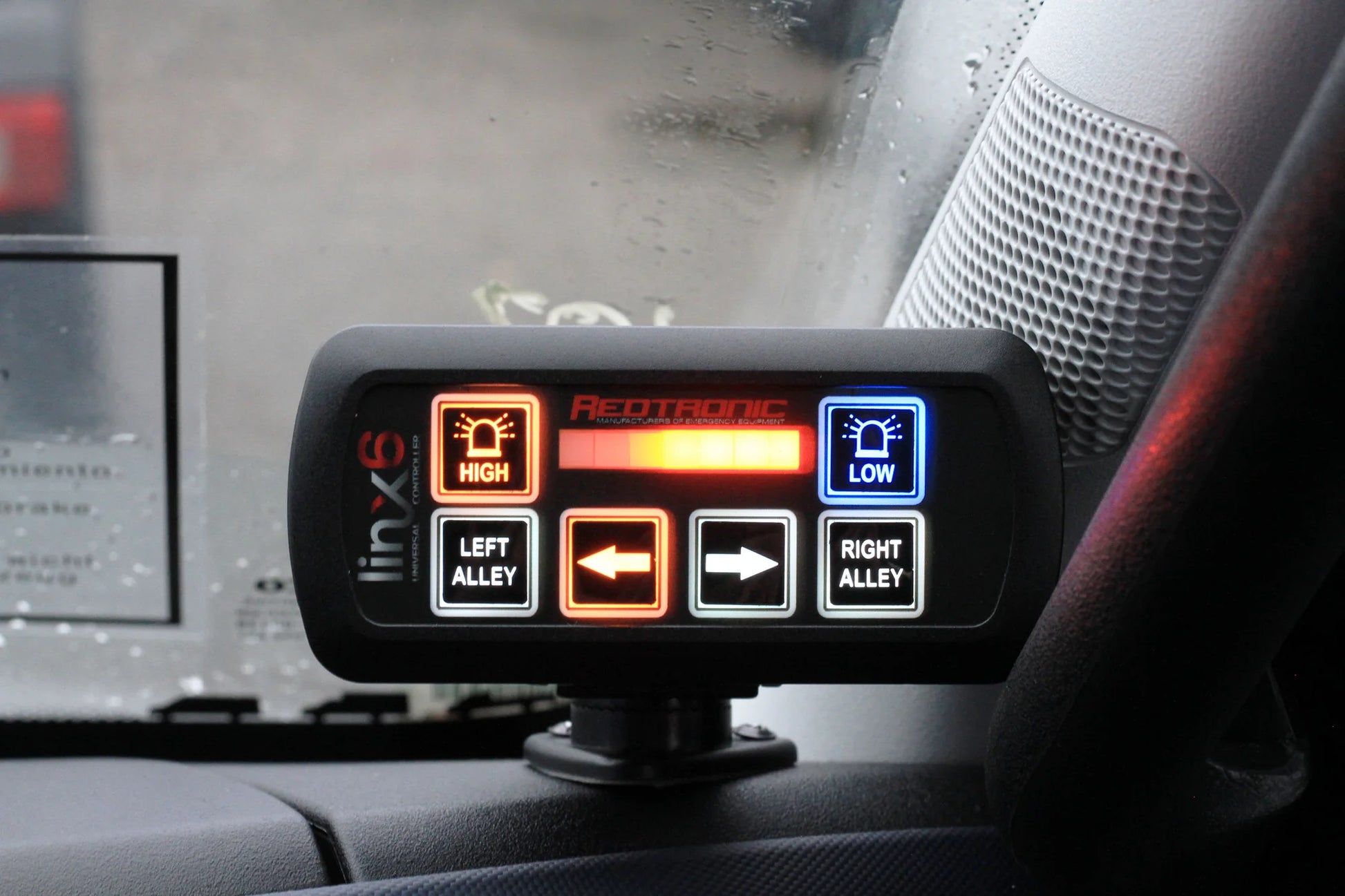

• Traffic management: User-friendly traffic director LED strip.
• Various operating modes: Switches can be latching or momentary, depending on user needs.
• Customizable design: Customizable labels and RGB activation colors.
• Safety features: Overload protection and sound signal activation.

User convenience:

• Intuitive user interface: Clear and simple control.
• Colored indicators: Each switch color is customizable.
• Easy installation: Compact and durable design allows installation in various locations.
• Automatic sleep mode: Energy-efficient solution that extends device lifespan.

Why choose Redtronic LINX6?

• Versatile control device: Suitable for controlling lighting, sirens, and other devices.
• Dynamic switches: Each switch function can be configured according to user needs.
• Compact and durable design: Suitable for use in harsh environments.
• Safety and reliability: Complete overload protection and automatic sleep mode.

👉 Redtronic LINX6 is the ideal solution for professional and reliable applications, offering precise control and maximum flexibility in every situation!
