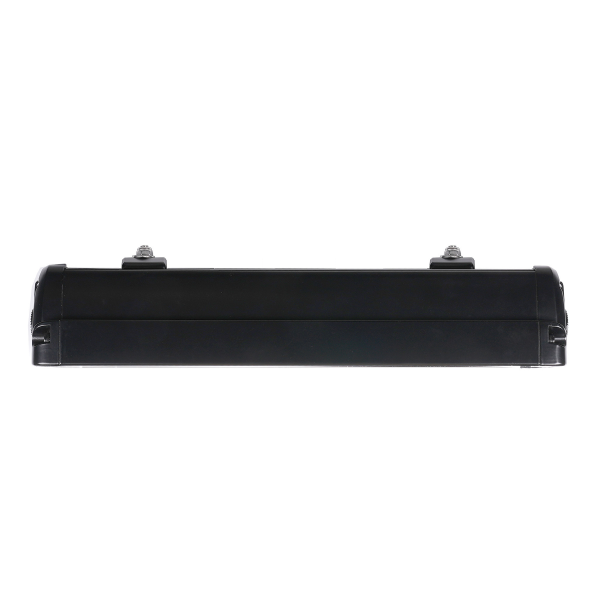

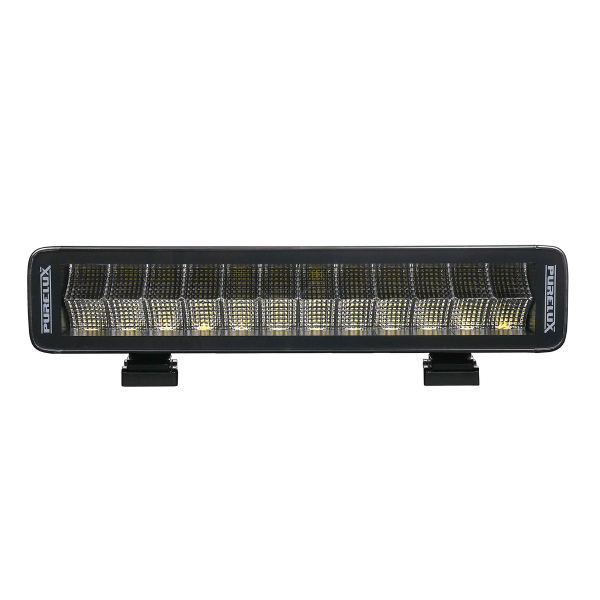

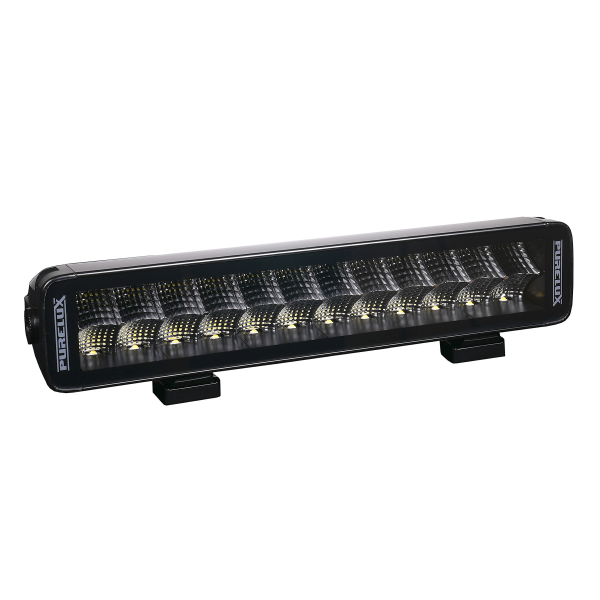

Purelux Terrain Straight 120W - Straight / 36 cm

Compact and durable work light with a wide beam that can illuminate large areas evenly and efficiently. Elegant design, dark optics, and frameless lens make it an ideal choice for work machines and off-road vehicles.

Main Features:

• Wide beam: Even and wide coverage beam ensures excellent visibility in close proximity.
• Luminous flux: 10,080 lm (theoretical).
• Beam range: 138 m (@ 1 lux).
• Neutral color temperature (5700K): Reduces eye fatigue and is suitable for long-term use.
• Compact design: Only 70 mm in height, suitable for installation in tight spaces.
• Frameless design: Snow, ice, and dirt do not accumulate on the lens edges.
• Dark optics: Stylish and discreet appearance for all types of vehicles.
• IP67 protection class: Dust and waterproof construction.
• Wide operating voltage range (10–30V): Suitable for both 12V and 24V electrical systems.
• Durable construction: Powder-coated aluminum housing and UV-protected polycarbonate lens.
• Radio interference protection: Complies with ECE R10 standard.

Technical Data:

• Power supply voltage: 10–30 V (DC)
• Power: 120 W (nominal power)
• Measured current consumption: 4.2A @ 24V
• Measured power: 101 W
• Luminous flux: 10,080 lm (theoretical)
• Beam range: 138 m (@ 1 lux) / 277 m (@ 0.25 lux)
• Color temperature: 5700 K (measured: 5666 K)
• LEDs: 24 x 5W Osram
• Protection class: IP67
• Cable length: 50 cm (with DT-2 connector)

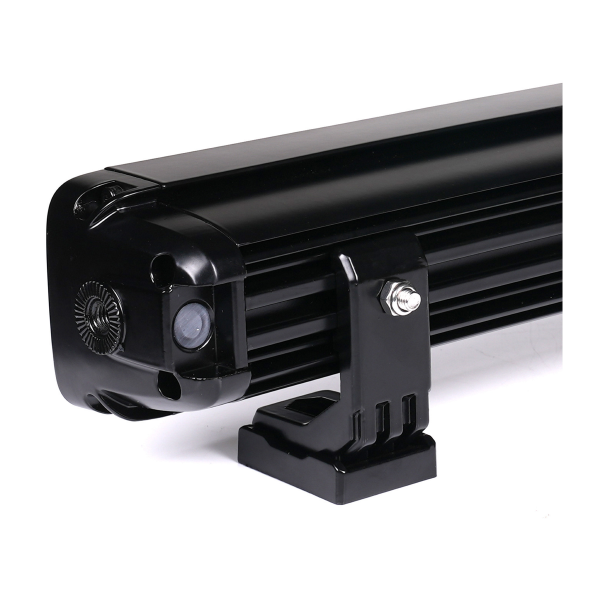

• Mounting: Side mounts and adjustable sliding clamps
• Dimensions: 356 x 70 x 67 mm (Width x Height x Depth)
• Weight: 1400 g
• Operating temperature: -40°C to +85°C
• Certifications: ECE R10, CE, RoHS
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Terrain Straight 120W work light
• 2 x Side mounts
• 2 x Adjustable sliding clamps
• Mounting screws
• Installation and connection manual (EN/FI/SE/NO/DK)

Installation and Usage Options:

• For machines and vehicles: Suitable for tractors, excavators, ATVs, and other vehicles.
• Close-range lighting: Wide and even beam is ideal for illuminating work areas.
• Versatile mounting: Includes both side mounts and adjustable sliding clamps, allowing installation in various locations.
• Durability in harsh conditions: Suitable for operation in extreme temperatures and weather conditions.

👉 Purelux Terrain Straight 120W – Compact, durable, and extremely efficient work light that provides an even and wide beam even in the toughest conditions.
