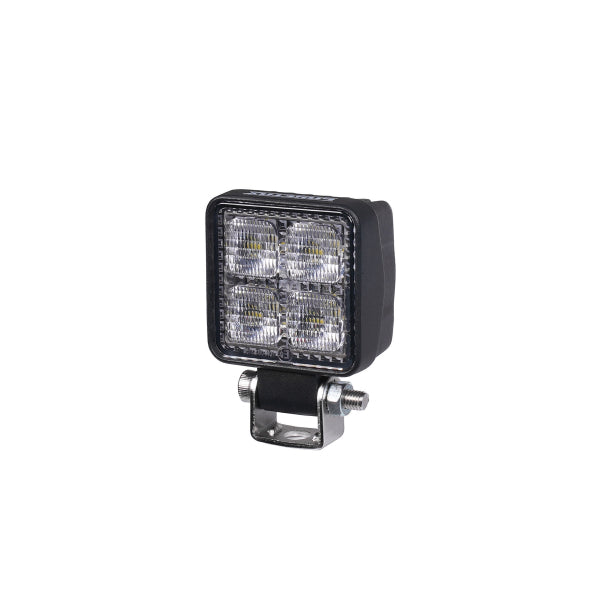

Purelux Terrain Black Mini 12W, Wide

Extremely compact and stylish work light that offers a wide light pattern and is ideal for installation in tight spaces. Perfect for concealed mounting and ensures reliability even in the most demanding conditions.

Main Features:

• Luminous Flux: Measured 920 lm.
• Beam Range: 39 m (@ 1 lux).
• Beam Type: Wide beam angle 90°.
• Color Temperature: 6000K – cool white light for maximum visibility.

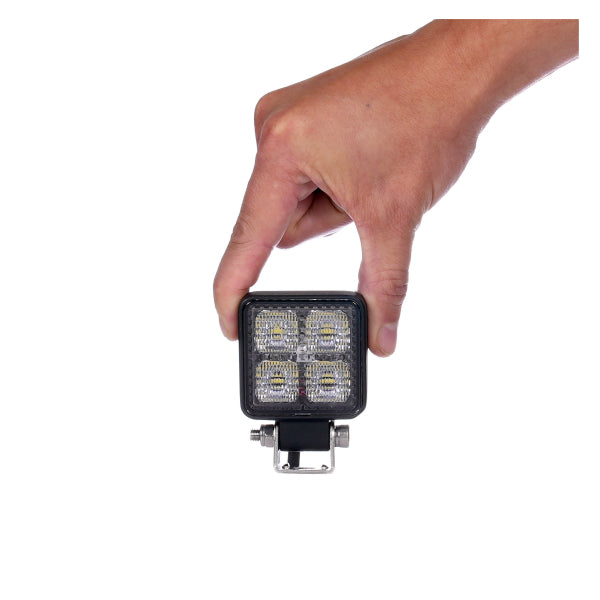

• Compact Size: Only 53 x 53 mm – ideal for installation in narrow and confined spaces.
• Materials: Durable aluminum housing and shatterproof polycarbonate lens.
• Mounting: Stainless steel mounting bracket ensures secure and stable attachment.
• Operating Voltage: Wide operating voltage range 10–30 V – suitable for both 12V and 24V systems.
• Protection Class: IP67 – dust and waterproof.
• Durability: Vibration and shock-resistant construction.
• Warranty: 24 months.

Technical Data:

• Operating Voltage: 10–30 V (DC)
• Current Consumption: 0.75 A @ 12V / 0.43 A @ 24V
• Rated Power: 12 W
• Measured Power: 10.4 W
• Luminous Flux: 920 lm
• Beam Range: 39 m (@ 1 lux) / 77 m (@ 0.25 lux)
• Color Temperature: 6000K
• Beam Angle: 90°
• LEDs: 4 x 3W Osram
• Protection Class: IP67
• Operating Temperature: -40°C to +60°C
• Cable Length: 50 cm (direct cable, without connector)

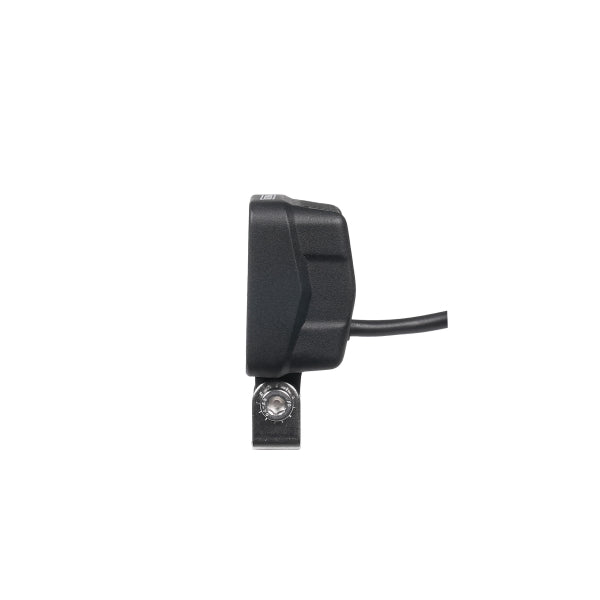

• Dimensions: 53 x 53 x 32 mm (Width x Height x Depth)
• Height with Mounting Bracket: 75 mm
• Weight: 180 g
• Certifications: CE, RoHS
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Terrain Black Mini work light
• 1 x Mounting bracket
• 1 x Mounting screw
• Installation and user manual (EN/FI/SE/NO)

Applications:

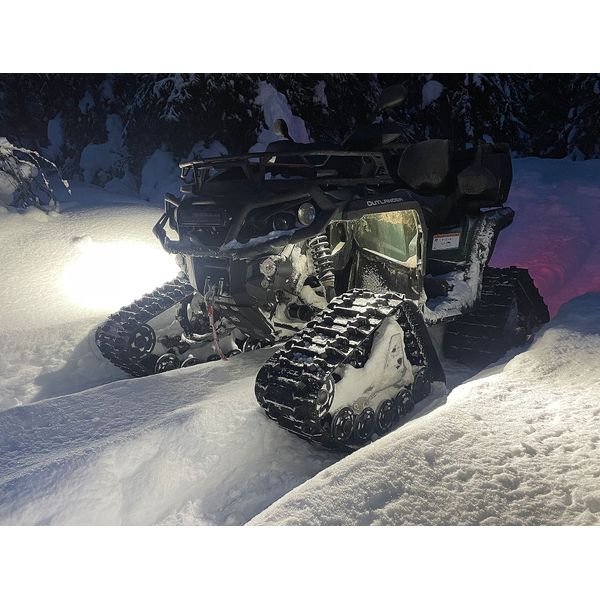

• Vehicles and Industrial Machines: Excavators, tractors, ATVs, UTVs, and forklifts.

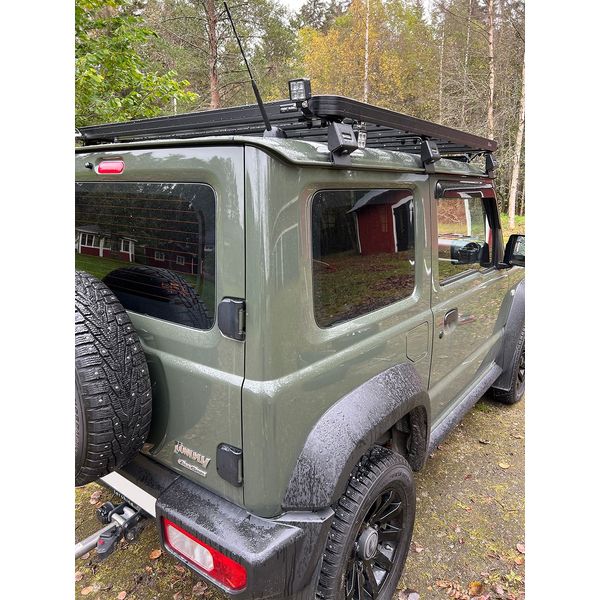

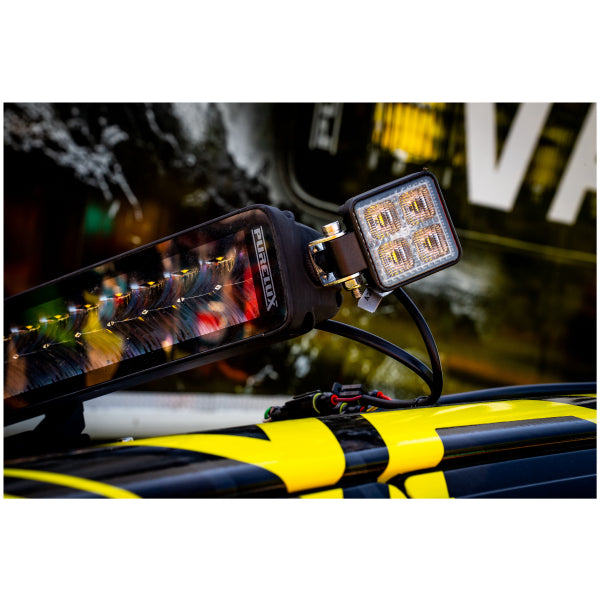

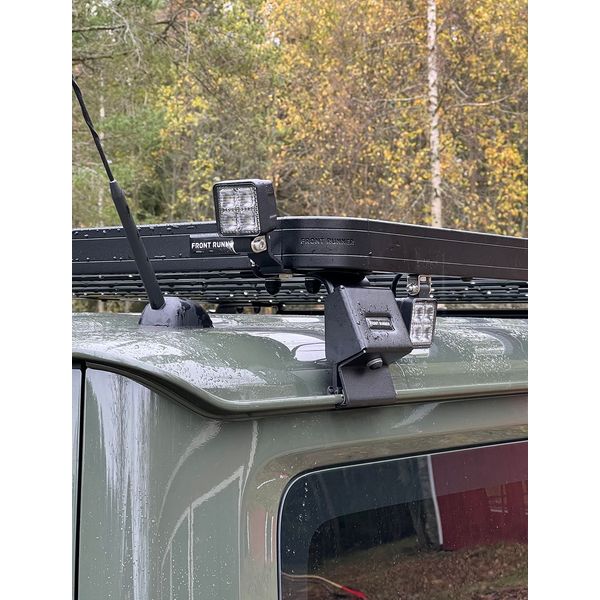

• Concealed Mounting: Perfect for installation on the front of machines, roof, or under chassis.
• Reverse Light: Effective solution for reversing with limited visibility.

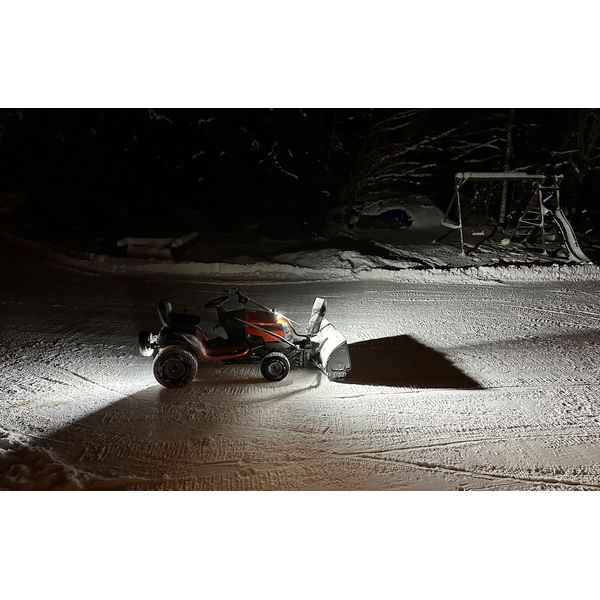

• Work Areas and Construction Sites: Efficiently illuminates work zones and hard-to-reach places.
• Special Applications: Ideal for concealed or discreet installations.
