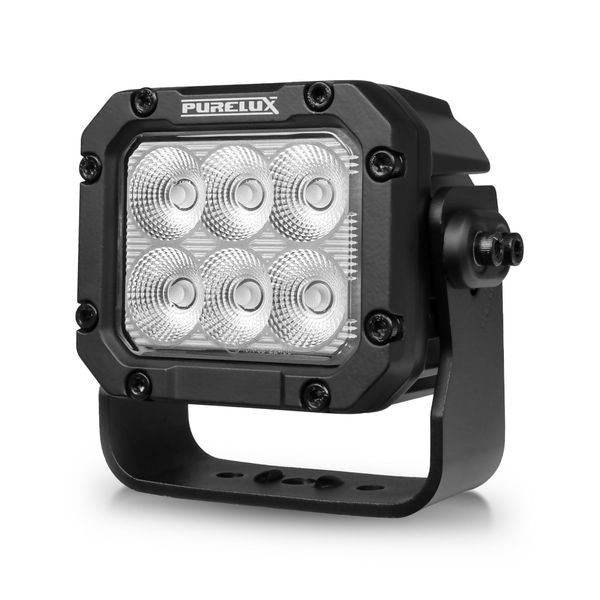

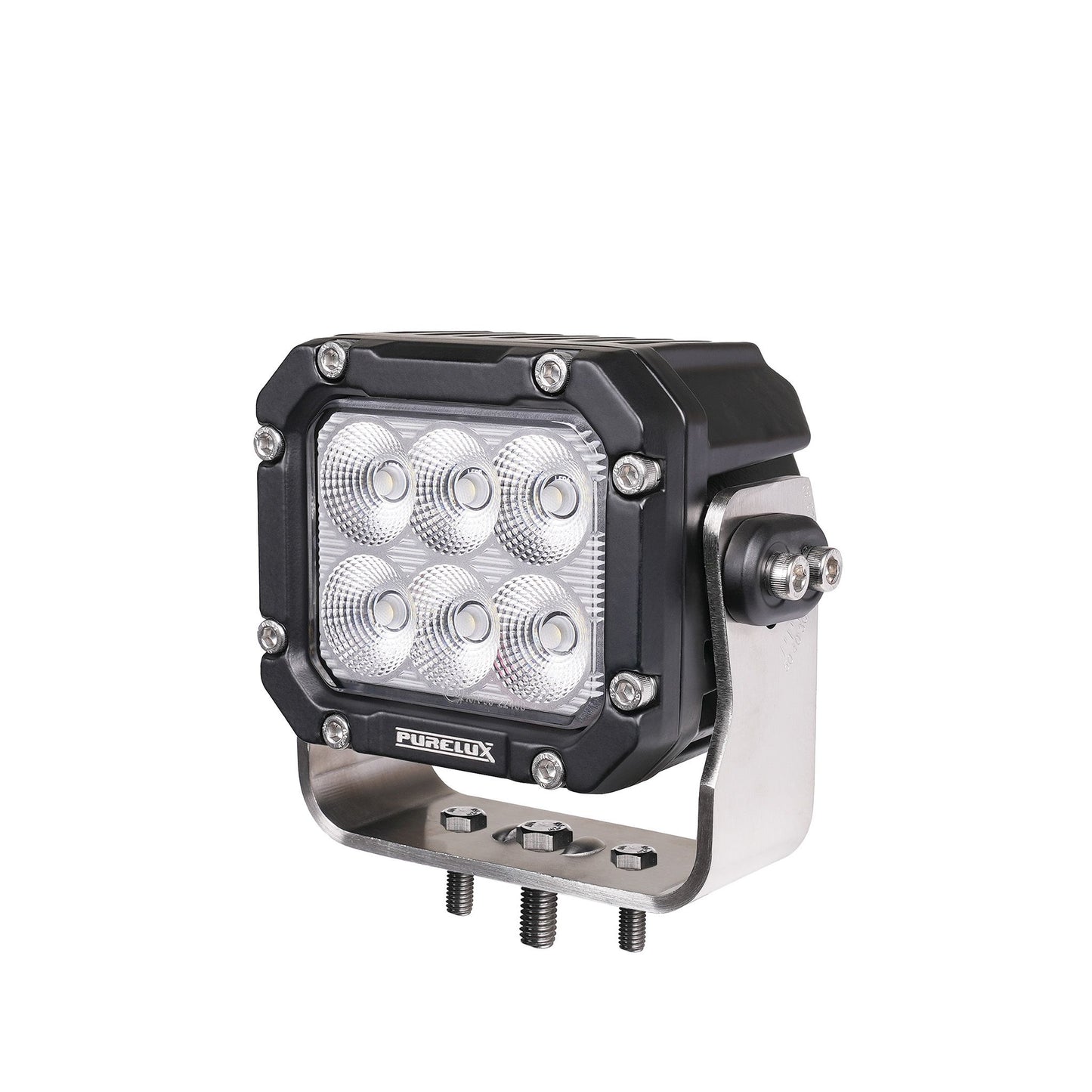

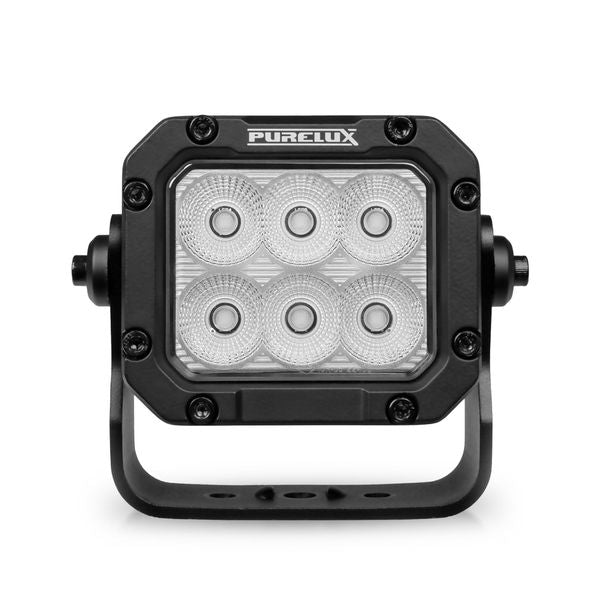

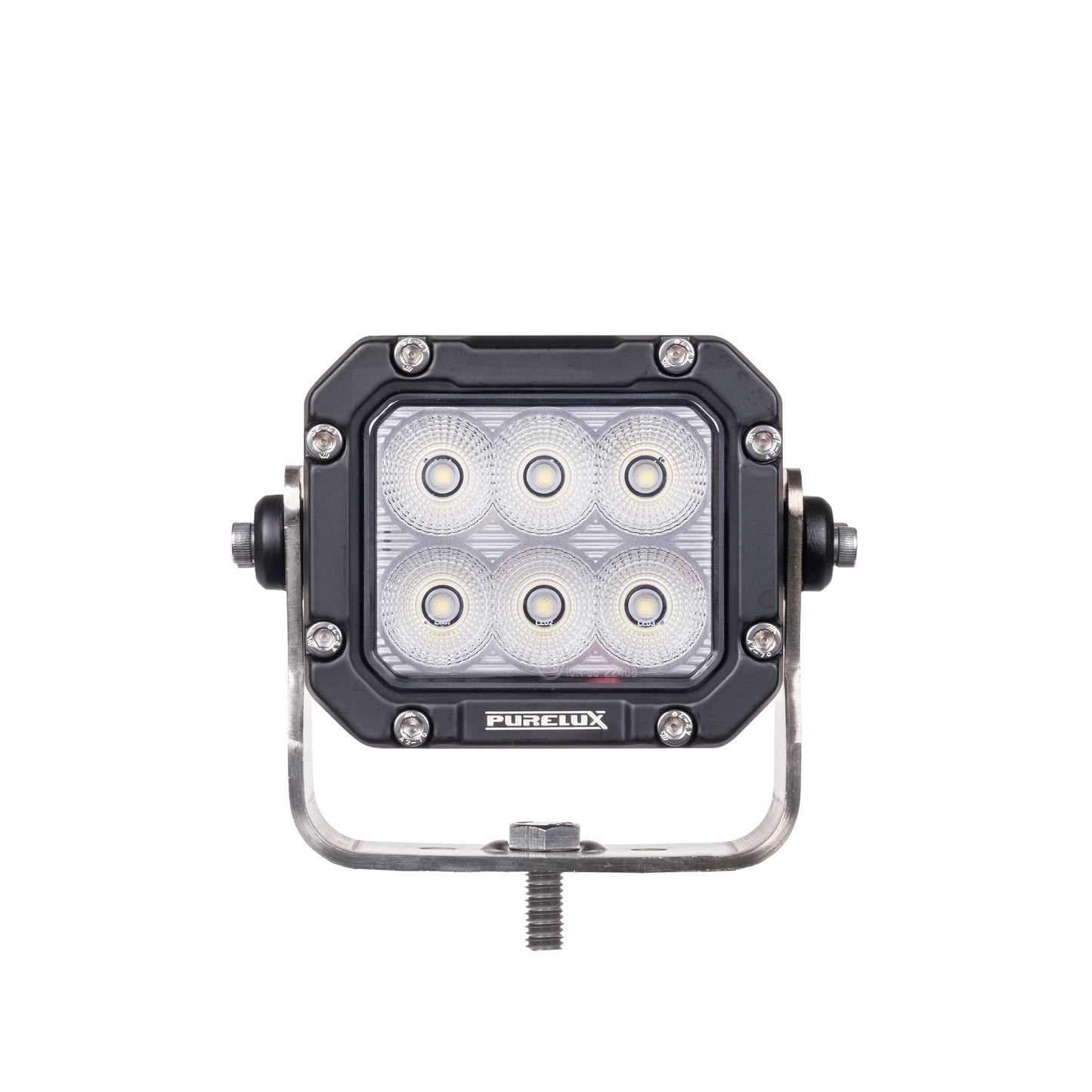

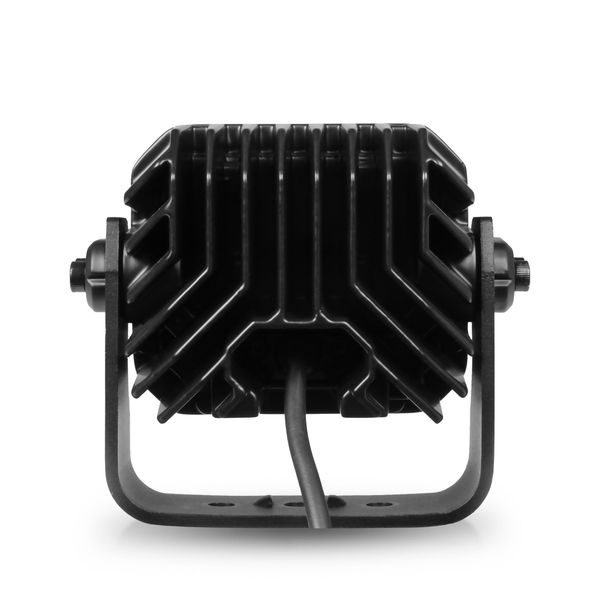

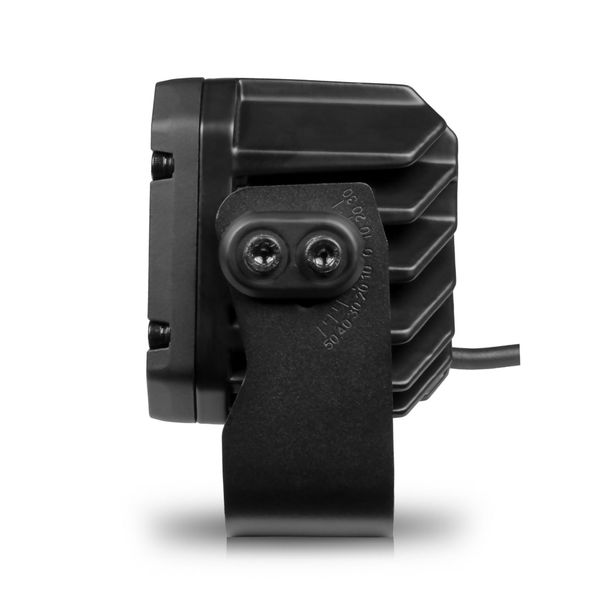

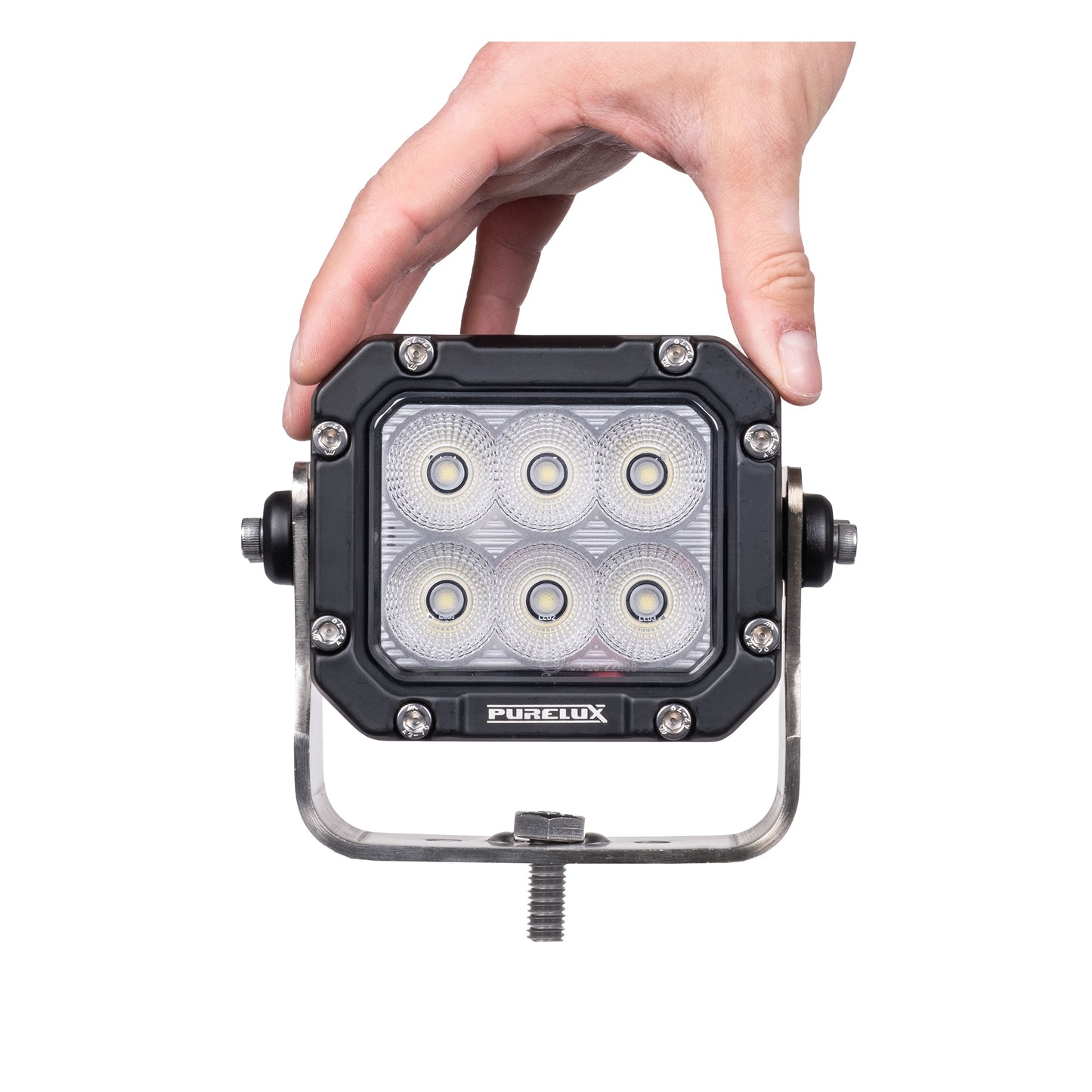

Purelux Square 60 HD, 60W / Wide

Work light designed for professionals, featuring a wide beam, robust construction, and neutral color temperature to ensure efficient illumination even in the toughest conditions.

Main Features:

• Wide beam angle (85°): Uniform and wide light pattern effectively covers the work area, reaching up to 73 meters (@ 1 lux).
• Luminous flux: Measured 4682 lm (manufacturer's theoretical value: 5100 lm).
• Color temperature: 5000K – neutral light that reduces eye fatigue and ensures clear visibility even during prolonged work.
• IP69K Protection class: Fully dust- and waterproof, resistant to high-pressure steam cleaning.
• Corrosion-resistant construction: Black powder-coated aluminum frame that withstands UV radiation and weather effects.
• Polycarbonate lens: Nearly unbreakable and scratch-resistant.
• Durable stainless steel mounting bracket: Secure and stable installation even under strong vibrations (10G).
• Radio interference protection: Complies with CISPR25 Class 4 and ECE R10 standards.
• Operating voltage range (9–32V): Suitable for both 12V and 24V electrical systems.
• Wide range of applications: Ideal for smaller work machines, excavators, tractors, and heavy equipment bases.
• Warranty: 24 months.

Technical Specifications:

• Power supply voltage: 9–32 V (DC)
• Current consumption: 3.66A @ 12V / 1.83A @ 24V
• Measured power: 44 W
• Luminous flux: 4682 lm (measured)
• Beam range: 73 m (@ 1 lux) / 146 m (@ 0.25 lux)
• Color temperature: 5000K (measured: 4952K)
• Protection class: IP69K
• Radio interference protection: ECE R10, CISPR25 Class 4

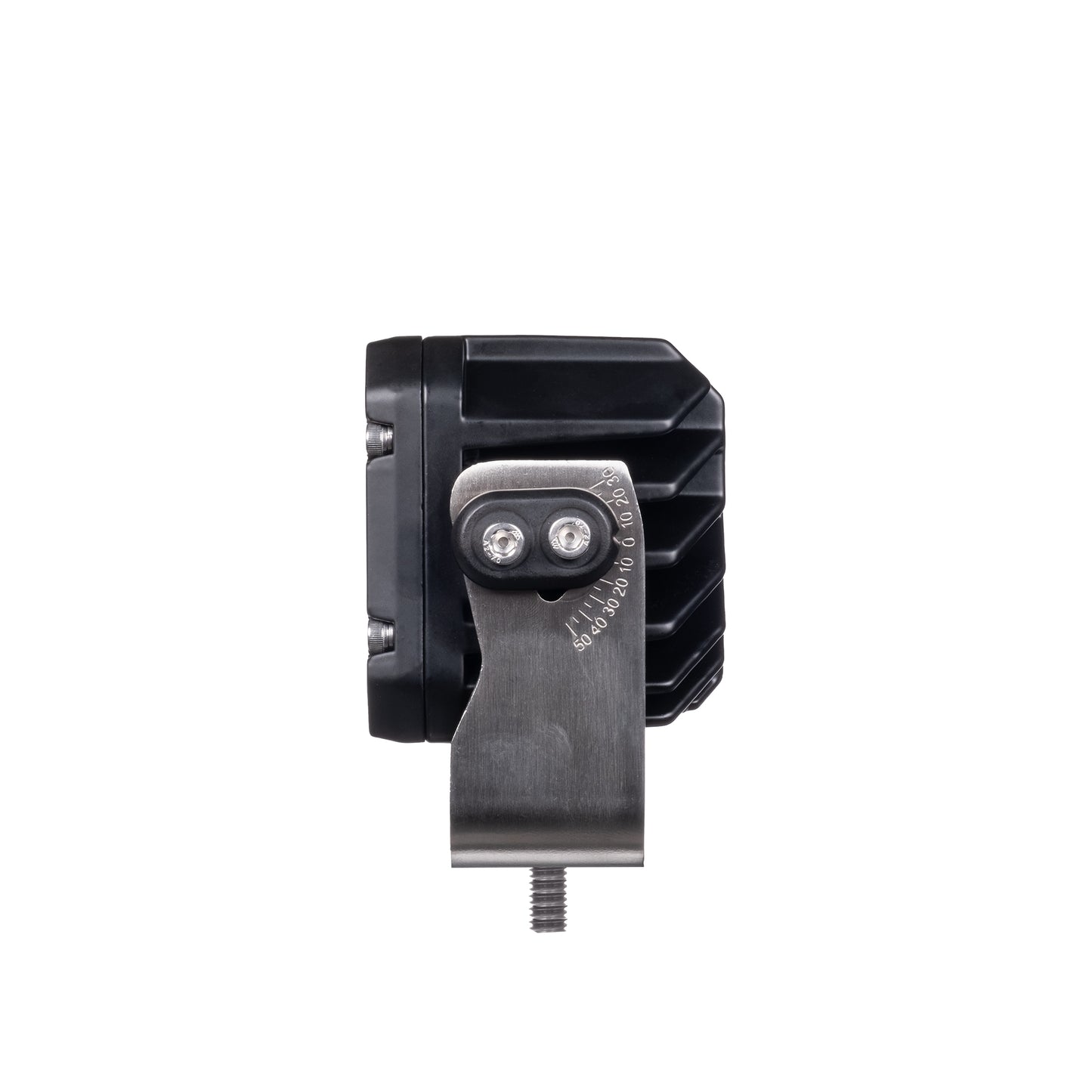

• Mounting: Strong stainless steel bracket

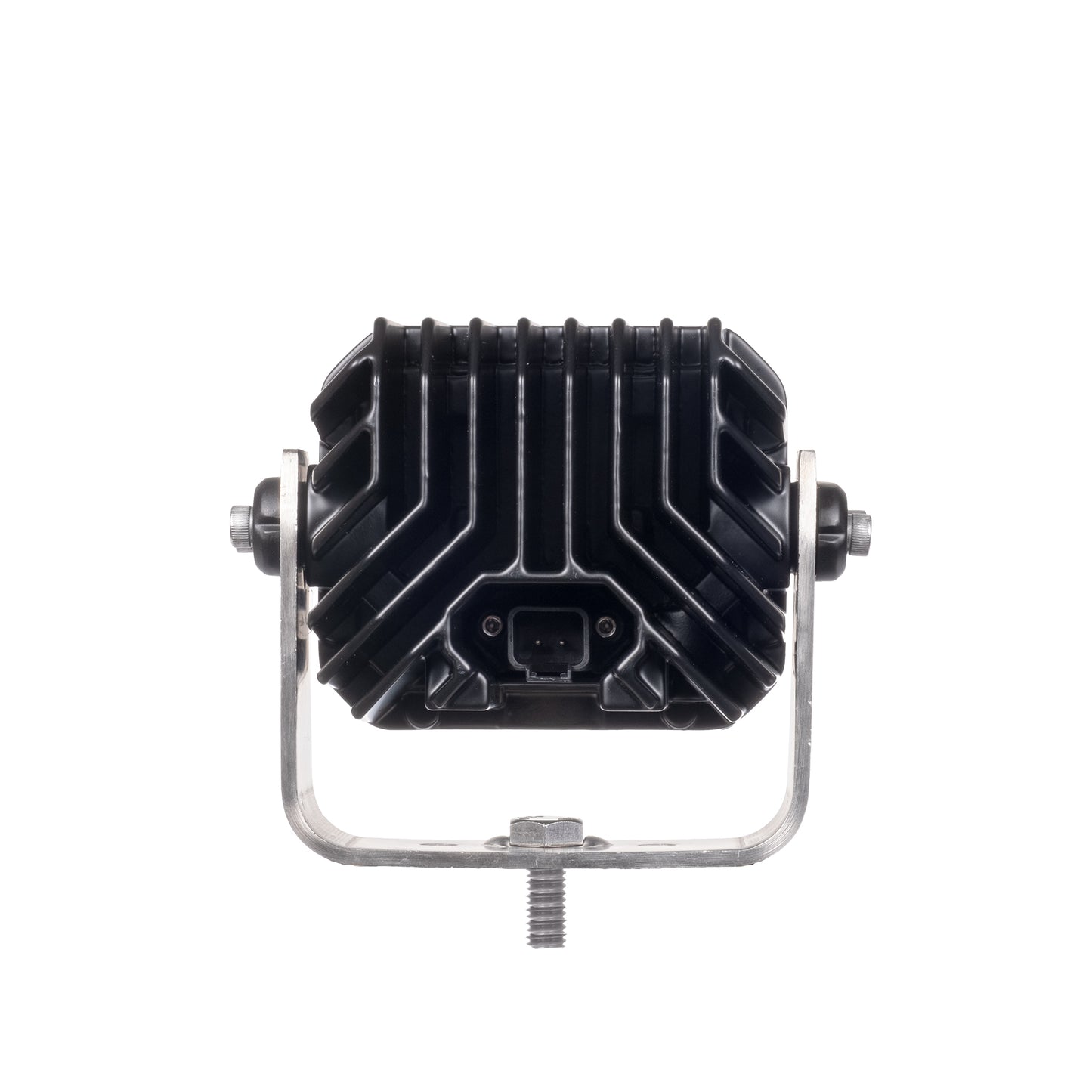

• Connector: DT-2
• Cable length: 50 cm
• Dimensions: 144 x 95 x 83 mm (Width x Height x Depth)
• Height with mounting bracket: 123 mm
• Weight: 1500 g
• Operating temperature: -45°C to +85°C
• Certifications: EMC ECE R10, CISPR25 Class 4, RoHS
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Square 60 HD Gen2 work light
• 1 x Durable stainless steel mounting bracket
• 1 x Mounting bolt (M10)
• 1 x Power cable with DT-2 connector (50 cm)
• 1 x Connector socket
• 1 x Installation and connection manual (EN/FI/SE/NO/DK)

Applications:

• Excavators and tractors: Stable installation even under intense vibration.
• Work machines and construction equipment: Wide beam ensures uniform visibility in the immediate surroundings.
• Trucks and heavy equipment: Suitable for mounting on machine bases, cabins, and booms.
• Vehicle exterior lighting: Durable construction and weather resistance allow installation in extreme conditions.

👉 Purelux Square 60 HD Gen2 – Small but powerful work light that provides a uniform and wide light pattern, offering reliability and durability even in the most demanding environments.
