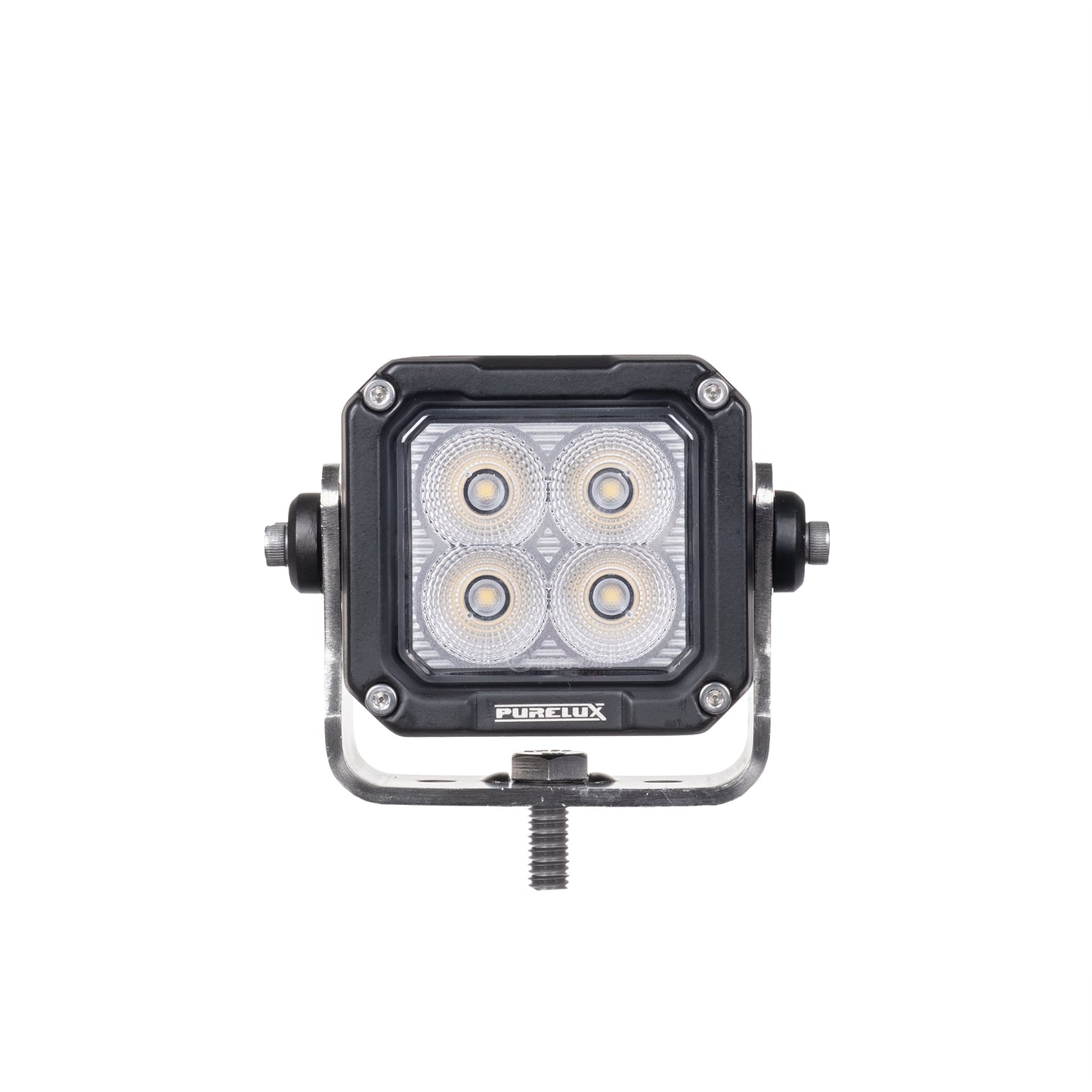

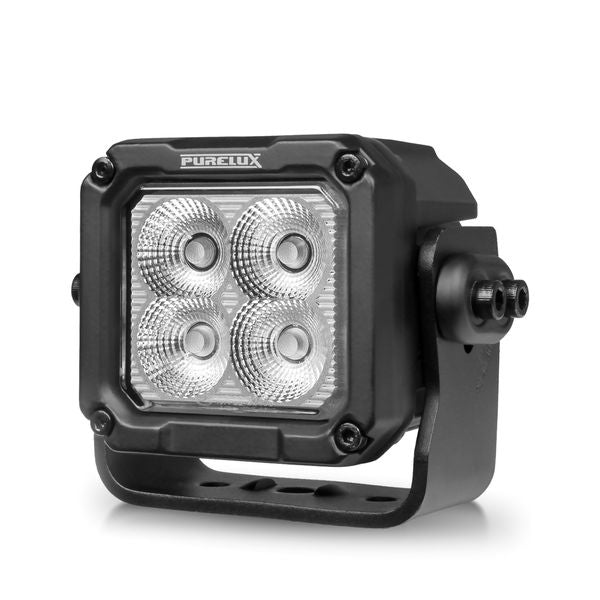

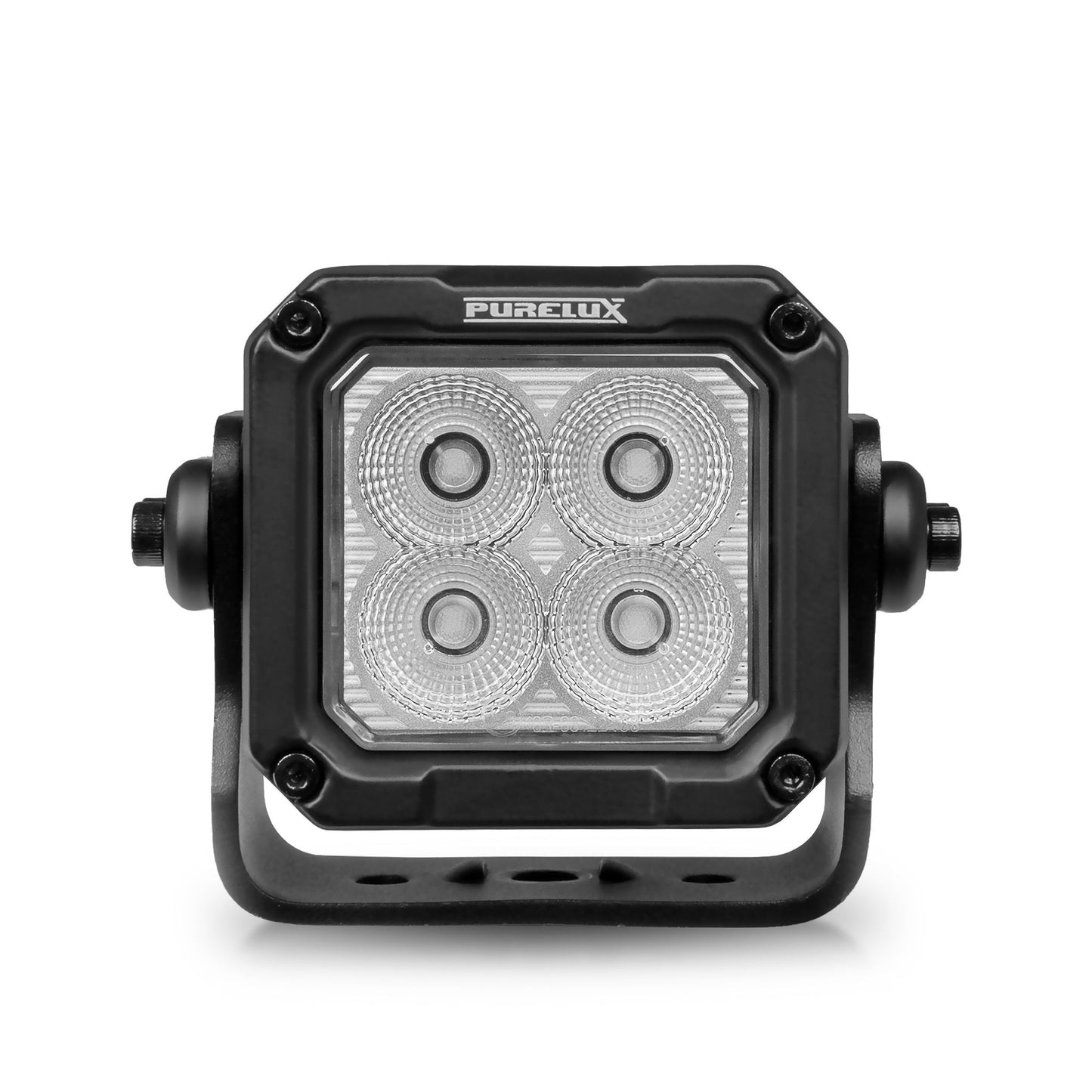

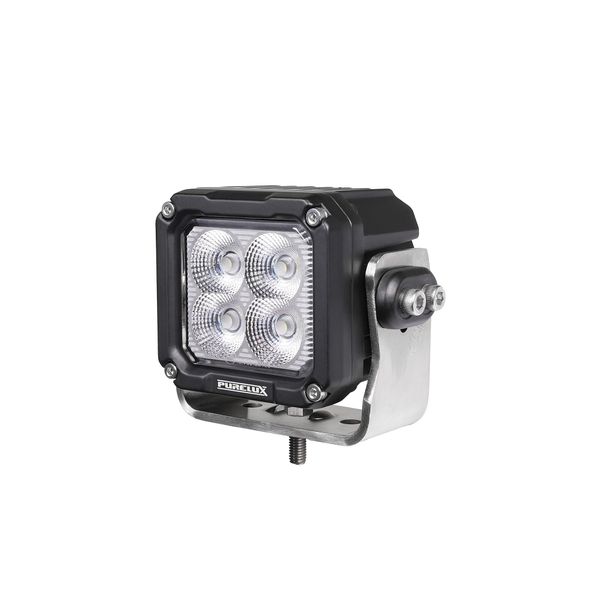

Purelux Square 40 HD, 40W / Wide

Compact and durable work light with a wide beam and high luminous flux, ideal for heavy machinery, excavators, tractors, and other work vehicles. Its small size and power make it the perfect solution for limited installation spaces.

Main Features:

• Wide beam angle (85°): Uniform light pattern that effectively covers the immediate surroundings without dark spots.
• Luminous flux: 2954 lm (measured)
• Beam range: 71 m (@ 1 lux)
• Neutral color temperature (5000K): Reduces eye fatigue and ensures precise detail differentiation even during prolonged use.

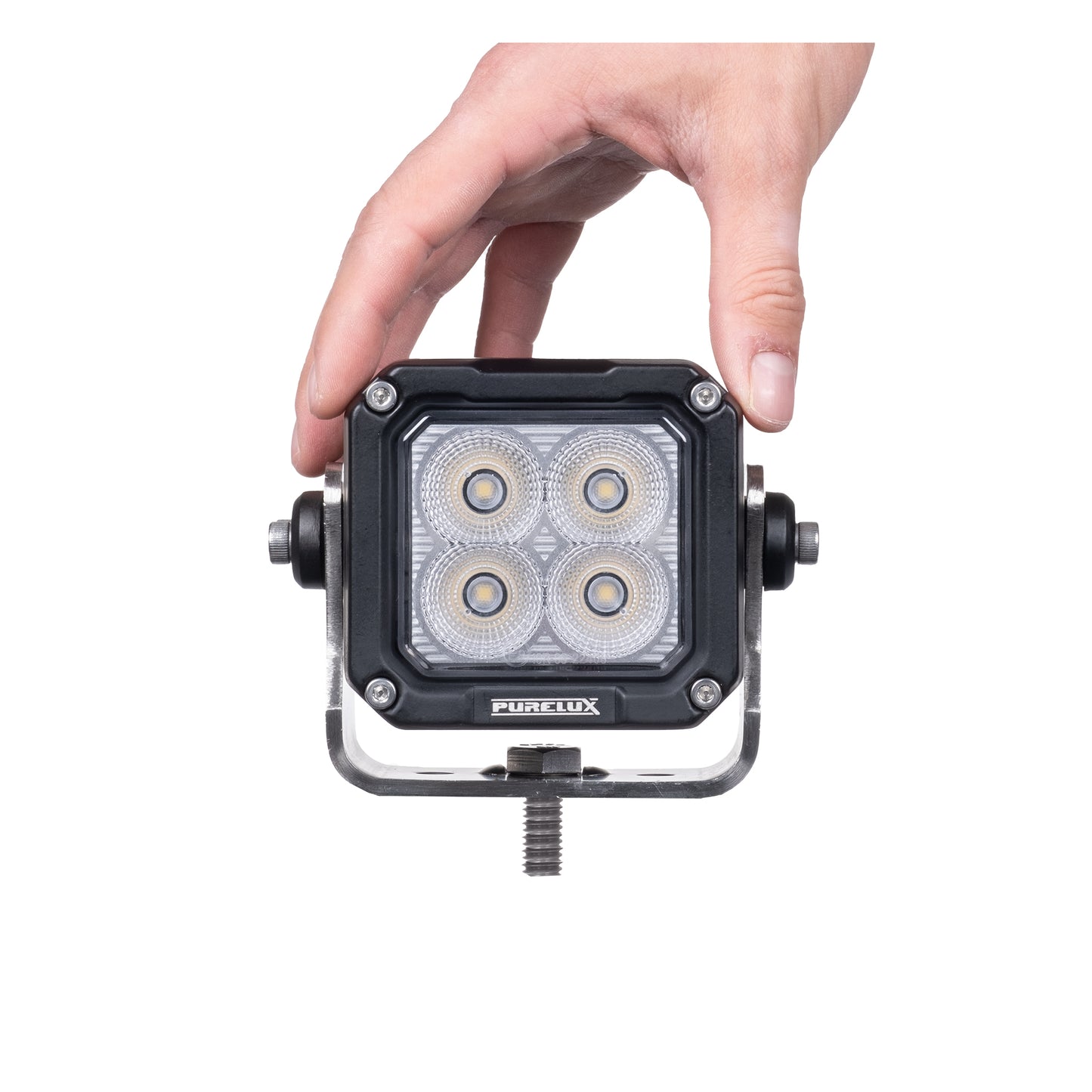

• Compact design: Perfectly suited for small and tight installation spaces.
• Extremely durable construction: Powder-coated aluminum housing and virtually unbreakable polycarbonate lens.
• IP69K Protection rating: Dust-, water-, and steam-proof. Suitable for operation in extreme weather conditions.

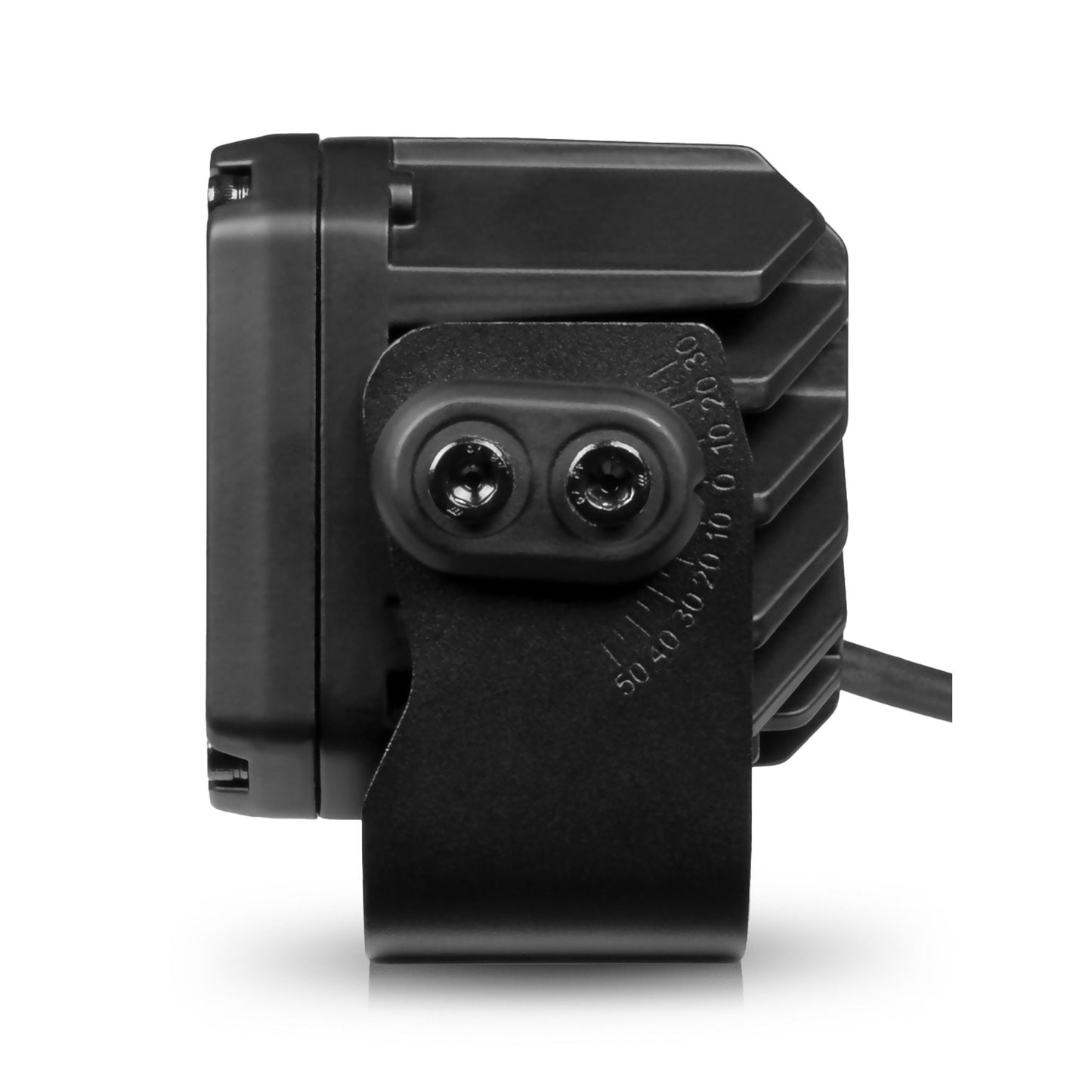

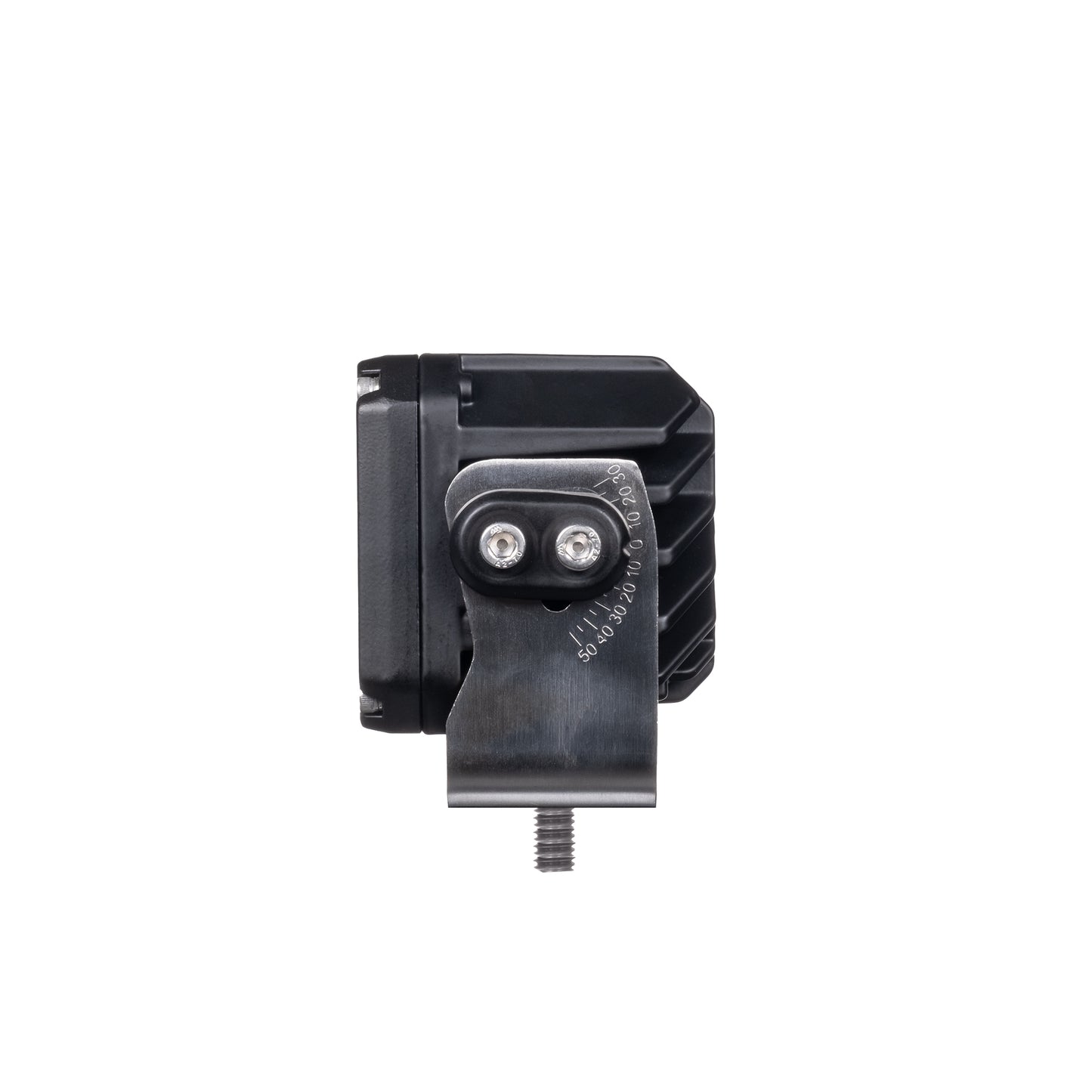

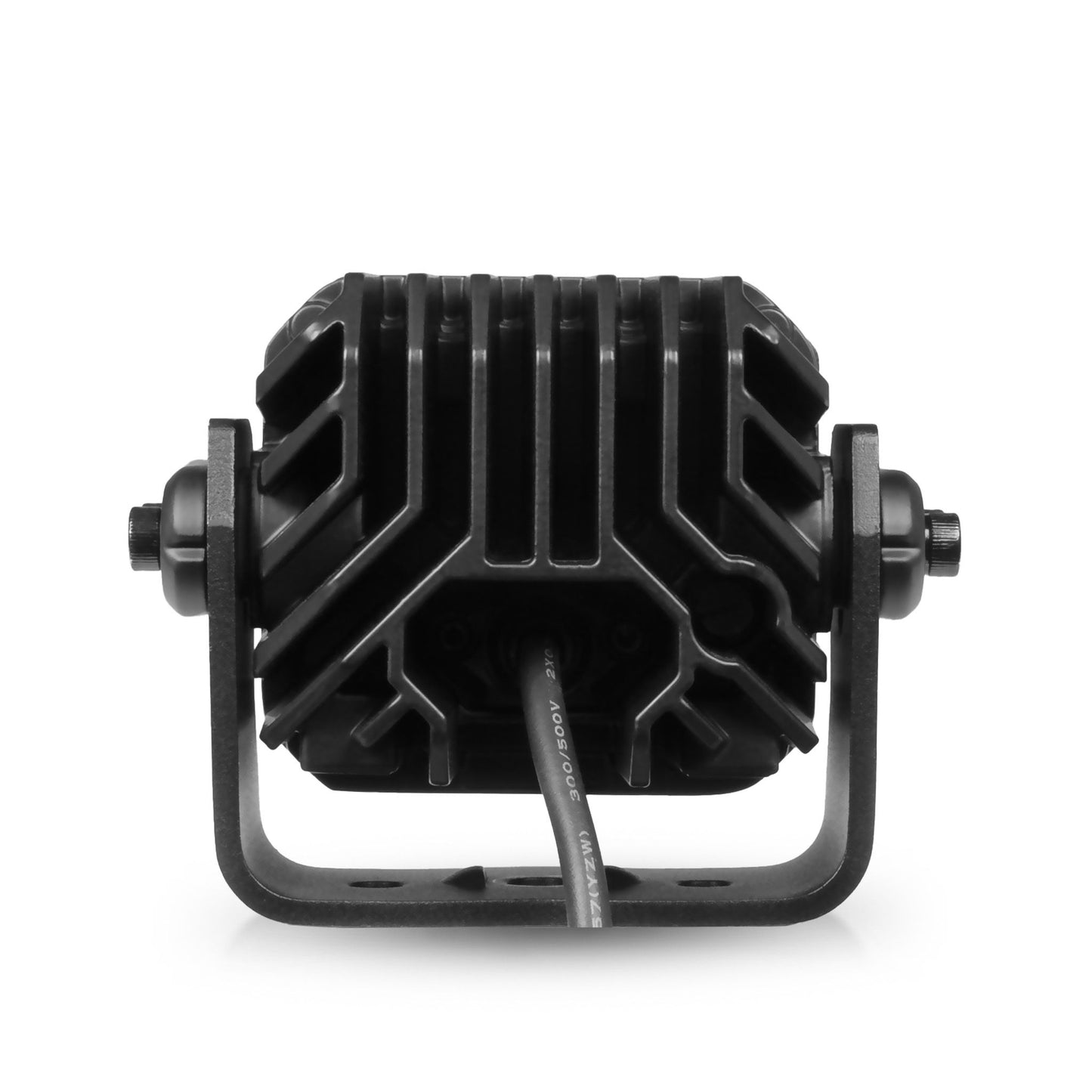

• Stable mounting bracket: Stainless steel mounting bracket ensures strong and vibration-resistant installation.
• Radio interference protection: Complies with CISPR25 Class 4 and ECE R10 standards.
• Wide operating voltage range (9–32V): Compatible with both 12V and 24V systems.

Technical Specifications:

• Operating voltage: 9–32 V (DC)
• Current consumption: 2.41A @ 12V / 1.2A @ 24V
• Measured power: 29 W
• Luminous flux: 2954 lm (measured)
• Beam range: 71 m (@ 1 lux) / 142 m (@ 0.25 lux)
• Color temperature: 5000 K (measured: 5098 K)
• Protection class: IP69K
• Mounting: Strong stainless steel bracket

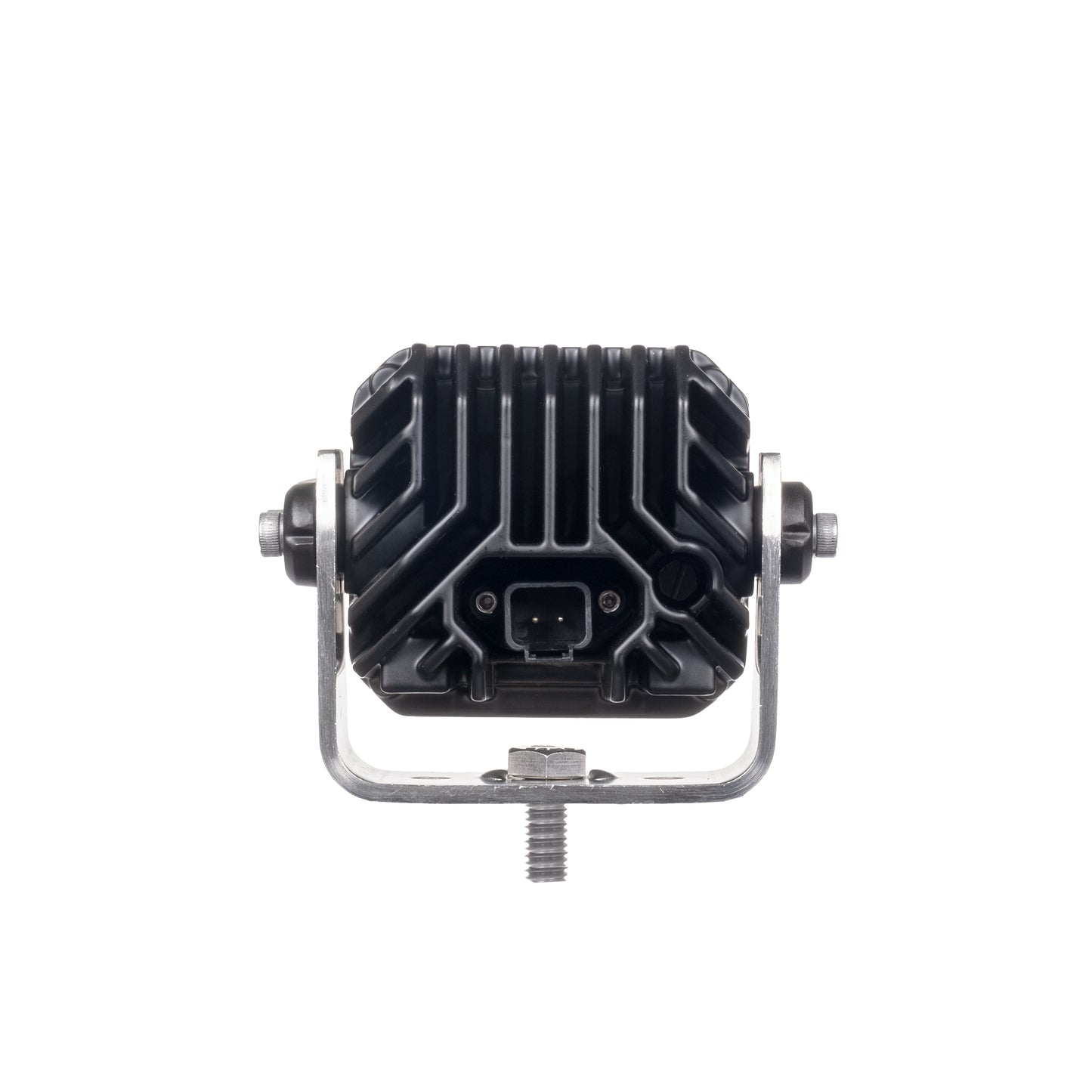

• Connector: DT-2
• Cable length: 50 cm
• Dimensions: 120 x 82 x 77 mm (Width x Height x Depth)
• Height with bracket: 96 mm
• Weight: 1100 g
• Operating temperature: -45°C to +85°C
• Certifications: ECE R10, CISPR25 Class 4
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Square 40 HD Gen2 work light
• 1 x Stainless steel mounting bracket
• 1 x Mounting bolt (M10)
• 1 x Rubber seals
• 1 x Power cable with DT-2 connector (50 cm)
• 1 x Connector counterpart
• Installation and connection manual (EN/FI/SE/NO/DK)

Installation and Usage Options:

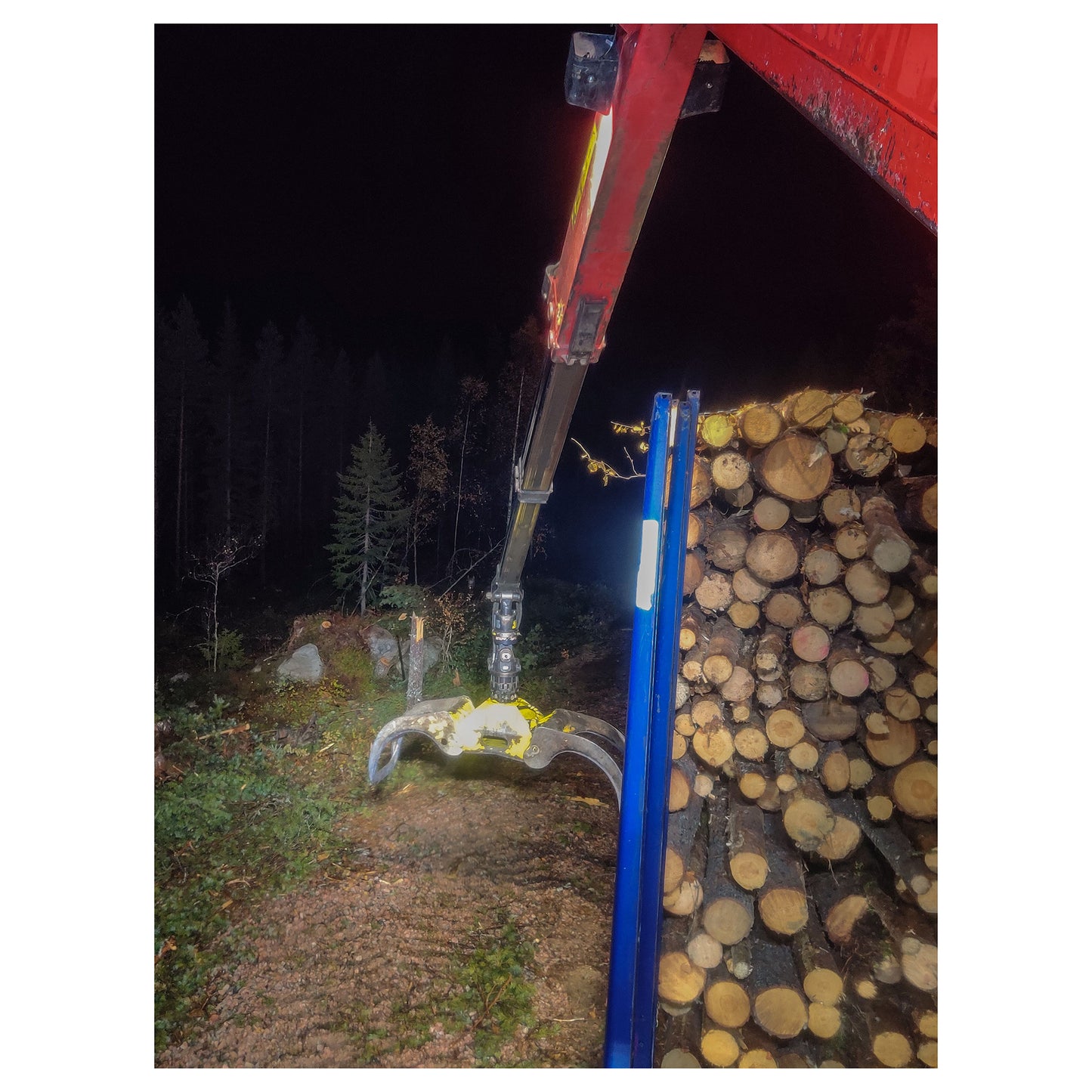

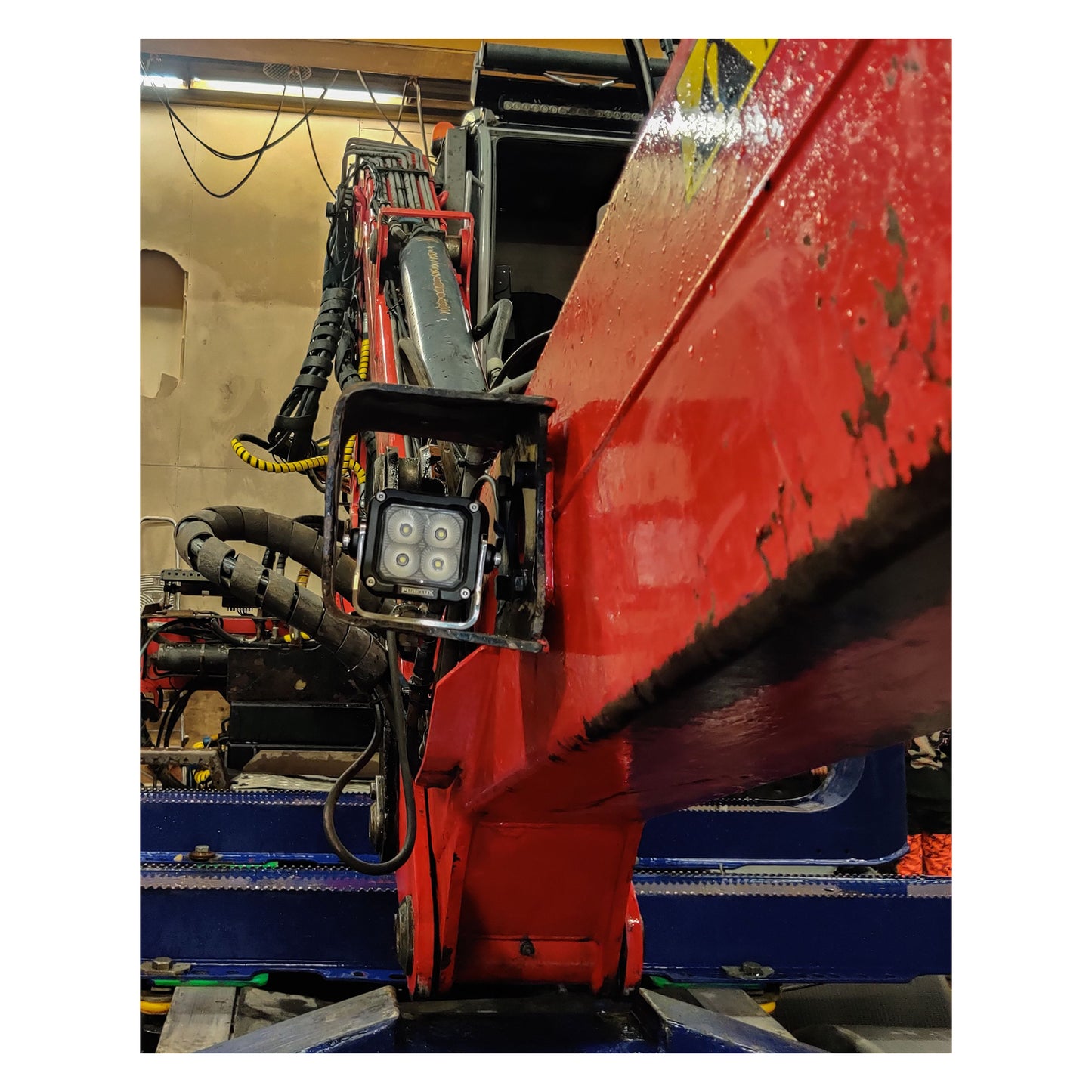

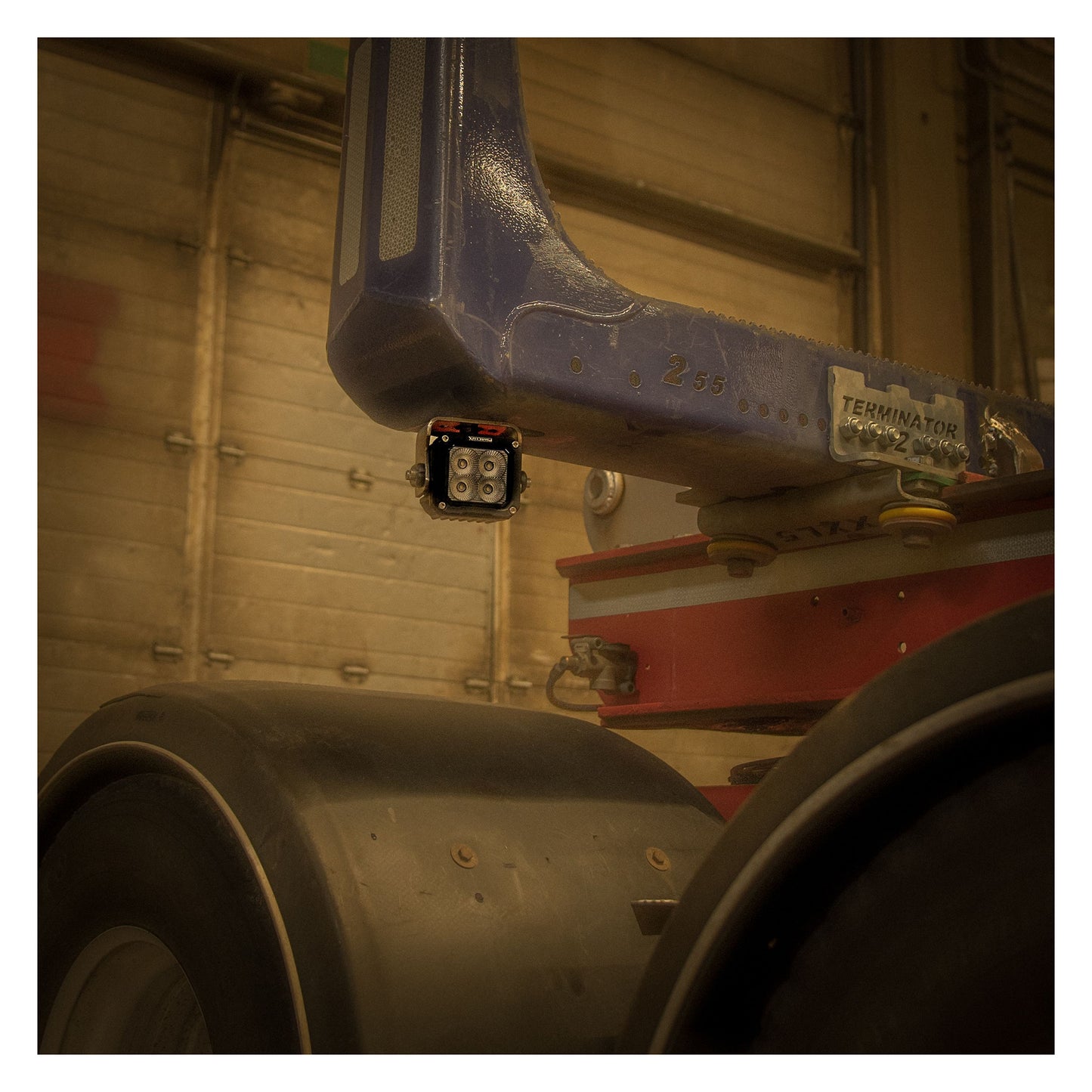

• Excavators and tractors: Perfect for illuminating booms and buckets.
• Heavy industrial machines: Provides clear visibility even in harsh working conditions.
• Work platforms and stairs: Safely illuminates work zones and pathways.
• Versatile mounting: The included mounting bracket allows installation in multiple directions and on various surfaces.

👉 Purelux Square 40 HD Gen2 – Compact, powerful, and extremely durable work light that ensures uniform and wide beam visibility even in the most challenging conditions.
