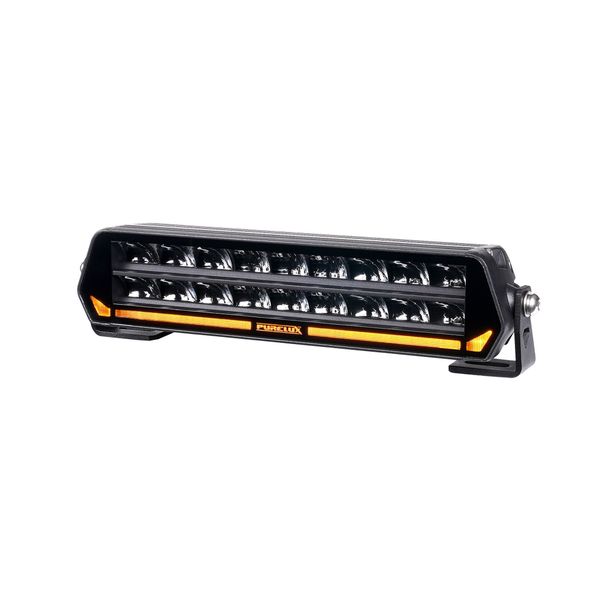

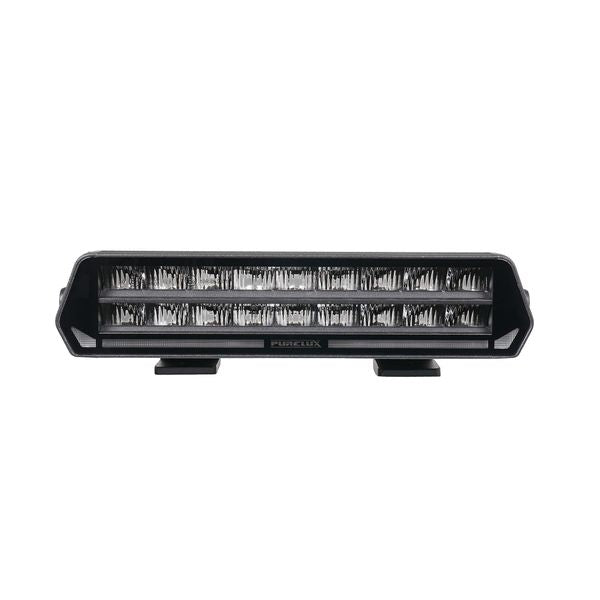

Purelux Panther S300 Gen3 - Straight / 30 cm / 108W / Ref. 30 Kaugtuli

Compact and aerodynamic LED auxiliary light panel offering exceptional performance, two power modes, dual-tone parking light, and a durable frameless design. The ideal choice for any vehicle!

Features:

• Two power modes: Road-legal mode and Purelux PowerBoost® maximum performance.
• Light output: 7561 lm (PowerBoost®) / 4852 lm (road-legal mode).
• Beam distance: 481 m @ 1 lux (PowerBoost®) / 390 m @ 1 lux (road-legal mode).
• Optimal color temperature: 5000K ensures clear and natural light.

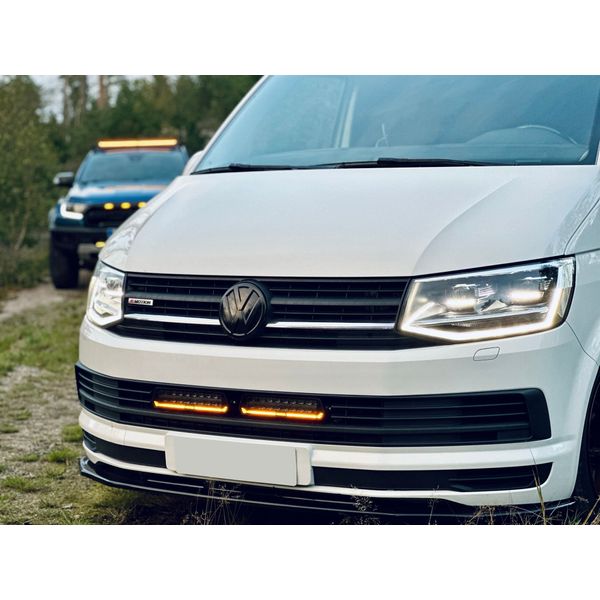

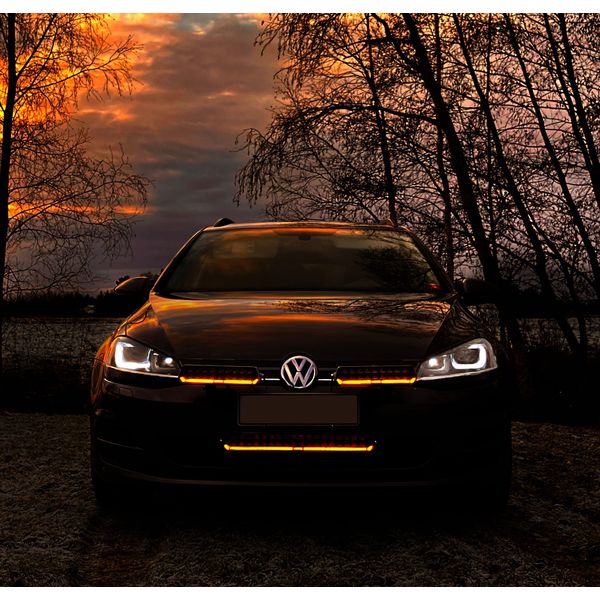

• Dynamic dual-tone parking light: White and orange light.
• Frameless Lexa polycarbonate lens: Durable and weather-resistant design that does not collect dirt, ice, or snow.
• Stylish dark design: Black mounting bolts and tinted optics.
• Combination beam: Wide and long-reaching beam illuminating road edges and forest borders.
• Memory function: Retains the last used power mode.
• Radio frequency interference protection: Complies with ECE R10 standard.
• Easy installation: DT-2 connector and width-adjustable lower mounting brackets.

Technical specifications:

• Operating voltage: 9–36 V (DC)
• Power: 108 W (nominal power)
• Current consumption:
  • PowerBoost®: 4.66A @ 24V
  • Road-legal mode: 2.29A @ 24V
• Luminous flux:
  • PowerBoost®: 7561 lm (measured)
  • Road-legal mode: 4852 lm (measured)
• Beam distance:
  • PowerBoost®: 481 m @ 1 lux / 962 m @ 0.25 lux
  • Road-legal mode: 390 m @ 1 lux / 780 m @ 0.25 lux
• Color temperature: 5000K (measured 5026K)
• Protection class: IP69K
• Certifications: ECE R10, R148, R149 (PowerBoost® mode is not allowed in road traffic)
• Connection: DT-2 connector
• Cable length: 50 cm
• Dimensions: 296 x 66 x 70 mm (Width x Height x Depth)
• Height with side mounts: 78 mm
• Height with lower mounting brackets: 81.5 mm
• Weight: 1315 g
• Warranty: 24 months

Included in the package:

• 1 x Purelux Panther S300 Gen3 auxiliary light
• 2 x Width-adjustable lower mounting brackets

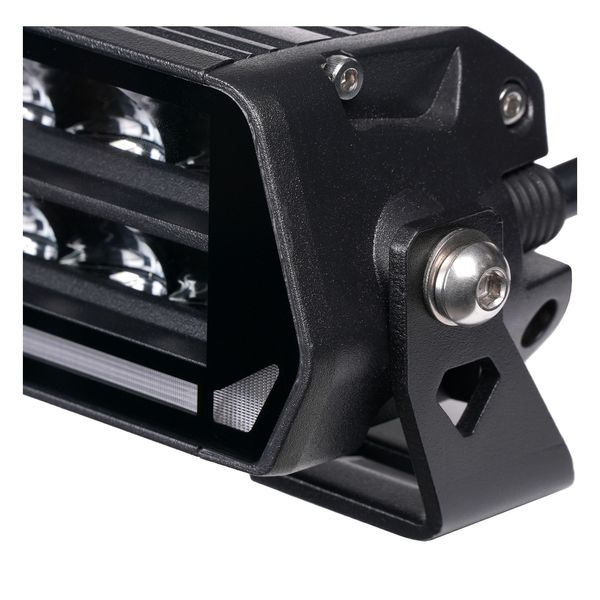

• 2 x Side mounting brackets
• 1 x Power cable socket (DT-2)
• 1 x Connection and installation manual (FI, SE, NO, DK, EN)

Beam characteristics:

• Combination beam: Wide horizontal beam and a long-reaching center point.
• Vertical cutoff: Prevents light scatter in irrelevant directions.
• Neutral color temperature (5000K): Reduces eye fatigue and improves visibility in various weather conditions.

Installation instructions:

1. Power connection: Connect the DT-2 plug to the auxiliary light.
2. Parking light: Yellow wire for orange parking light, white wire for white parking light.

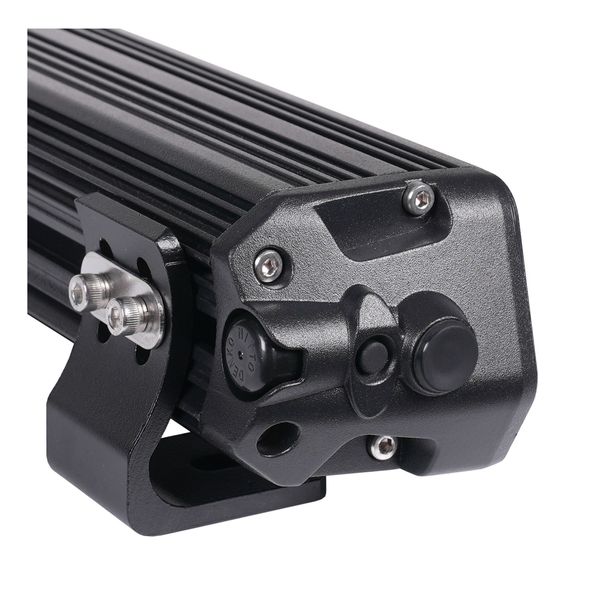

3. Mode switching: Use the integrated button to switch modes.
4. Mounting: Use adjustable brackets to optimize installation.

👉 The Purelux Panther S300 Gen3 delivers exceptional performance, stylish design, and reliability in a compact size – the perfect lighting solution for any vehicle!
