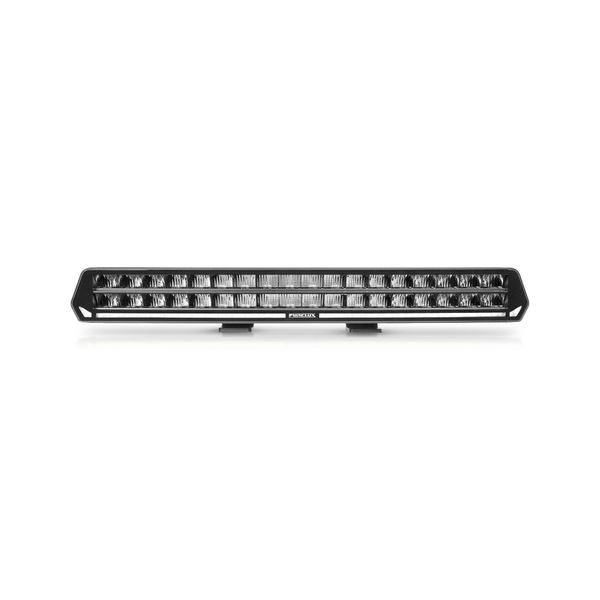

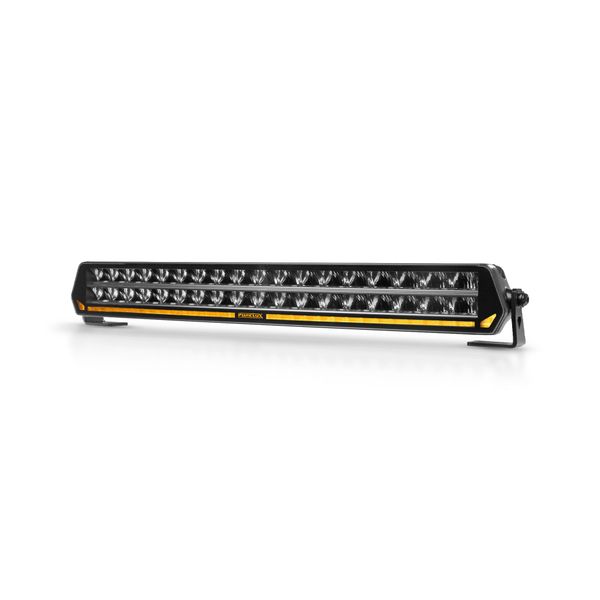

Purelux Panther C540 - Kumer / 54 cm / 216W / Ref. 25

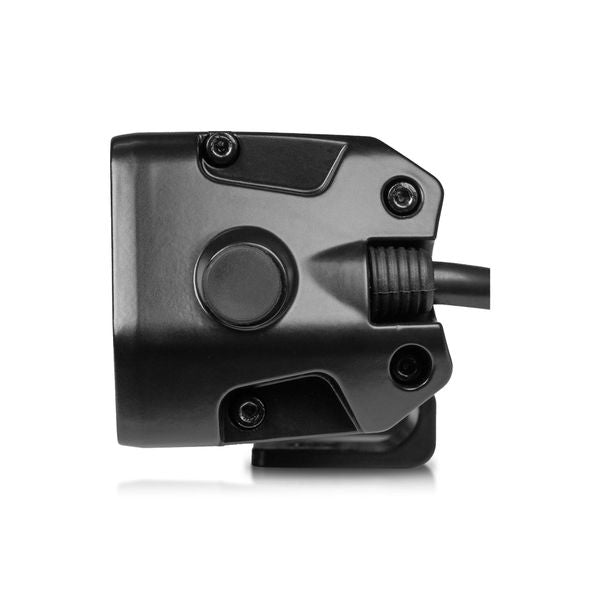

Purelux Panther C540 is a curved LED auxiliary light designed specifically for passenger cars, offering a stylish appearance, powerful illumination, and a wide light pattern. The light has two operating modes: highway mode and PowerBoost® mode, which can produce up to 16,332 lumens and reach 607 meters (1 lux). Switching modes is simple by pressing the button on the light housing. The curved design illuminates widely sideways, effectively lighting road edges and forest margins.

Advantages:

• PowerBoost® mode for maximum light output.
• Wide light pattern thanks to the curved design.
• 5000K neutral color temperature reduces eye fatigue and ensures better visibility at night.
• Durable construction: IP69K protection class, impact-resistant Lexa polycarbonate lens, and strong aluminum frame.
• Easy installation thanks to adjustable mounting feet and pre-installed mounting points for stabilizers.

Technical specifications:

• Brand and model: Purelux Panther C540
• Intended use: Auxiliary lighting for passenger cars, SUVs, and work machines
• LEDs: 36 x 6 W
• Operating voltage: 9–36 V (DC)
• Power:
  • PowerBoost®: 199 W @ 24 V (measured)
  • Highway mode: 26 W @ 24 V (measured)
• Luminous flux:
  • PowerBoost®: 16,332 lm (measured)
  • Highway mode: 2573 lm (measured)
• Beam distance:
  • PowerBoost®: 607 m @ 1 lux
  • Highway mode: 254 m @ 1 lux
• Color temperature: 5000 K (measured 5068 K)

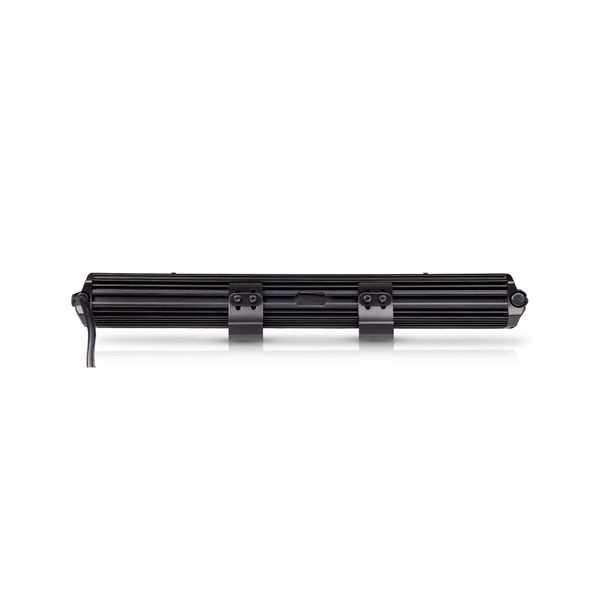

• Mounting: End feet and width-adjustable lower mounts
• Cable: DT-2 connector, parking light wires separate (cable length 50 cm)
• Dimensions: 542 x 66 x 70 mm (width x height x depth)
• Height with mounting feet:
  • End feet: 78 mm
  • Lower mounts: 81.5 mm
• Weight: 2340 g

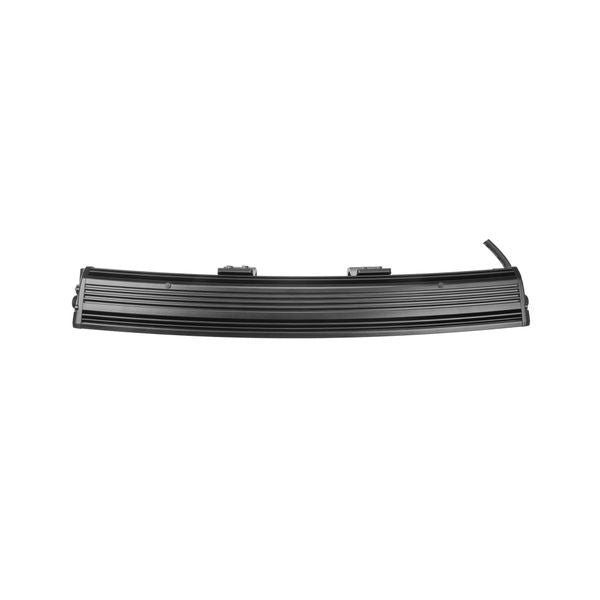

• Curvature radius: 2800 mm
• IP protection class: IP69K
• Certifications: ECE R10, R148, R149*
  • *Highway traffic approval does not apply to PowerBoost® mode
• Warranty: 24 months

Included:

• Purelux Panther C540 LED auxiliary light
• Mounting feet and adjustable lower mounts
• Power cable with DT-2 connector
• Installation and connection manual (FI/SE/NO/DK/EN)
