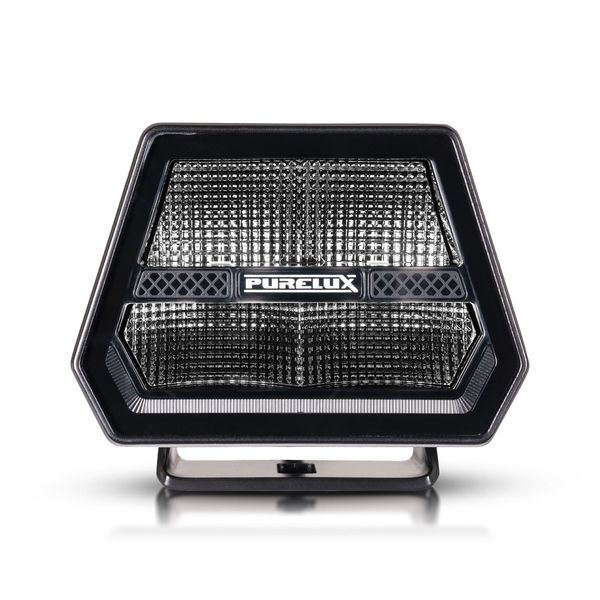

Purelux Panther Alpha 60, 60W, Wide

Next-generation work light offering powerful illumination, dual-tone parking/position light, and two color temperatures (4000K / 5000K). The ideal choice for heavy trucks, excavators, and SUVs!

Features:

• Powerful light output: 4000 lm (theoretical), 3475 lm (measured).
• Two color temperatures: 4000K (warmer tone reduces glare on snow and dust) and 5000K (neutral tone, ideal for general work lighting).
• Combination light beam: Wide horizontal beam and softly defined vertical beam ensure optimal visibility in the work area.

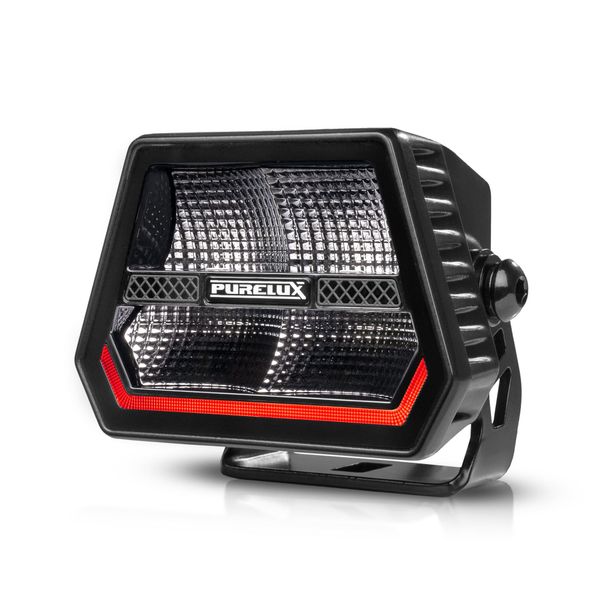

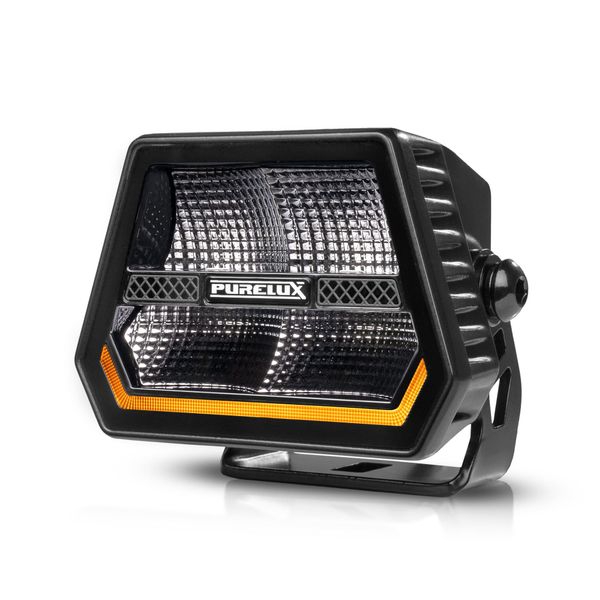

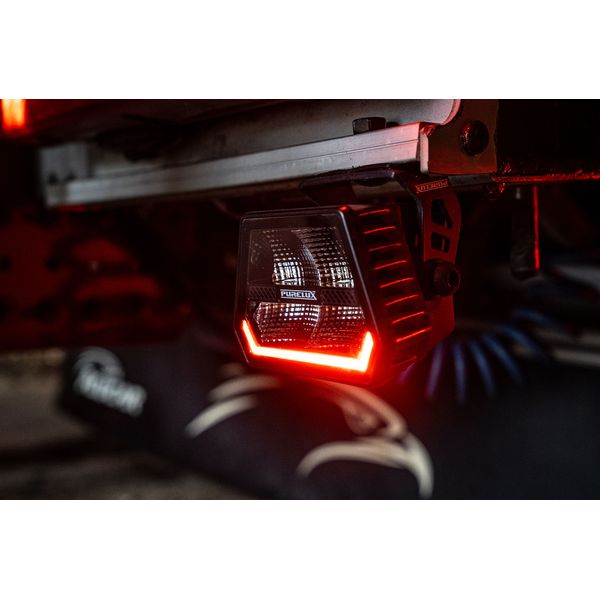

• Dual-tone parking light: Orange or red light provides a stylish and functional solution.

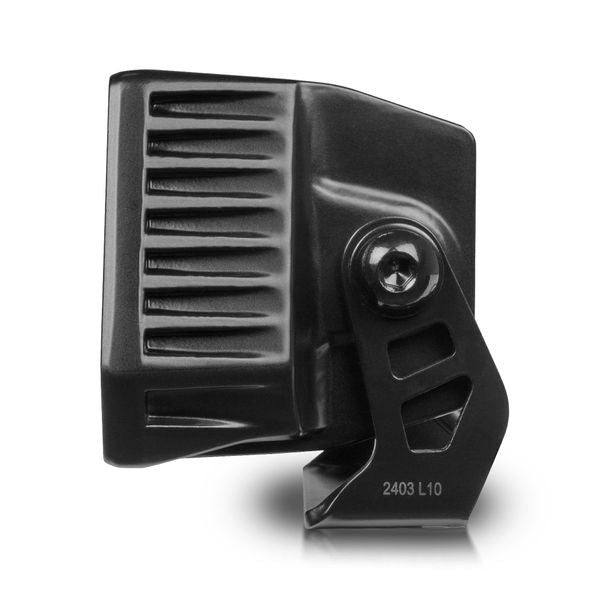

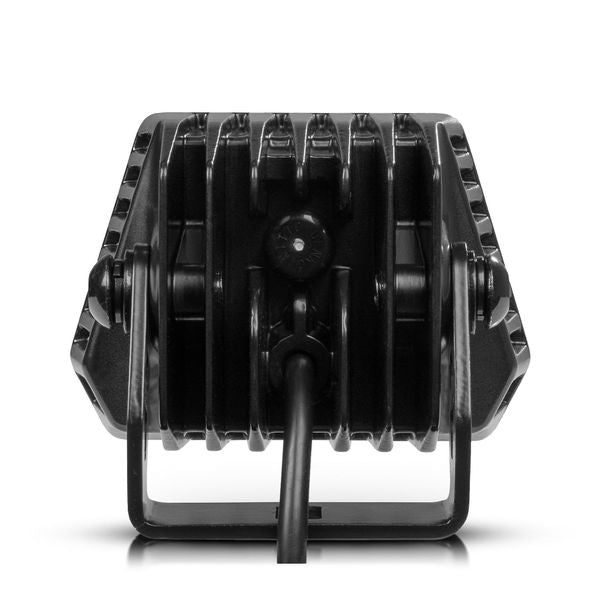

• Built for tough conditions: Aluminum housing and polycarbonate lens ensure durability and longevity.
• IP69K protection rating: Ultimate protection against water, dust, and impacts.
• Intelligent heat management: Prevents overheating during extended use.
• Easy installation: DT-4 connector and included counter plug.
• Compatible with 12V and 24V systems: Wide operating voltage range (9–36V).

Technical specifications:

• Operating voltage: 9–36 V (DC)
• Power: 60 W (theoretical), 41 W (measured)
• Parking light power: 4 W
• Luminous flux: 4000 lm (factory rating), 3475 lm (measured)
• Color temperature: 4000K / 5000K (measured 4998K)
• Protection class: IP69K
• Certifications: ECE R10, CISPR25 Class 3, CE, RoHS
• Connection: DT-4 connector (50 cm cable)
• Dimensions: 116 x 82 x 77 mm (Width x Height x Depth)
• Height with mounting bracket: 96 mm
• Weight: 715 g
• Operating temperature: -40°C to +60°C
• Warranty: 36 months

Included in the package:

• 1 x Purelux Panther Alpha 60 work light
• 1 x Sturdy mounting bracket
• 1 x Mounting bolt
• 1 x Power cable with DT-4 connector (50 cm)
• 1 x Counter plug for connector
• 1 x Installation and user manual (FI, SE, NO, DK, EN)

Additional features:

• Strobe function: The parking light can be switched to warning strobe mode using the Purelux Strobe Controller accessory.

Applications:

• Excavators and heavy machinery: Excellent visibility in the work area.

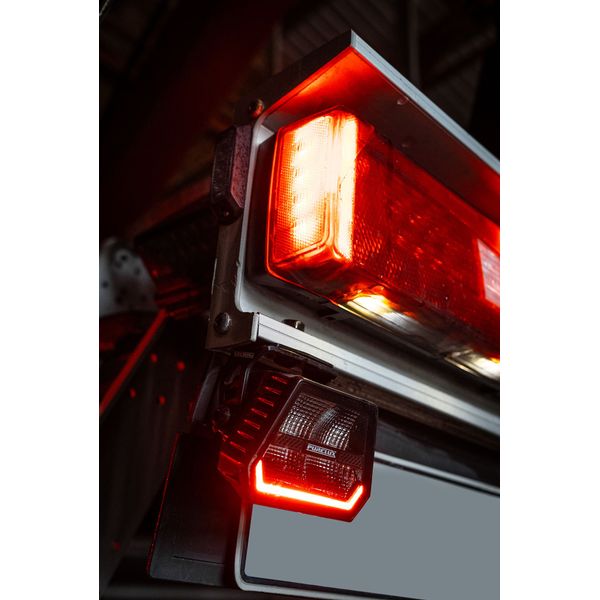

• Trucks and trailers: Reliable lighting in any situation.

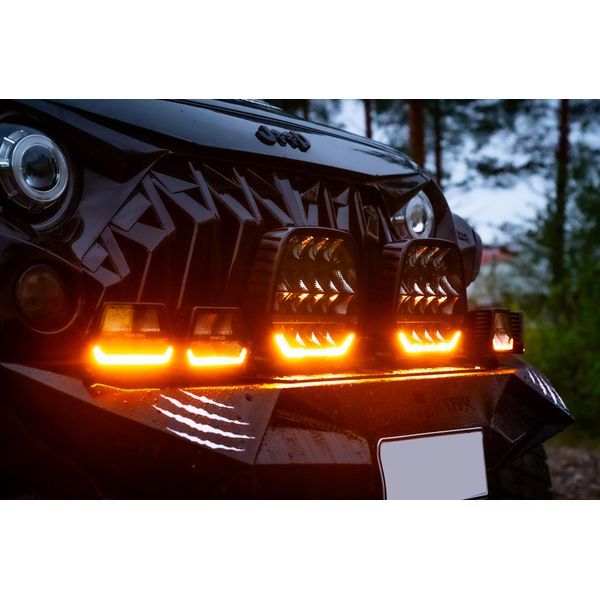

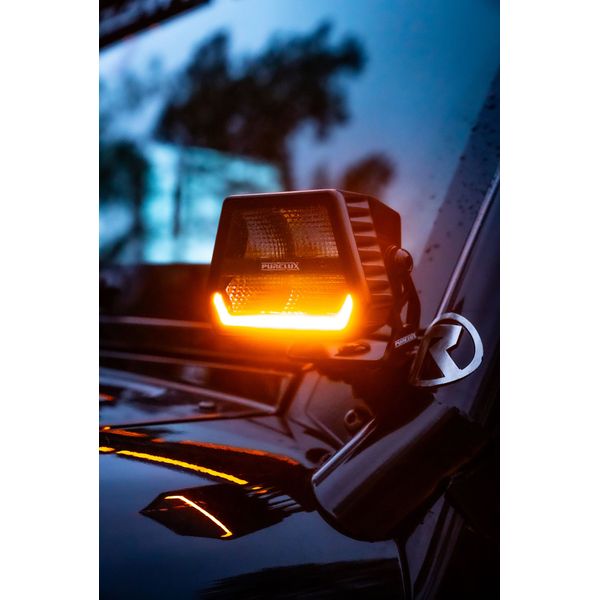

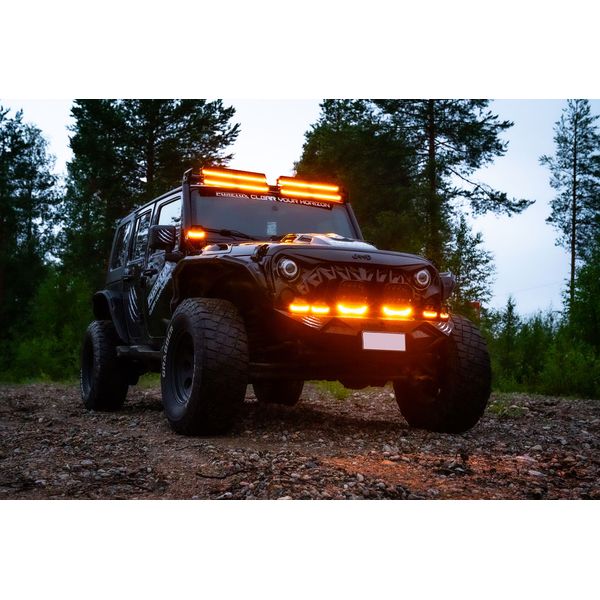

• SUVs and off-road vehicles: Discreet and stylish lighting solution.
• Work machines and agricultural equipment: Wide and directed beam ensures safety and efficiency.

Installation instructions:

1. Power connection: Connect the DT-4 plug to the light.
2. Position light: Choose orange or red light by connecting the appropriate wire.
3. Aiming: Aim the light to illuminate the work area while avoiding glare.
4. Heat management: Intelligent heat management system ensures optimal operation even during extended use.

👉 Purelux Panther Alpha 60 is the ideal choice for daily and demanding tasks, offering uncompromising quality and stylish design!
