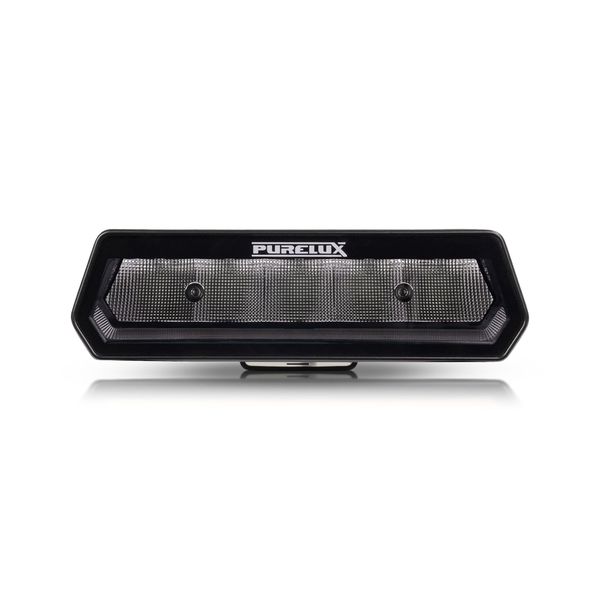

Purelux Panther Alpha 30, 30W, Wide Work Light/Reverse Light

Next-generation work light offering outstanding luminous performance, dual-tone parking/position light, and two color temperatures (4000K / 5000K). The ideal choice for work machines, vans, and heavy trucks!

Features:

• Powerful light output: 2800 lm, range 88 m (@1 lux).
• Two color temperatures: 4000K (reduces reflections on snow and fog) and 5000K (neutral tone, ideal for general work lighting).

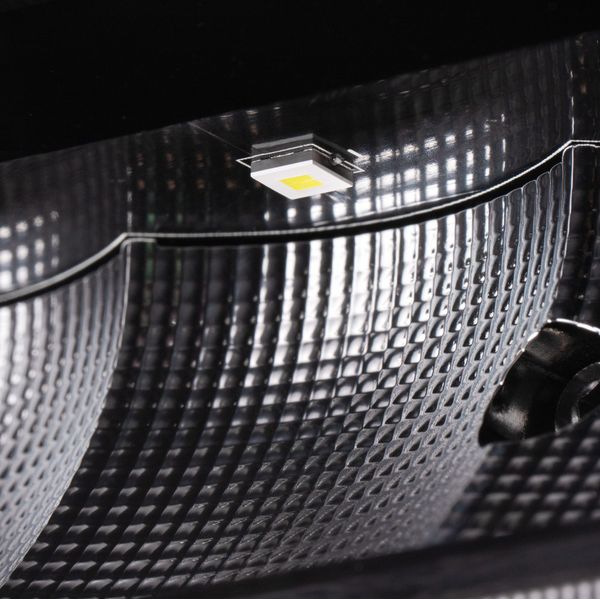

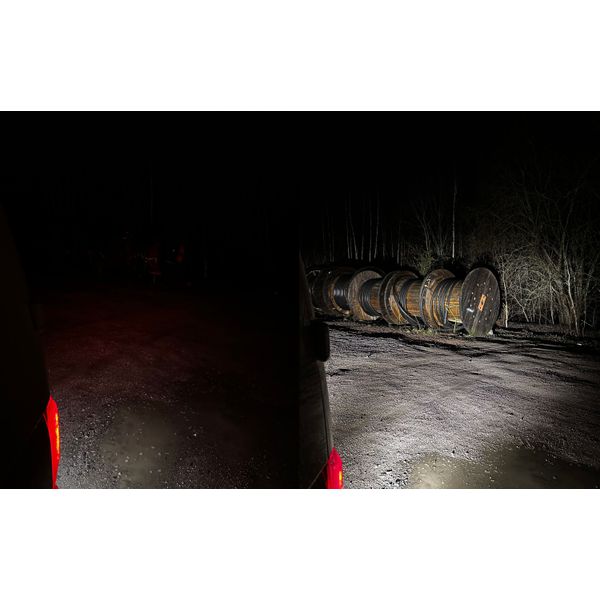

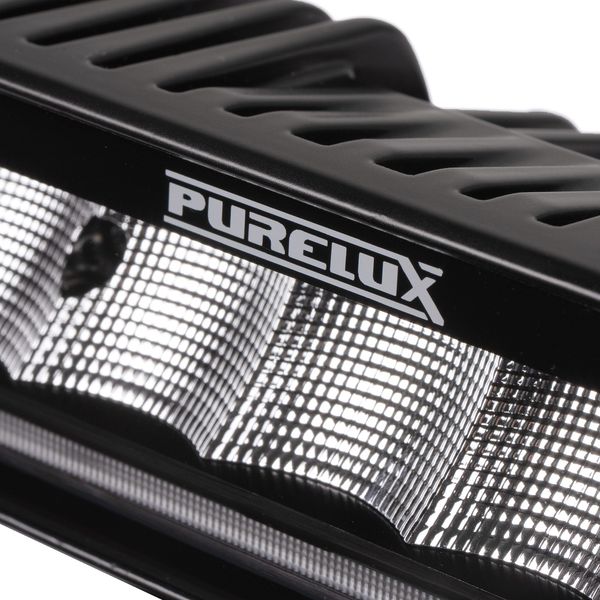

• Combination beam: Wide horizontal light and vertically limited beam that reduces glare.

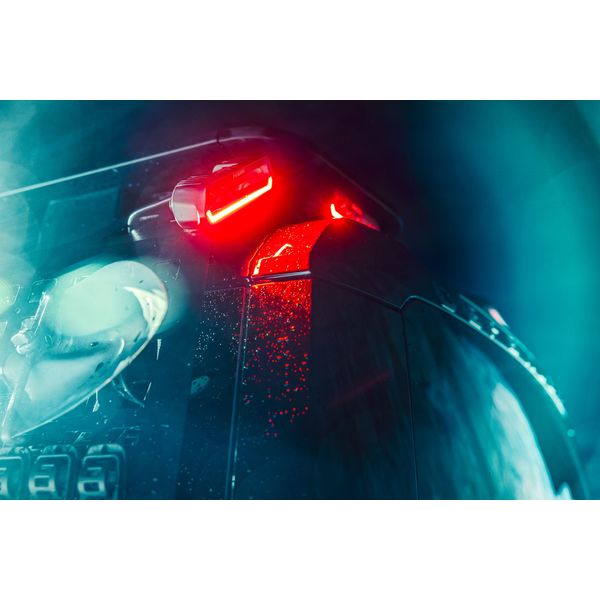

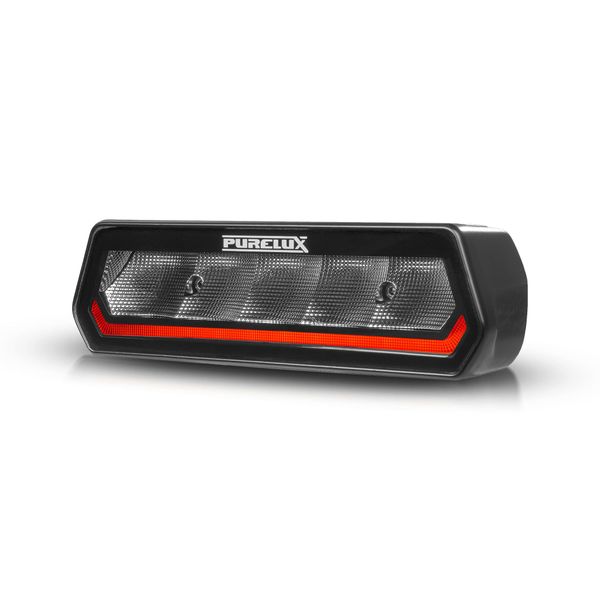

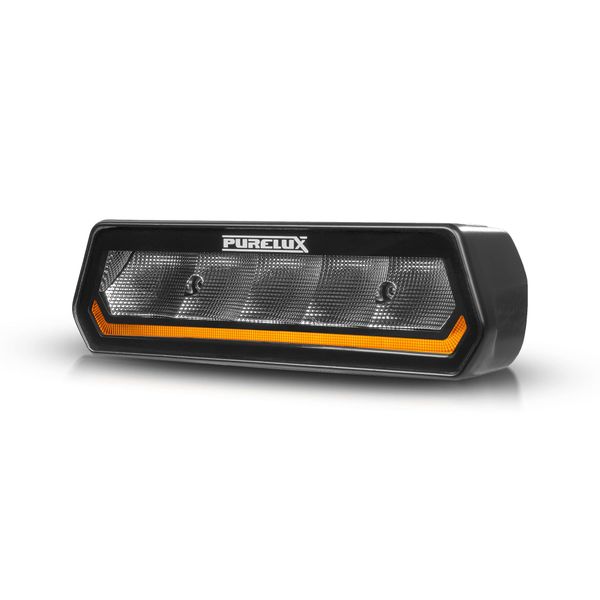

• Dual-tone parking light: Orange or red light for a stylish look and improved visibility.
• Low profile: Ideal for chassis, wall, and rear lighting.
• R23 certification: Suitable for use as a reversing light.
• IP69K protection class: Ultimate resistance to water, dust, and impacts.

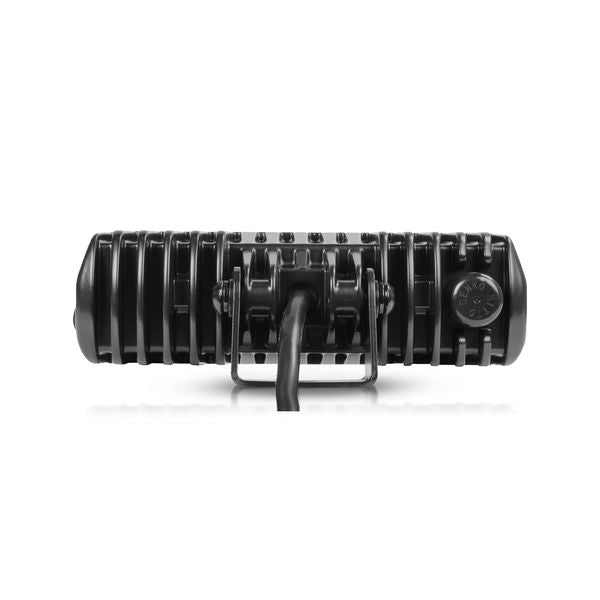

• Intelligent heat management: Prevents overheating even during prolonged use.
• Easy installation: DT-4 connector and included counter plug.
• Compatible with 12V and 24V systems: Wide operating voltage range (9–36V).

Technical specifications:

• Operating voltage: 9–36 V (DC)
• Power: 30 W (theoretical), 32 W (measured)
• Parking light power: 5 W
• Luminous flux: 2800 lm (factory rating), 2586 lm (measured)
• Beam range: 88 m @ 1 lux / 176 m @ 0.25 lux
• Color temperature: 4000K / 5000K (measured 5066K)
• Protection class: IP69K
• Certifications: ECE R10, R23, CISPR25 Class 3, CE, RoHS
• Connection: DT-4 connector (50 cm cable)
• Dimensions: 153 x 45 x 69 mm (Width x Height x Depth)
• Height with mounting bracket: 49 mm
• Weight: 454 g
• Operating temperature: -40°C to +60°C
• Warranty: 36 months

Included in the set:

• 1 x Purelux Panther Alpha 30 work light

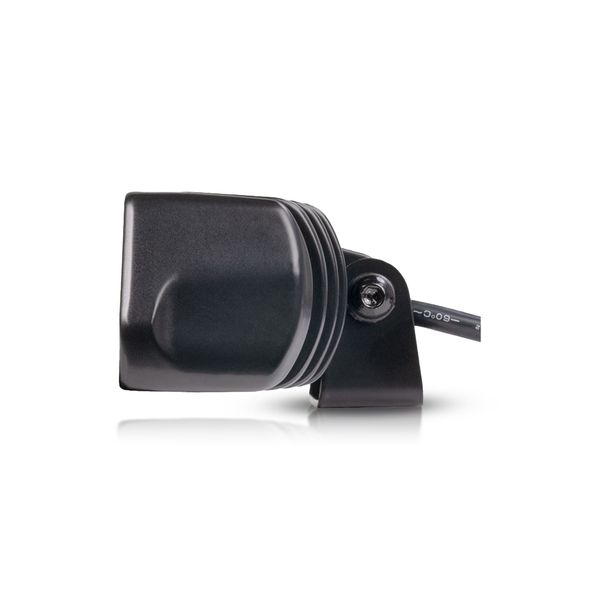

• 1 x Sturdy mounting bracket
• 1 x Mounting bolt
• 1 x Power cable with DT-4 connector (50 cm)
• 1 x Counter plug for connector
• 1 x Installation and user manual (FI, SE, NO, DK, EN)

Additional features:

• Strobe function: Possible to convert the parking light into a warning strobe mode using the Purelux Strobe Controller accessory.

Applications:

• Chassis and rear lighting on heavy trucks

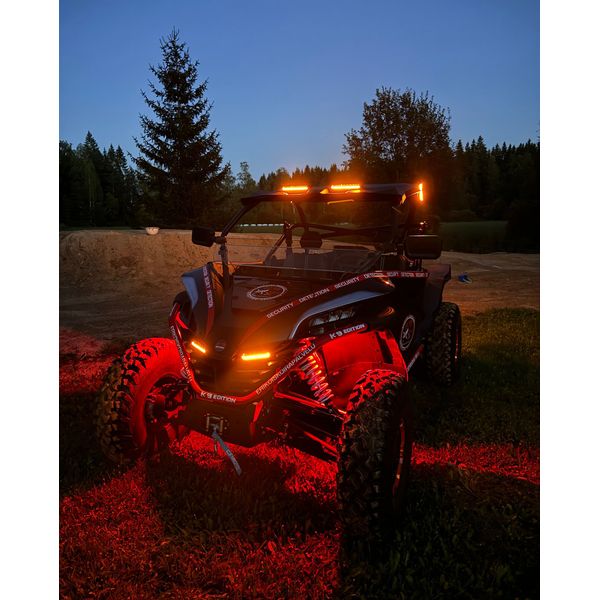

• Vans and off-road vehicles: Low profile ensures discreet installation.
• Work machines and construction equipment: Wide and directed beam increases work safety and efficiency.
• Reversing light (R23): Certified for use as a reversing light.

Installation instructions:

1. Power connection: Connect the DT-4 plug to the light.
2. Position light: Choose orange or red light by connecting the appropriate wire.
3. Aiming: Aim the light to illuminate the work area while avoiding glare.
4. Heat management: Intelligent heat management system ensures optimal operation even during prolonged use.

👉 Purelux Panther Alpha 30 combines compact design, high performance, and exceptional durability – the ideal lighting solution for demanding work conditions!
