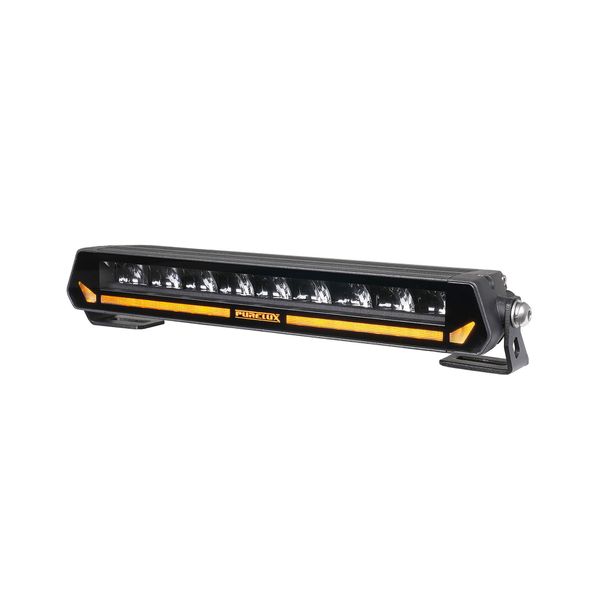

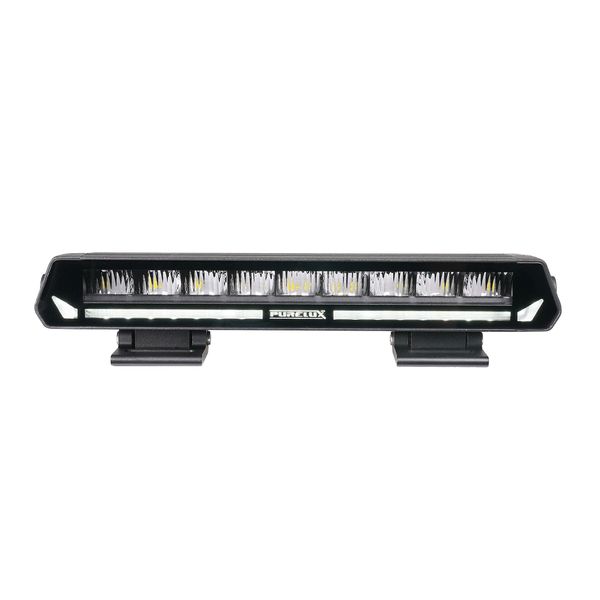

Purelux Panther Aero S300 Gen2 - Straight / 30 cm / 54W / Ref. 17.5

Purelux Panther Aero S300 Gen2 is a stylish, aerodynamically designed auxiliary light panel that combines a modern look, high-level light output, and practical features. This super-compact auxiliary light offers two power modes (Purelux PowerBoost® and a road-approved mode), dual-color parking lights, and a perfect combination light pattern that illuminates both distance and sides. In PowerBoost® mode, the luminous flux is 3930 lumens and the lighting distance is 352 meters (@ 1 lux).

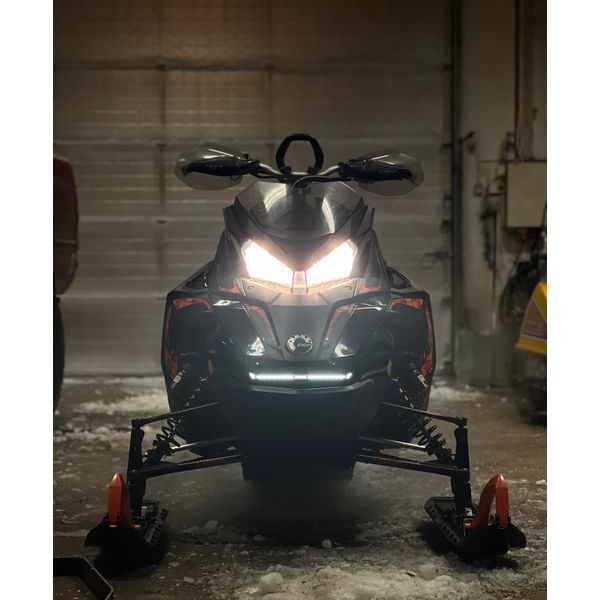

Thanks to its low and aerodynamic housing, the Panther Aero S300 Gen2 is well suited for enhancing lighting on various vehicles such as SUVs, vans, ATVs. It is also ideal for front grilles, air intake openings, and other tight installation locations.

Features

• Purelux PowerBoost® technology: Maximum light output for off-road driving and work.
• Two power modes:
  • PowerBoost® mode (3930 lm): High light output and range.
  • Road-approved mode (1979 lm): Suitable for use on highways.
• Combination light pattern:
  • Narrow central high beam with long range.
  • Wide side light that illuminates road edges.

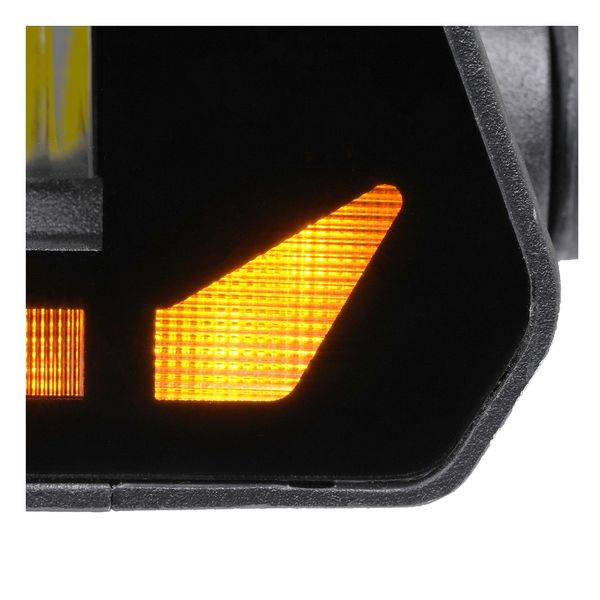

• Dual-color parking light:
  • White
  • Orange
• Low and aerodynamic design:
  • Height only 42 mm.
  • Frameless Lexa polycarbonate lens that does not collect dirt, snow, or ice.

Technical specifications

• Manufacturer and model: Purelux Panther Aero S300 Gen2
• Light source: 9 x 6W Osram LED
• Operating voltage: 9-36 V (suitable for both 12V and 24V systems)
• Luminous flux:
  • PowerBoost® mode: 3930 lm
  • Road mode: 1979 lm
• Lighting distance:
  • PowerBoost® mode: 352 m (@ 1 lux)
  • Road mode: 264 m (@ 1 lux)
• Power consumption:
  • PowerBoost® mode: 54W @ 12V / 48W @ 24V
  • Road mode: 23W @ 12V / 22W @ 24V
• Color temperature: 5000K
• Protection class: IP68 / IP69K

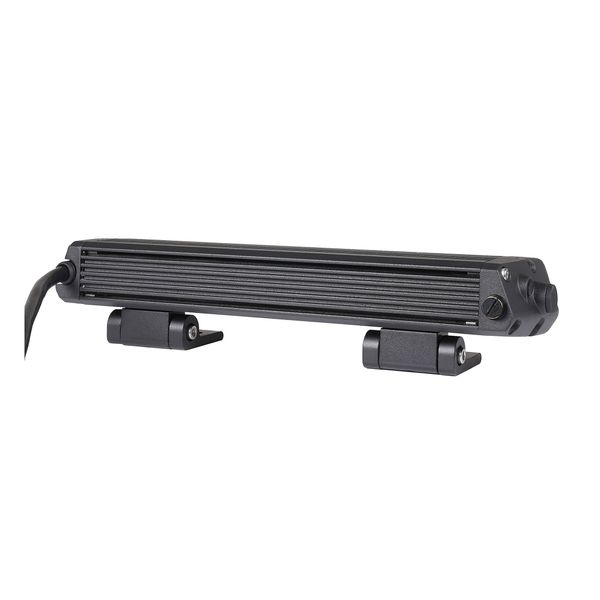

• Mountings: Extendable lower legs and end mounts
• Dimensions: 296 x 42 x 62.5 mm (L x H x D)
• Weight: 900 g
• Approvals: CE, ECE R10, R7, R112 (PowerBoost® mode does not comply with road regulations)

Package contents

1. Purelux Panther Aero S300 Gen2 auxiliary light
2. 2 x Extendable lower legs
3. 2 x End mounts
4. Power cable connector plug
5. Installation and connection instructions (EN/FI/SE/NO/DK)

Installation

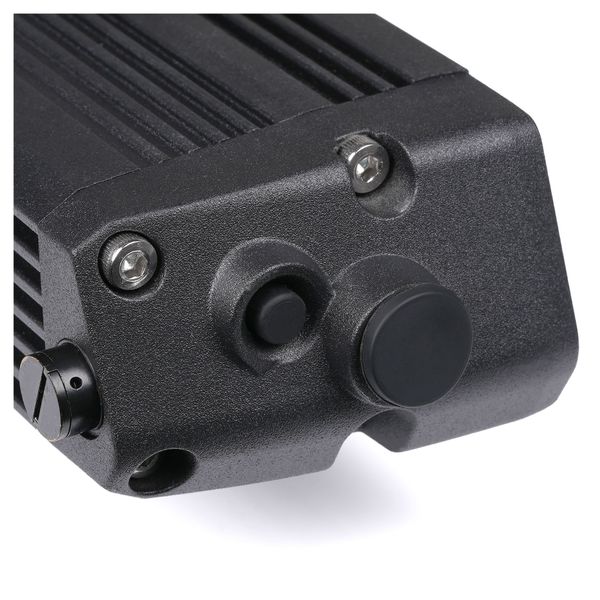

The Purelux Panther Aero S300 Gen2 is easy to install thanks to the DT-2 connector and adjustable mounts. The lamp’s power mode can be switched quickly and conveniently using the button on the lamp end. The dual-color parking light is connected with separate wires:

• White: connect the white wire.
• Orange: connect the yellow wire.

This is a stylish, powerful, and durable solution that is perfect for both highways and challenging conditions!
