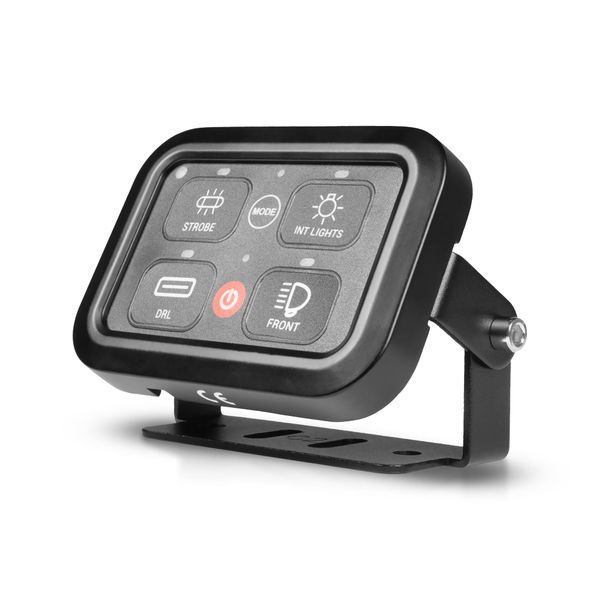

Purelux Multi-Switch 4 outputs (10-30V, IP65)

Versatile control panel with RGB backlighting for controlling four devices from one place. Ideal for work machines, trucks, and SUVs.

Features:

• Versatile control: Allows control of four electrical devices (e.g., work lights, beacons, engine fan, or seat heating).
• Individual control: Devices can be turned on/off individually or simultaneously.
• 3 operating modes: Continuous, momentary (holding the button), or flashing mode.

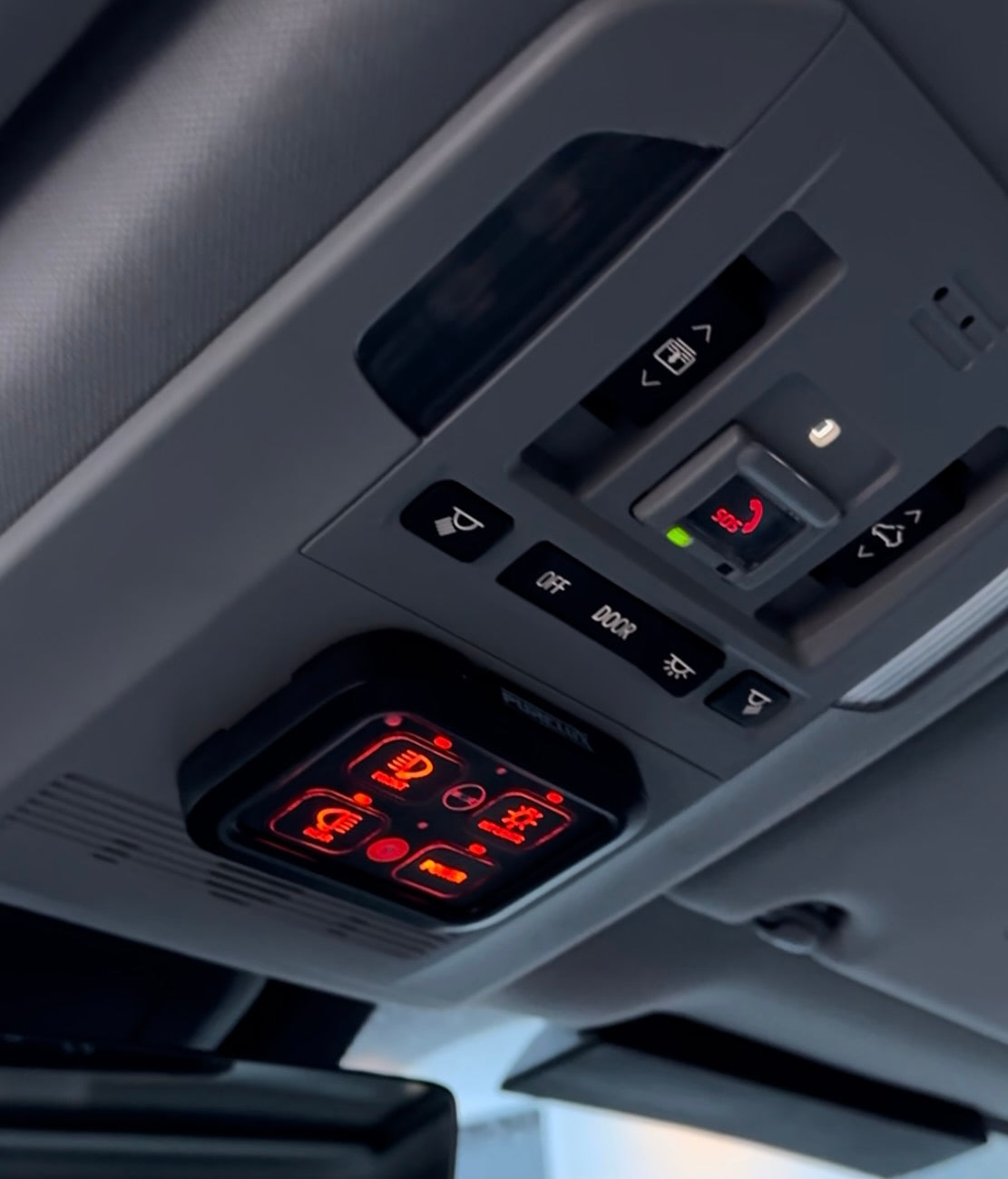

• RGB backlighting: Automatic brightness adjustment according to the environment, with the option to turn off.
• Memory function: Restores the device's previous operating mode after switching off.
• Clear labeling: Includes 50 different labeling stickers.
• Easy programming: Functions can be changed using the "Mode" button.

Technical specifications:

• Operating voltage: 10–30 V
• Power: 480W @12V / 960W @24V
• Maximum current: 40A (1st circuit 30A, 2nd circuit 20A, 3rd circuit 10A, 4th circuit 5A)
• IP protection class: IP65
• Operating temperature: -40°C to +105°C
• Certifications: CE marking
• Warranty: 12 months

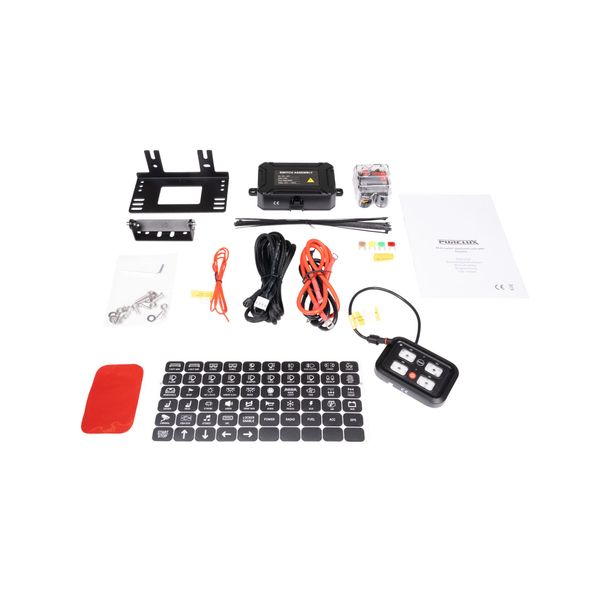

Included in the set:

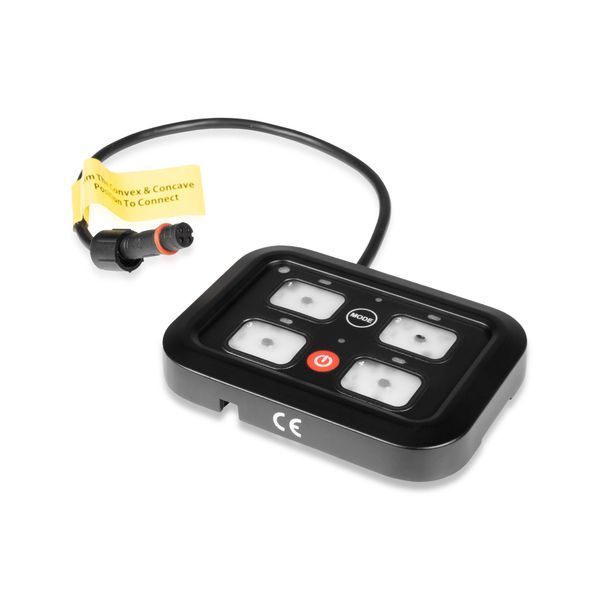

• Control panel (4 switches)
• Fuse box
• Residual current fuse (40A)
• 4-pole cable
• 2-pole cable
• Power cable
• 2 different mounting clips for the control panel
• Fuse box mounting clip
• 50 labeling stickers
• Screw set
• Wire connectors
• User manual

Installation instructions:

1. Power connection: Connect the red power cable to the positive battery terminal and the ground cable (black) to the vehicle chassis.
2. Control panel connection: Connect the included 4-pole cable to the control panel and fuse box.
3. Excitation voltage connection: Connect the cable from the cigarette lighter or ignition switch if you want to use the devices only while the engine is running. Direct battery connection allows device use even when the engine is off.
4. Device connection: Connect devices (e.g., work lights) to fuse box outputs 1–4.

Note: If the device power exceeds the control panel limit, use relays. The control panel only controls the relay excitation.

Additional features:

• Switches are programmable for continuous, momentary, or flashing modes.
• Backlit icons ensure visibility in the dark.

An efficient solution for controlling lighting and other electrical devices, ensuring clarity, reliability, and ease of use!

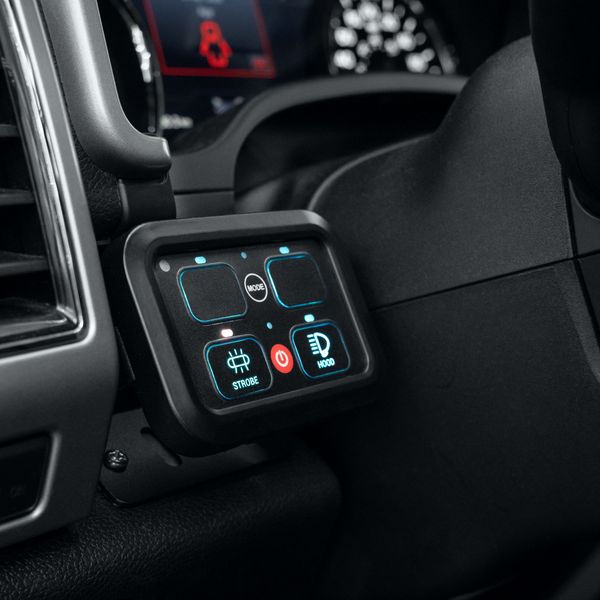

👉 Perfectly suited for professional use on work machines and special-purpose vehicles.
