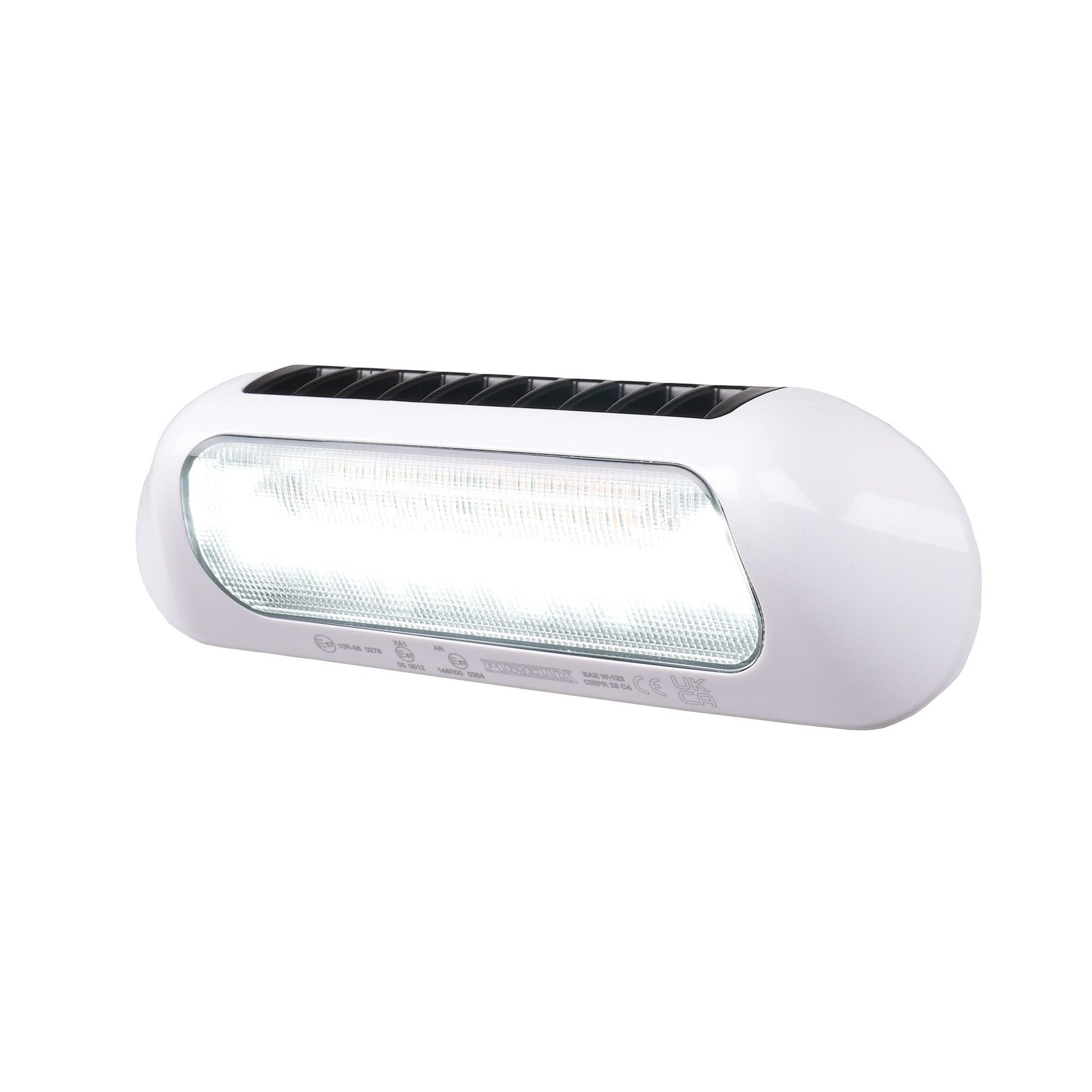

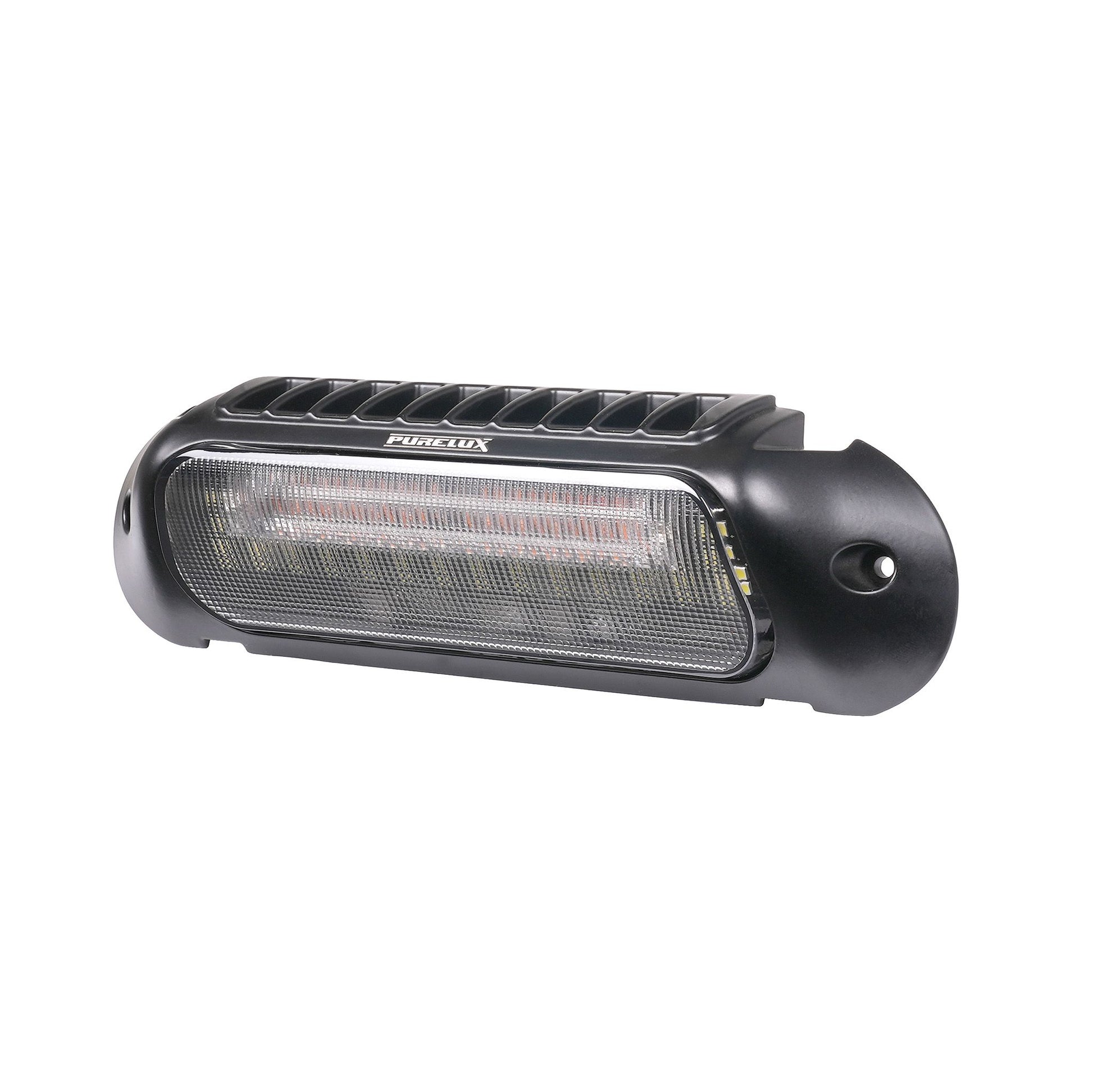

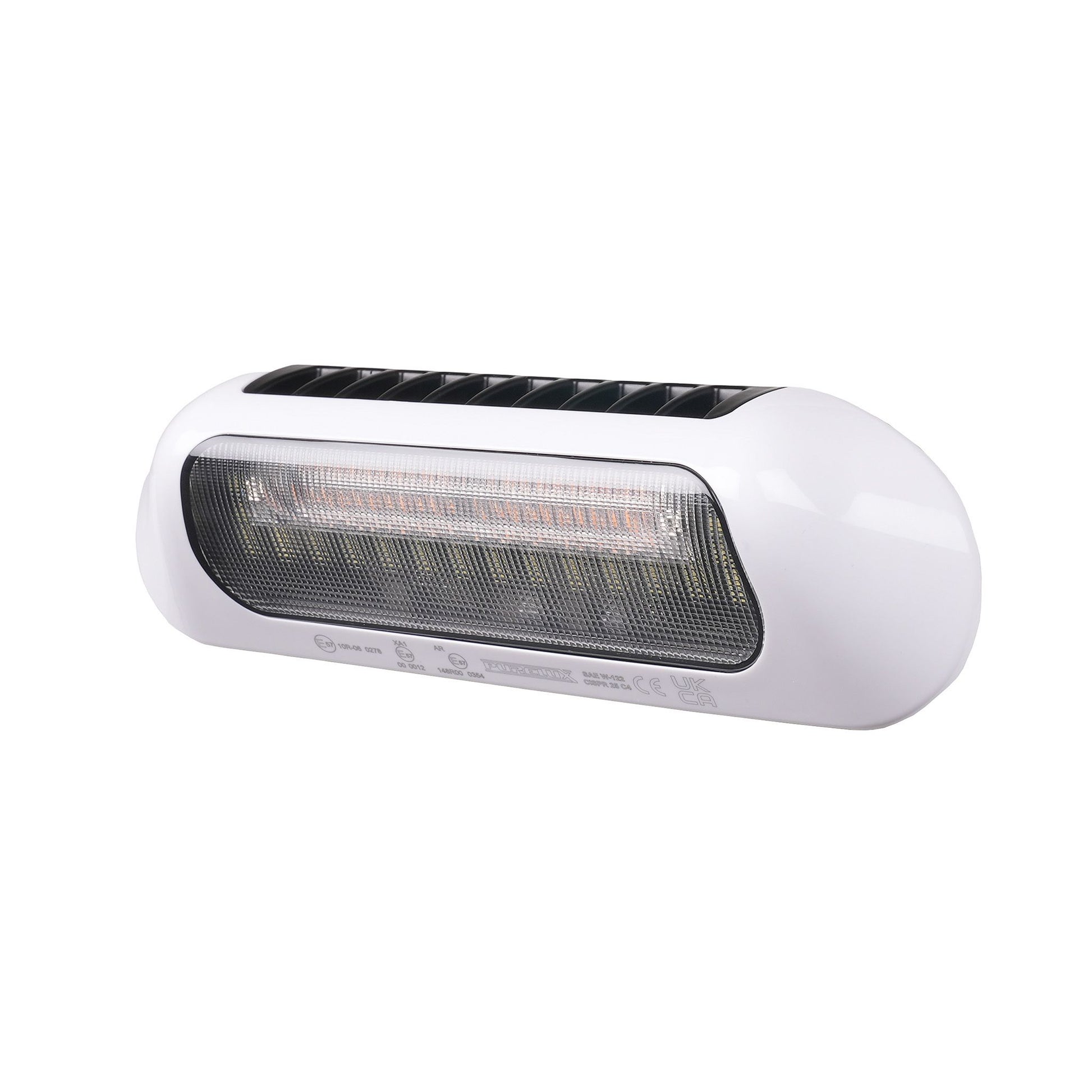

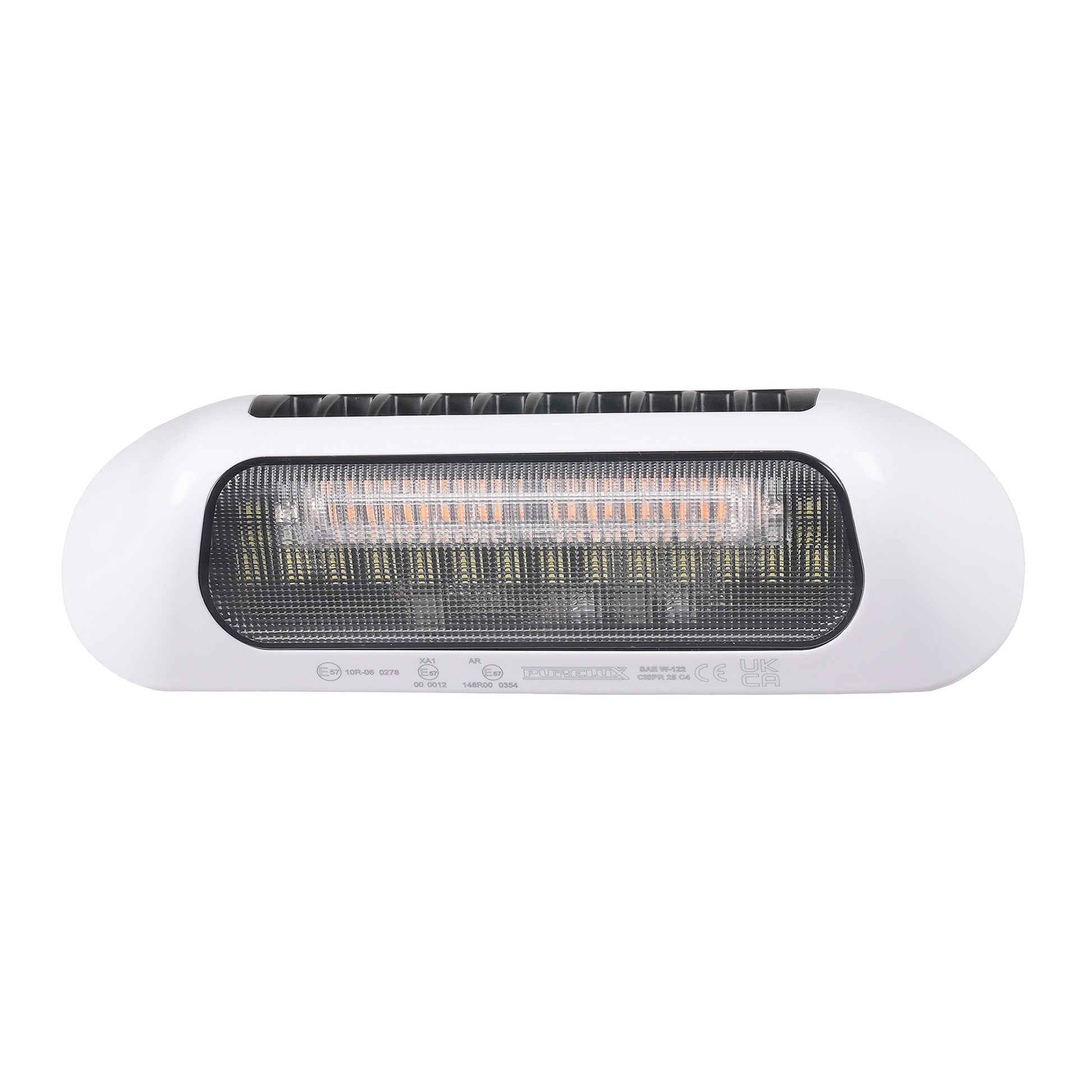

Purelux MF44 32W, SCENE

Versatile side-mounted work light combining a wide light pattern with certified orange warning light. Perfectly suited for use on work machines, vans, and trailers.

Main Features:

• Luminous Flux (work light): 3500 lm.
• Luminous Flux (warning light): 2361 lm.
• Beam Type: Wide and uniform light pattern – ideal for illuminating side areas.
• Color Temperature: 4500–5500K – eye-friendly and natural light.

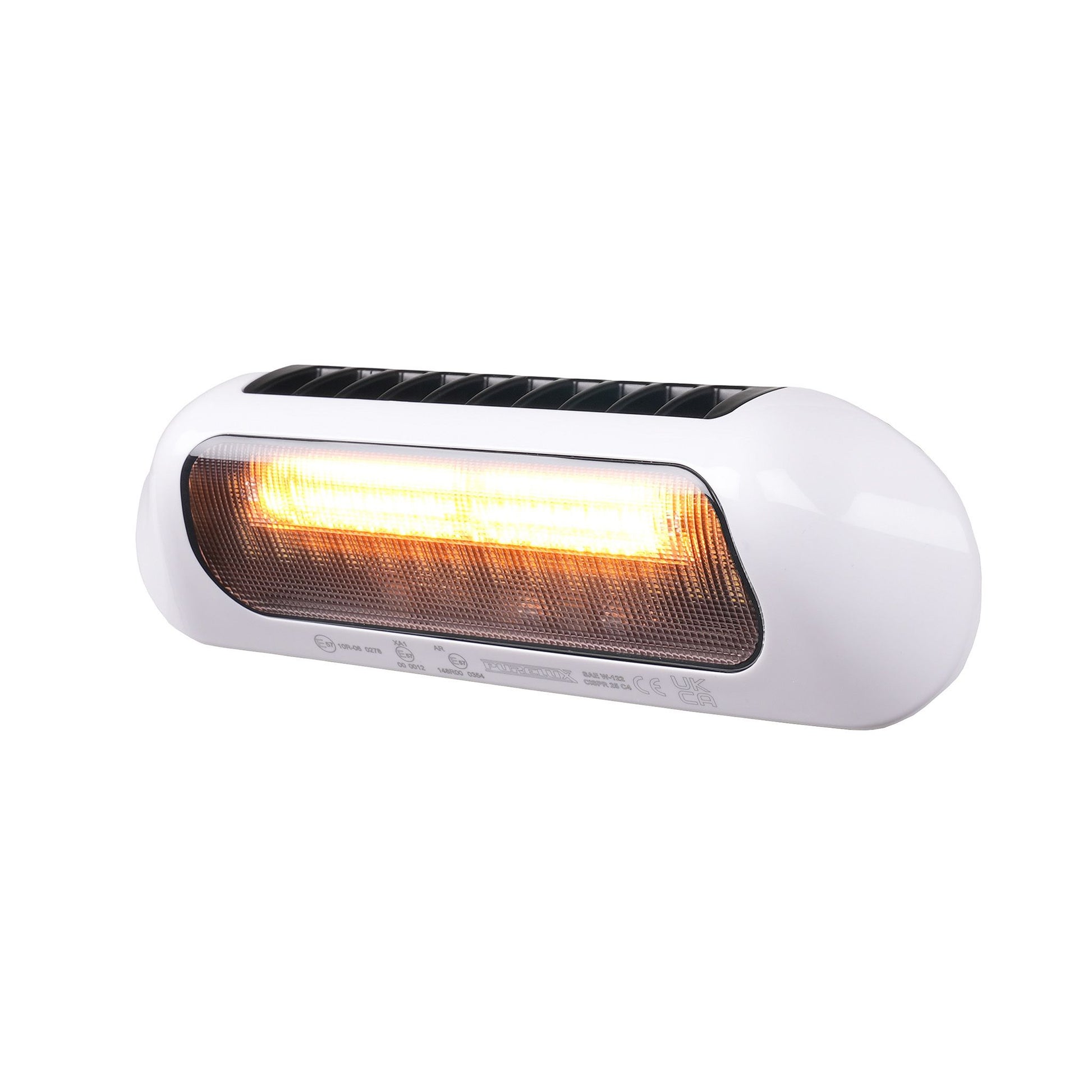

• Warning Function: 13 different strobe modes, including steady and alternating flash.
• Certifications: R23 (reverse light), R65 (warning light), R10 (radio interference protection).
• Flexible Mounting: Suitable for side mounting on various surfaces.
• Compact Size: 236 x 37 x 80 mm – easy to integrate into different applications.
• Materials: Durable aluminum housing and shatterproof polycarbonate lens.
• Protection Class: IP69K – fully dust-, water-, and steam-proof.
• Operating Voltage: Wide voltage range 10–30 V – suitable for both 12V and 24V systems.
• Warranty: 24 months.

Technical Data:

• Operating Voltage: 10–30 V (DC)
• Current Consumption (work light): 2.66A @ 12V / 1.33A @ 24V
• Current Consumption (warning light): 1A @ 12V / 0.5A @ 24V
• Nominal Power (work light): 32 W
• Nominal Power (warning light): 12 W
• Luminous Flux (work light): 3500 lm
• Luminous Flux (warning light): 2361 lm
• Color Temperature: 4500–5500K

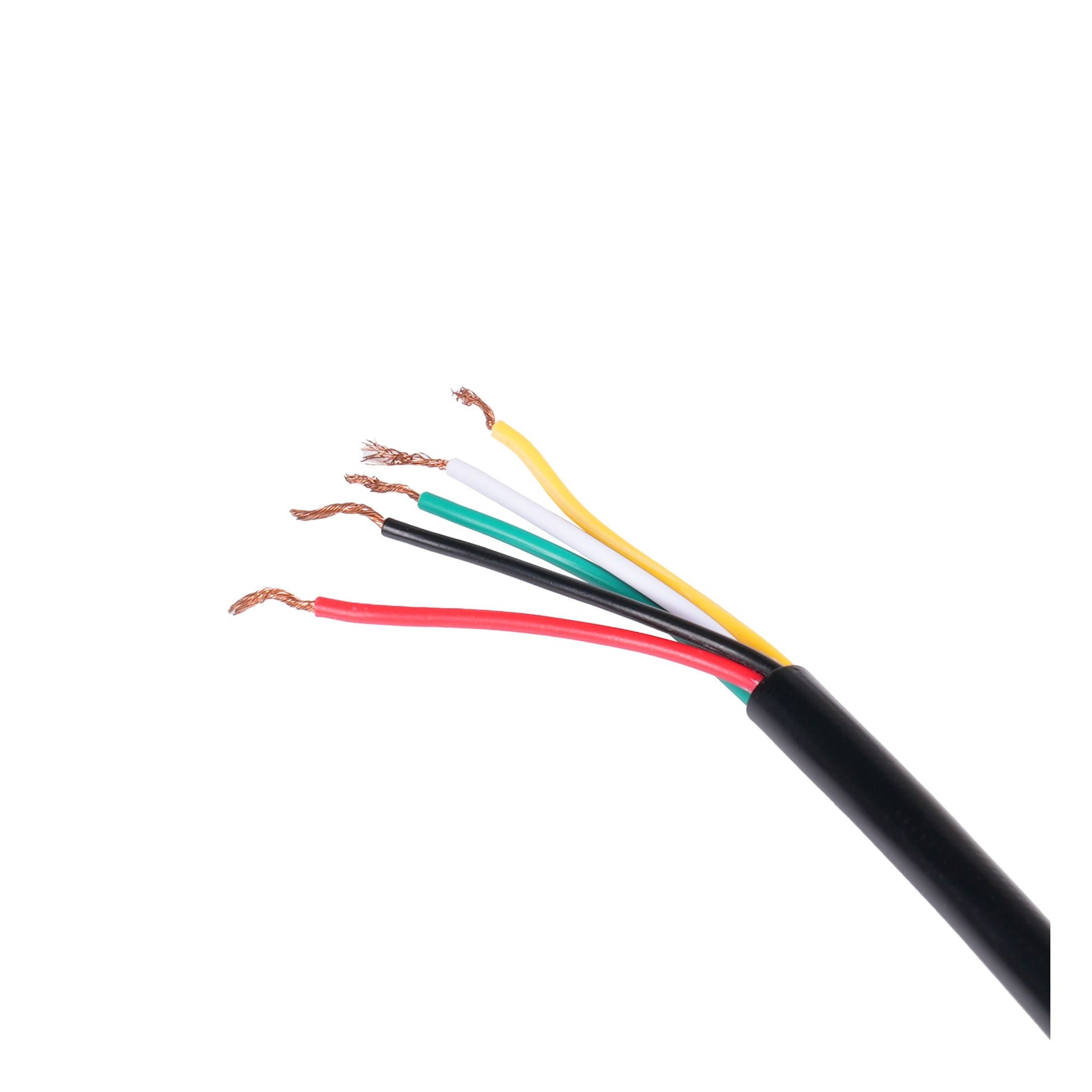

• Cable Length: 400 mm (direct wire, no connector)
• Dimensions: 236 x 37 x 80 mm (Width x Height x Depth)
• Protection Class: IP69K
• Certifications: EMC ECE R10, R23, R65XA1
• Warranty: 24 months

Included in the Package:

• 1 x Purelux MF44 work and warning light

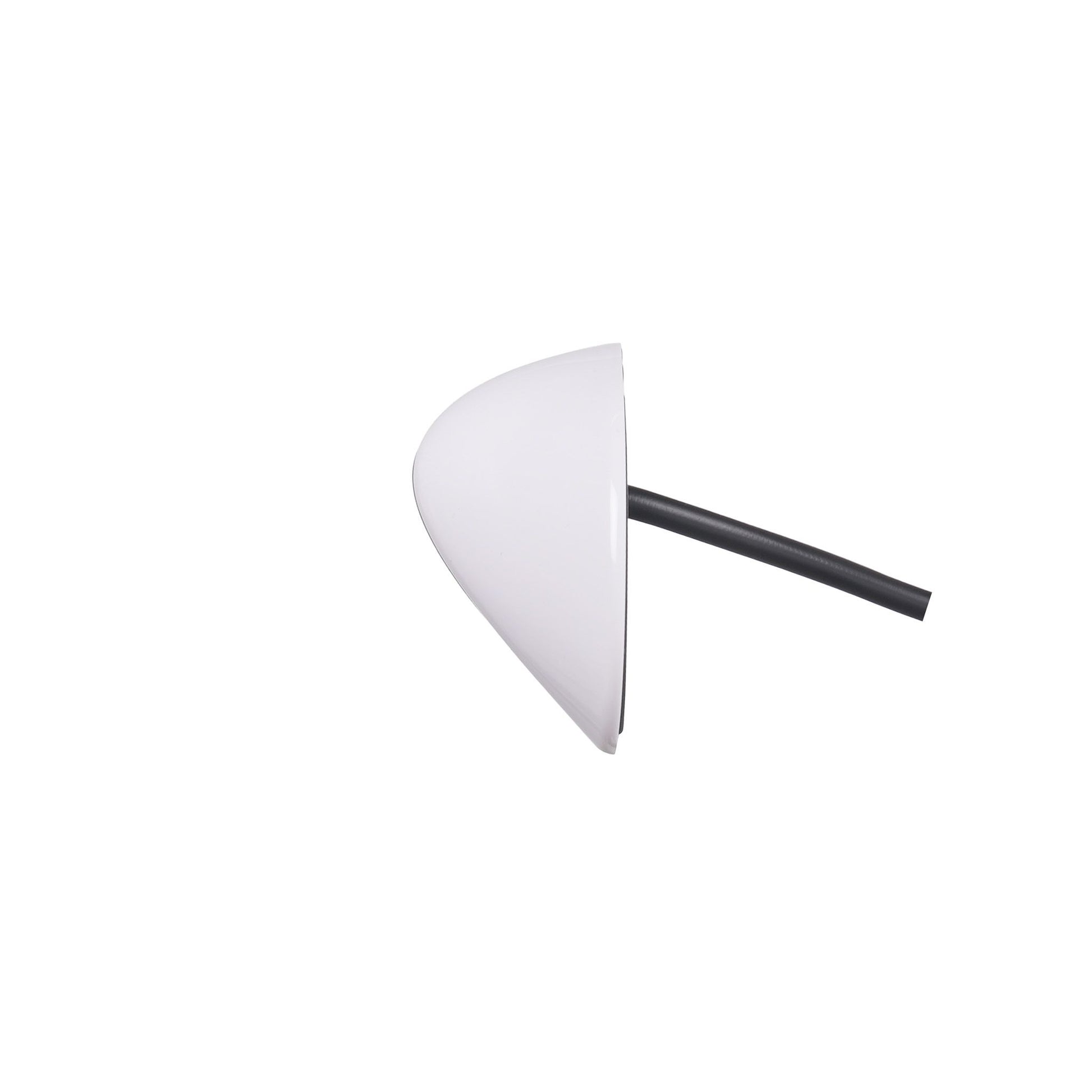

• 1 x White mounting frame
• 1 x Rubber mounting frame
• 1 x Mounting bolts
• Installation and user manual (EN/FI/SE/NO/DK)

Operating Modes:

• Single flash (100% luminous flux)
• Single flash (50% luminous flux)
• Double flash (100% luminous flux)
• Double flash (50% luminous flux)
• Single flash (slow)
• Triple flash
• Quintuple flash
• Low light mode
• Single + double flash
• Single + triple flash
• Single + quintuple flash
• Continuous light
• Cruise mode (30% luminous flux)

Applications:

• Work and Construction Machines: Effective side lighting and warning function on work sites.

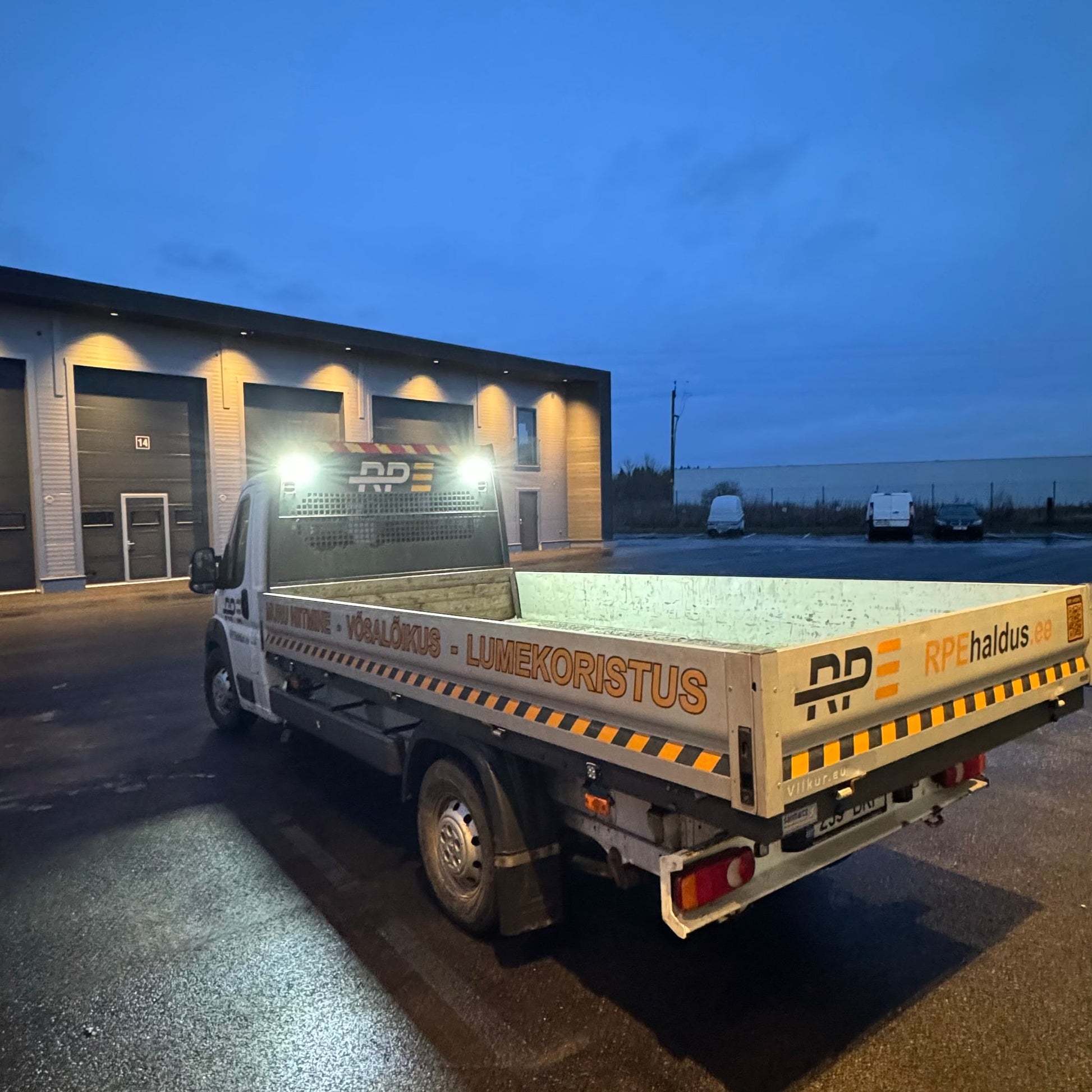

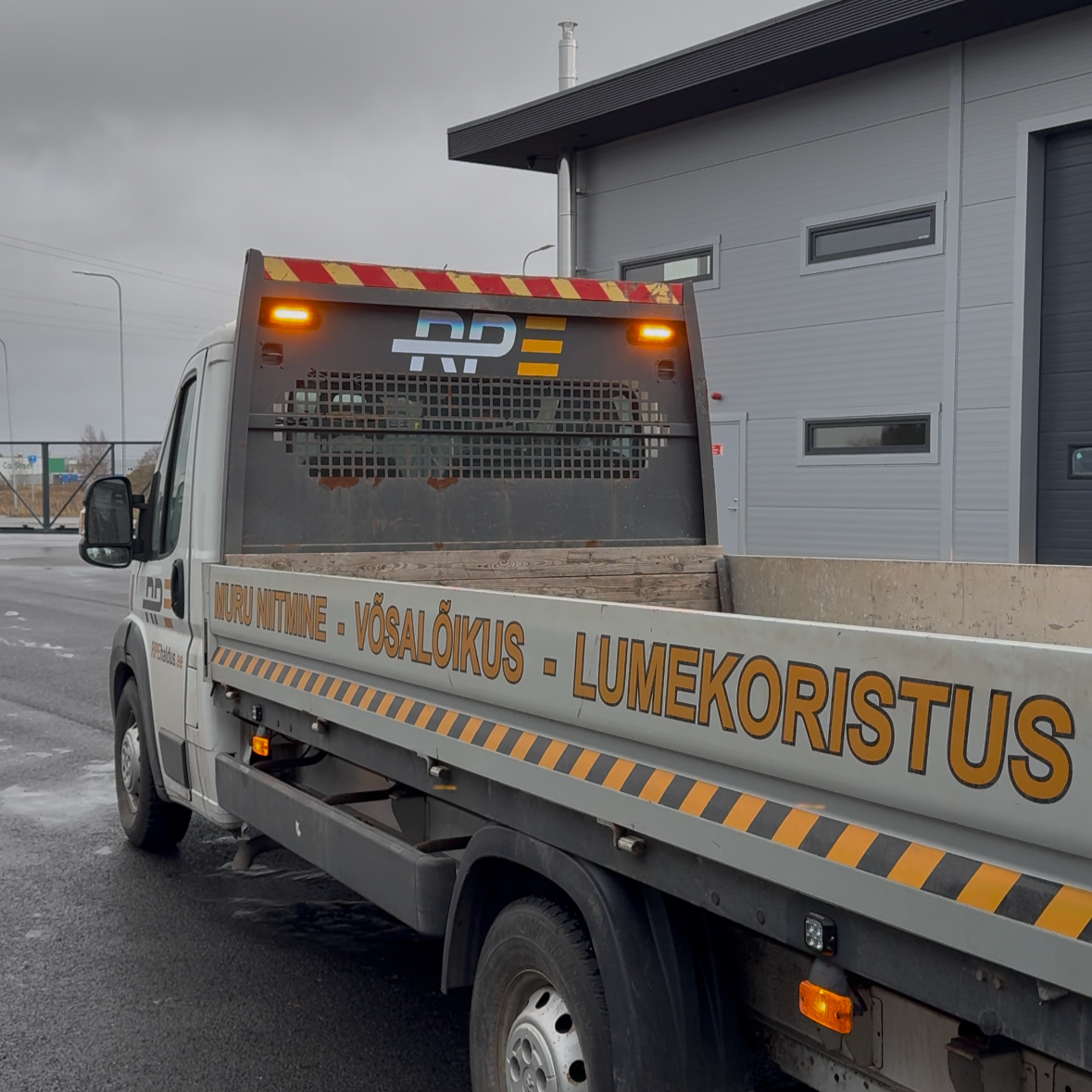

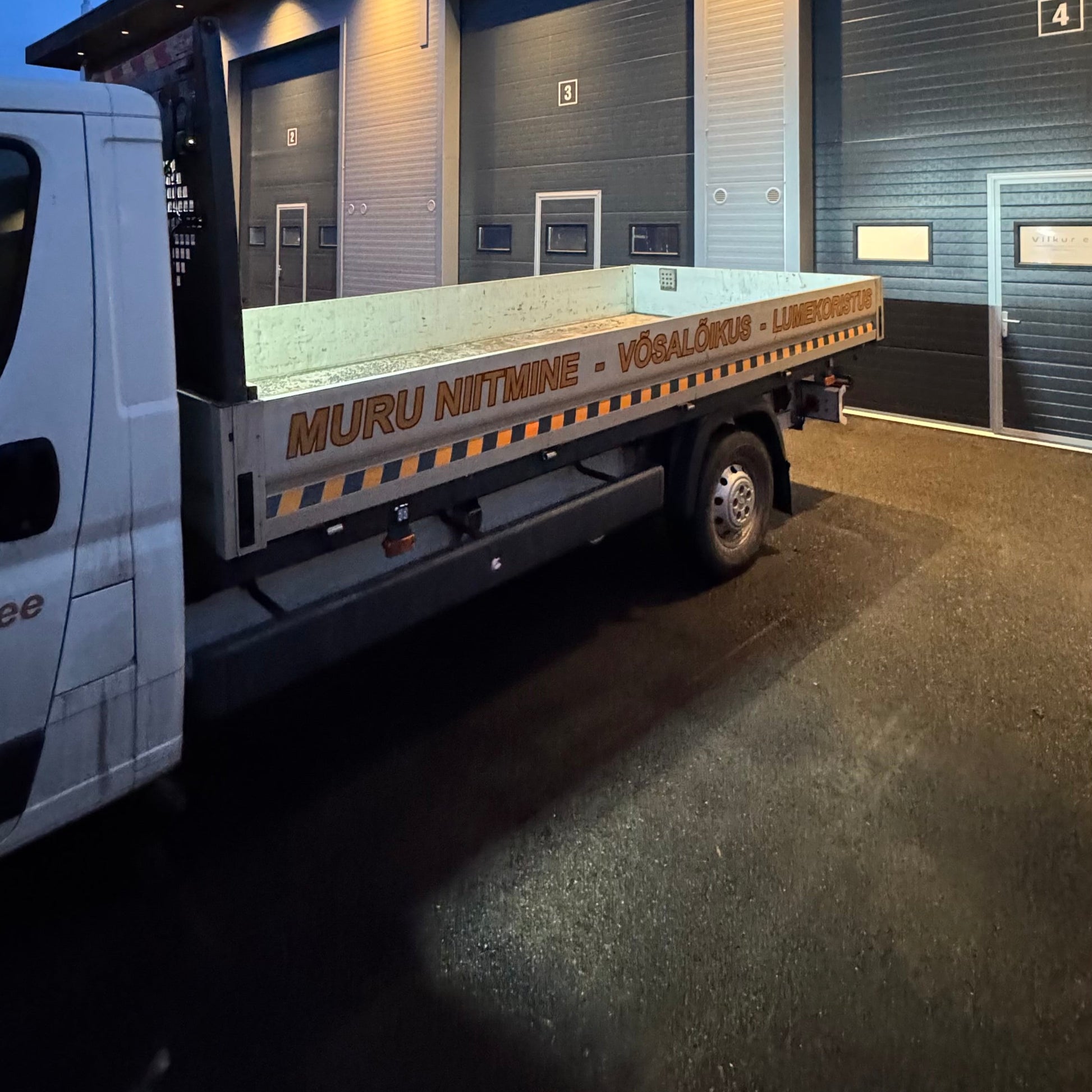

• Vans and Trucks: Suitable for side lighting and reverse light.
• Agricultural Machines: Efficient illumination of surrounding areas.
• Special Applications: Ideal for situations requiring combined work and warning lighting.
