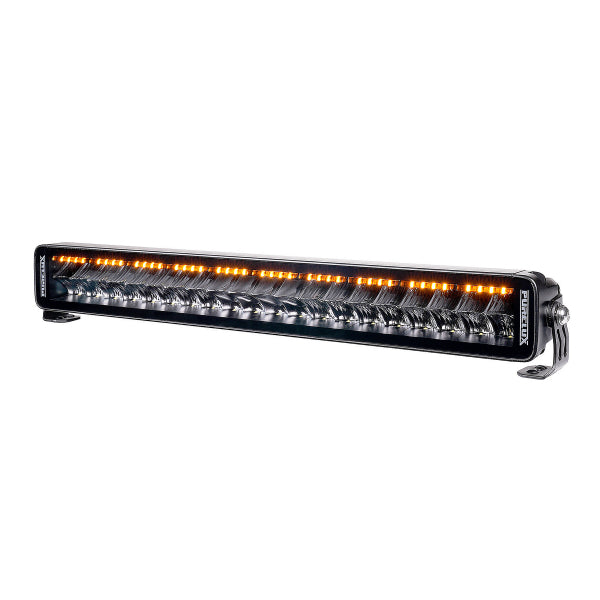

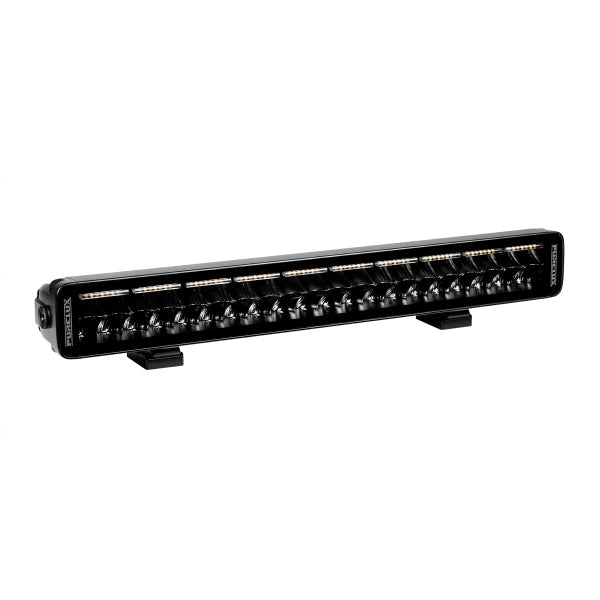

Purelux Flash S560 - Straight / 56 cm / 200W / Vilkuriga

Multi-purpose dual-row LED auxiliary high beam and beacon, combining dynamic two-tone parking light, two power modes, and modern design. An ideal choice for work machines and vehicles where both visibility and warning functions are important!

Features:

• Multi-purpose use: LED auxiliary high beam, beacon, and two-tone parking light.
• Light output: 5,000 lm (measured).
• Light beam: 400 m @ 1 lux / 800 m @ 0.25 lux.
• Two-tone parking light: White and yellow-orange light.
• Beacon function: ECE R65 certified warning beacon.
• Frameless Lexa lens: Resistant to impacts and weather conditions, does not collect dirt, ice, or snow.

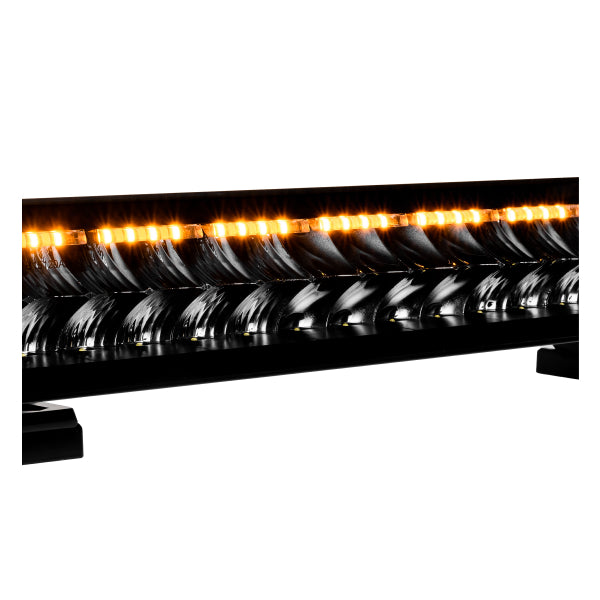

• Dual-row design: Optimized light distribution and greater range.
• Compact and low profile design: Only 70 mm high, suitable for discreet installation.
• Modern design: Black housing and darkened optical elements.
• Optimal color temperature: 5700K ensures clear and natural light.
• IP68 protection class: Full protection against water and dust.
• Radio frequency interference protection: Complies with ECE R10 standard.
• Wide operating voltage range: Suitable for both 12V and 24V systems.

Technical data:

• Operating voltages: 10–30 V (DC)
• Power: 200 W (calculated power)
• Current consumption:
  • Manufacturer measured: 6.86A @ 12V / 3.46A @ 24V
  • Measured by Valostore: 3.5A @ 24V
• Luminous flux:
  • Manufacturer theoretical: 16,800 lm
  • Manufacturer measured performance: 4,617 lm
  • Measured by Valostore: 5,000 lm
• Light beam:
  • Range: 400 m @ 1 lux / 800 m @ 0.25 lux
• Color temperature: 5700K (measured 5804K)
• Protection class: IP68
• Certifications: CE, RoHS, ECE R10, R7 (parking light), R112, R65 (beacon)
• Connection: Direct wires (no plug)
• Cable length: 50 cm
• Dimensions: 561 x 70 x 67 mm (Width x Height x Depth)
• Weight: 2500 g
• Warranty: 24 months

Included in the package:

• 1 x Purelux Flash S560 LED auxiliary high beam / beacon
• 2 x Width adjustable lower mounting brackets
• 2 x Side mounting brackets
• 1 x Power cable socket
• 1 x Connection and installation manual (FI, SE, NO, DK, EN)

Light beam characteristics:

• Combination light beam: Wide horizontal light beam and long-reaching center point.
• Beacon function: Warning function ensures visibility in hazardous working conditions.
• Vertical limitation: Prevents light scattering up and down, improving visibility in snowy and foggy conditions.
• Neutral color temperature (5700K): Enhances visibility and reduces eye fatigue during prolonged use.

Functions and applications:

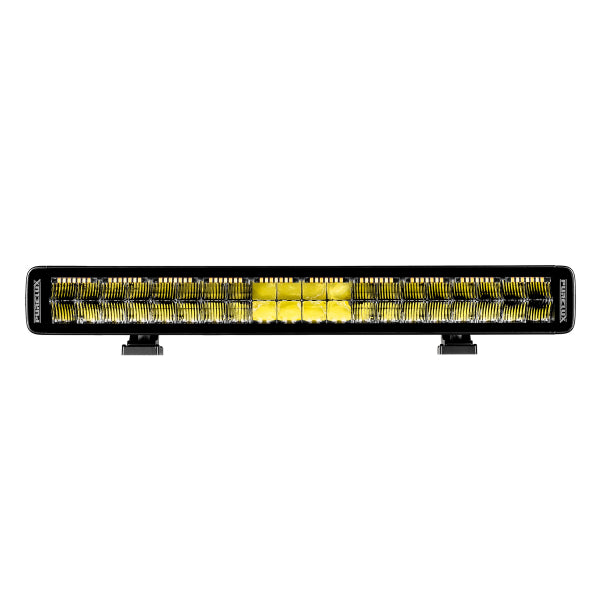

• Auxiliary high beam: Excellent visibility on longer and complex road sections.
• Warning beacon: Ensures safety in roadworks and hazardous situations.

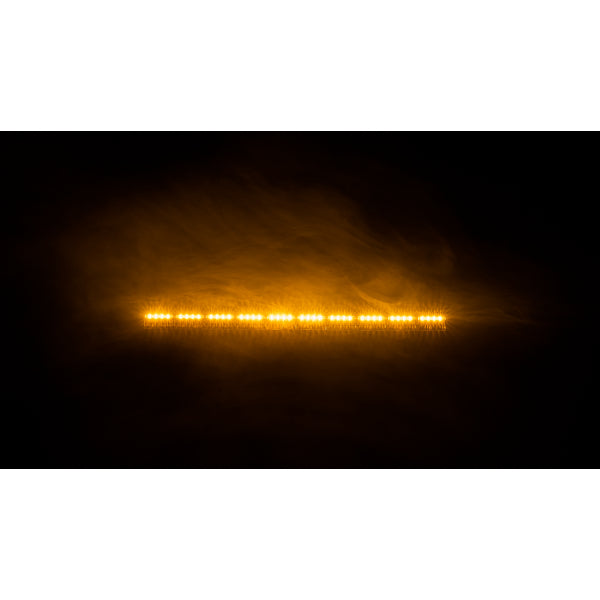

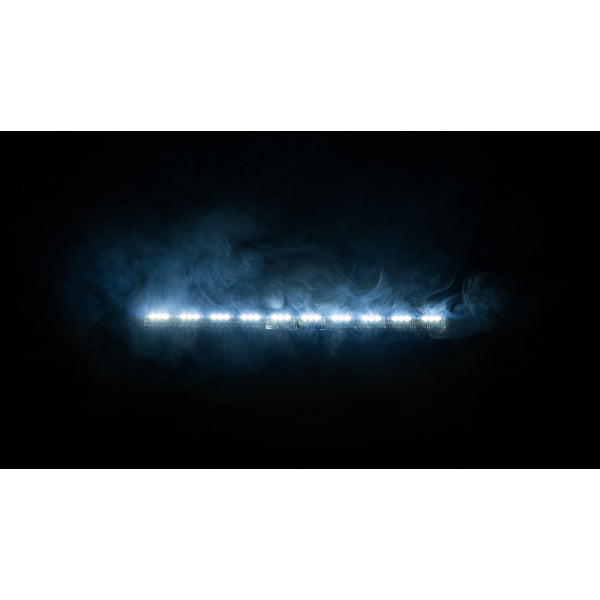

• Parking light: White or yellow-orange dynamic parking light.

👉 Purelux Flash S560 combines LED auxiliary high beam, warning beacon, and two-tone parking light functions – ideal for work machines, commercial vehicles, and professional use!
