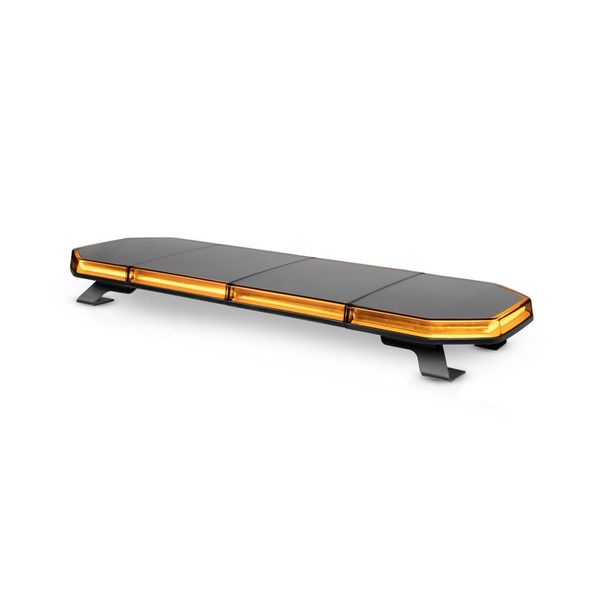

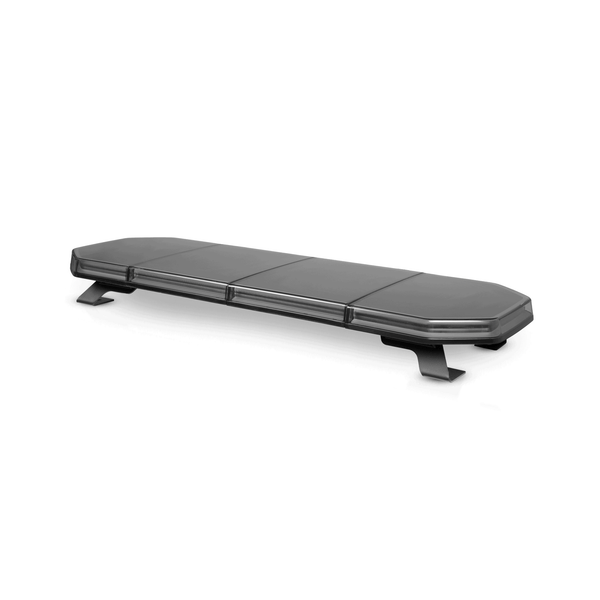

Purelux Flash 800 Gen2 - 800 mm / 102W / 12/24V

A professional warning light panel designed for professional use, ensuring 360° visibility and meeting the most demanding working conditions. Suitable for both 12V and 24V systems.

Main Features:

• ECE R65 approved warning light – officially usable in traffic.
• 12 different operating modes – including directional arrows and Cruise mode.
• Day and night mode – adjusted brightness according to conditions (ECE R65 Class 2).
• IP69K protection class – complete dust and water resistance.
• CISPR25 Class 5 – best possible radio frequency protection.

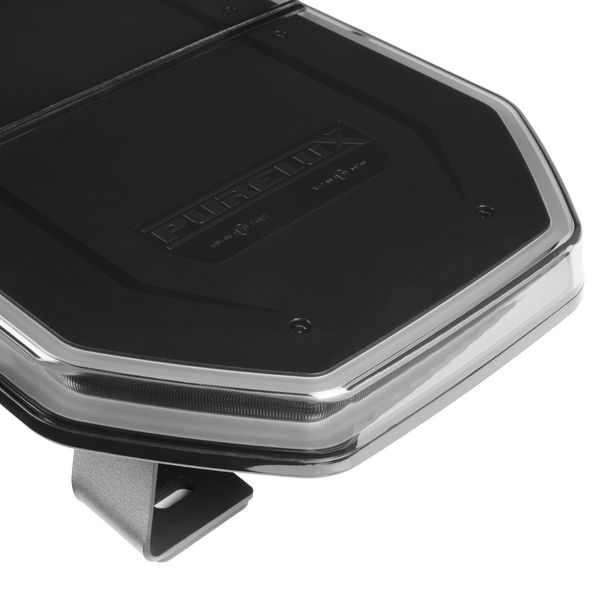

• Lightweight and durable design – corrosion-resistant aluminum frame and virtually unbreakable polycarbonate lens.
• Aerodynamic profile – low shape reduces air resistance and wind noise.
• Flexible installation – can be synchronized with multiple panels for larger vehicles.
• Suitable for various vehicles – ideal for cars, vans, and work machines.
• Warranty: 24 months.

Technical Data:

• Power supply voltage: 10-36 V
• Current consumption: 8.45A @ 12V / 3.9A @ 24V
• Nominal power: 102 W

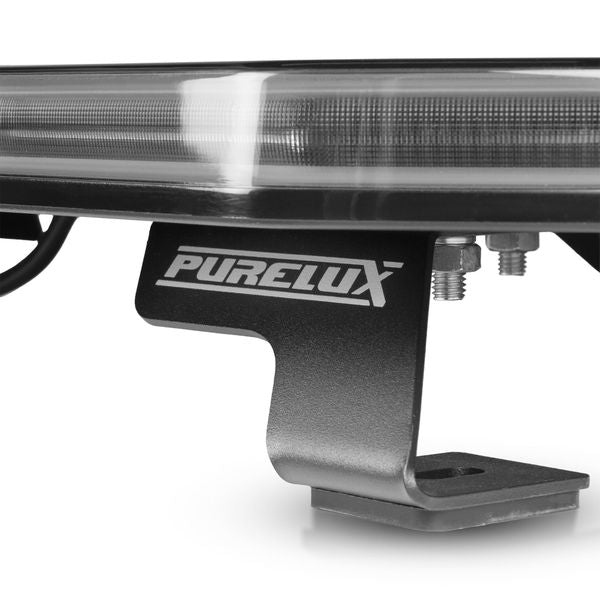

• Installation: Mounting feet and bolts
• Connection: Direct wiring (without plug)
• Cable length: 5000 mm
• Dimensions: 784 x 35 x 240 mm (Width x Height x Depth)
• Height with mounting feet: 77 mm
• Weight (with feet): 5900 g
• Protection class: IP69K
• Operating temperature: -40°C to +50°C
• Certifications: EMC: ECE R10, R65 Class 2, CISPR25 Class 5, CE, RoHS
• Other: 360° illumination, orange light, ultra-low profile

Included in the Package:

• Purelux Flash 800 Gen2 warning light panel
• Mounting feet
• Mounting bolts
• Power cable (5000 mm, without plug)
• Installation manual (EN/FI/SE/NO/DK)

Operating Modes and Connection:

Operating modes (12 different functions):

• Single flash (R65 Class 2)
• Fast double flash (R65 Class 2)
• Slow double flash
• Multiple flash
• Combined single/double flash
• Combined single/multiple flash
• Glowing effect ("breathe")
• Left directional arrow
• Right directional arrow
• Center expanding arrow
• Cruise mode – steady light (non-flashing warning light)
• Night mode (R65) – brightness reduced by 50%

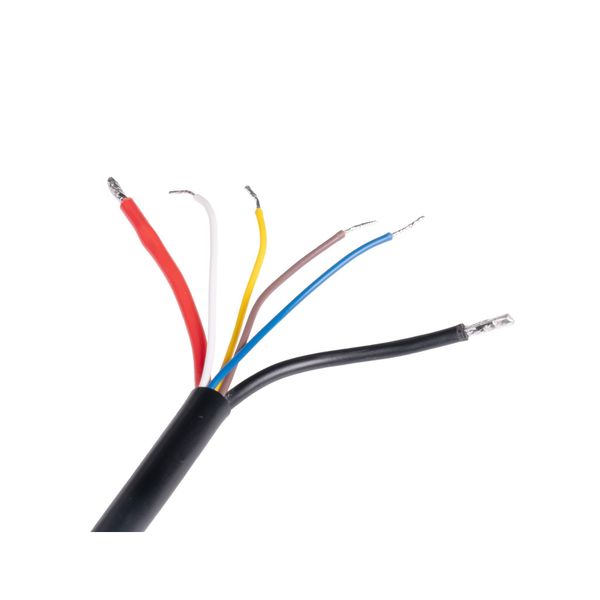

Wire Connections:

• Red: Power (+)
• Black: Ground (-)
• Yellow: Warning light panel functions and synchronization
• Blue: Warning light panel #1 (R65 night mode)
• White: Cruise mode light
• Brown: Directional lights (left/right)

Function Activation:

• Change flashing functions: Touch the red and yellow wires within 1 second.
• Synchronization between multiple panels: Connect the yellow wires together.
• Activate night mode (R65): Connect the blue wire to the red wire for 5 seconds.
• Steady light (Cruise mode): Connect the white wire to the red wire.
• Directional lights: Connect the brown wire to the red wire (1 second = left direction, 5 seconds = right direction).
