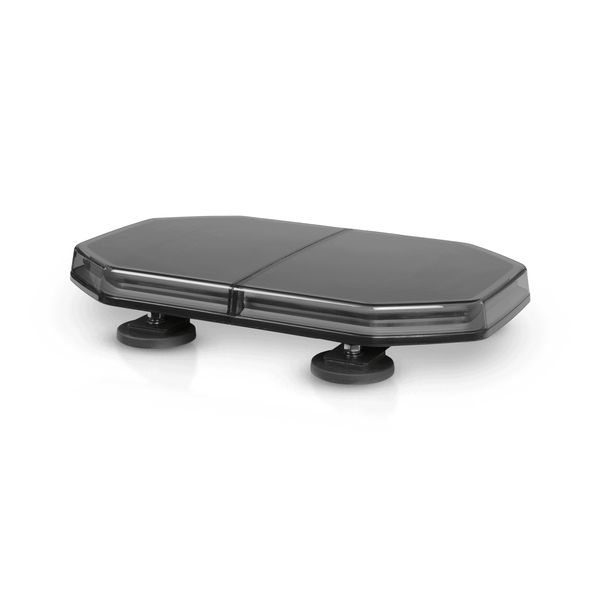

Purelux Flash 400 Gen2 - 400 mm / 78W / 12/24V

Easily installable and removable low-profile beacon panel that operates directly from the cigarette lighter. Ideal for maintenance and surveillance vehicles!

Main Features:

• Powered by cigarette lighter – no separate wiring or installation needed.
• Strong magnetic mount – quick and easy installation without drilling.
• ECE R65 Class 1 approved beacon – suitable for official use in traffic.
• 9 different operating modes – including directional arrows and multiple flashes.
• 360° visibility – enhances work safety in traffic and construction sites.
• IP69K protection class – fully dust and waterproof.
• CISPR25 Class 5 – best possible radio frequency protection.
• Compact and aerodynamic design – reduces air resistance and noise.
• Durable polycarbonate lens – impact, vibration, and corrosion resistant construction.
• Suitable for various vehicles – ideal choice for maintenance vehicles, tractors, work machines, and commercial vehicles.
• Warranty: 24 months.

Technical Data:

• Operating voltage: 10-36 V
• Current consumption: 6.5A @ 12V / 2.85A @ 24V
• Nominal power: 78 W
• Mounting: Magnetic feet
• Connection: Cigarette lighter plug
• Cable length: 4000 mm
• Dimensions: 384 x 35 x 240 mm (Width x Height x Depth)
• Height with mounting feet: 77 mm
• Weight (with feet): 3000 g
• Protection class: IP69K
• Operating temperature: -40°C to +50°C
• Certifications: EMC: ECE R10, R65 Class 1, CISPR25 Class 5, CE, RoHS
• Other: 360° illumination, orange light, ultra-low profile

Included in the Set:

• Purelux Flash 400 Gen2 beacon panel
• Magnetic feet
• Power cable with cigarette lighter plug (4000 mm)
• Installation manual (EN/FI/SE/NO/DK)

Operating Modes and Usage:

Operating modes (9 different functions):

• Single flash (R65 Class 1)
• Fast double flash (R65 Class 1)
• Slow double flash
• Multiple flash
• Combined single/double flash
• Combined single/multiple flash
• Breathing effect ("breathe")
• Left directional arrow
• Right directional arrow

Quick Guide:

• Changing operating modes: Connect the lamp to the vehicle's cigarette lighter.
• The device has an On/Off button and a separate Mode button to switch between operating modes.
• Each press switches the lamp to the next flashing function.
