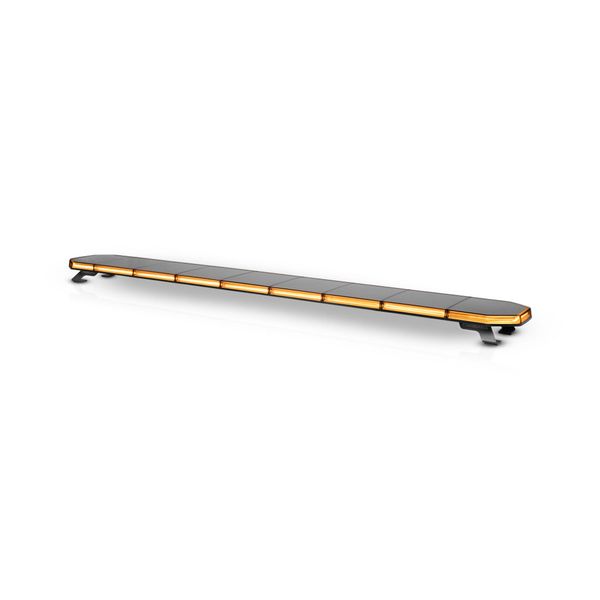

Professional beacon panel equipped with 12 different flashing functions, ECE R65 certification for day and night use, and the best radio frequency interference protection (CISPR25 Class 5). Suitable for both 12V and 24V systems.
Main Features:
- R65 approved beacon panel – suitable for use in traffic.
- Various operating modes – 12 different flashing functions, including directional arrows and Cruise mode.
- Day and night mode – adjusts brightness according to lighting conditions (ECE R65 Class 2).
- Strong and durable construction – IP69K protection class ensures complete dust and water resistance.

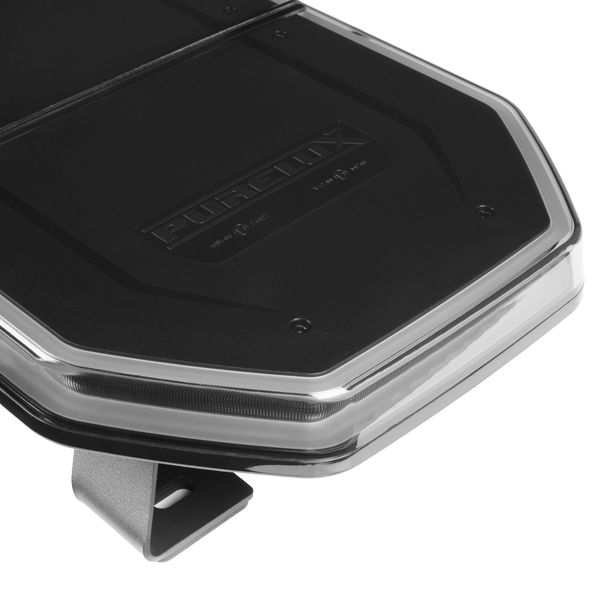

- Aerodynamic design – low profile reduces air resistance and noise.
- Durable frame – corrosion-, impact-, and vibration-resistant aluminum frame.
- Highest level of radio frequency interference protection – CISPR25 Class 5.
- Flexible installation – can be synchronized with multiple panels to achieve uniform lighting on larger vehicles.
- Suitable for many vehicles – ideal choice for trucks, trailers, and various work machines.
- Warranty: 24 months.
Technical data:
- Power supply voltage: 10-36 V
- Current consumption: 15.5A @ 12V / 6.2A @ 24V
- Rated power: 186 W

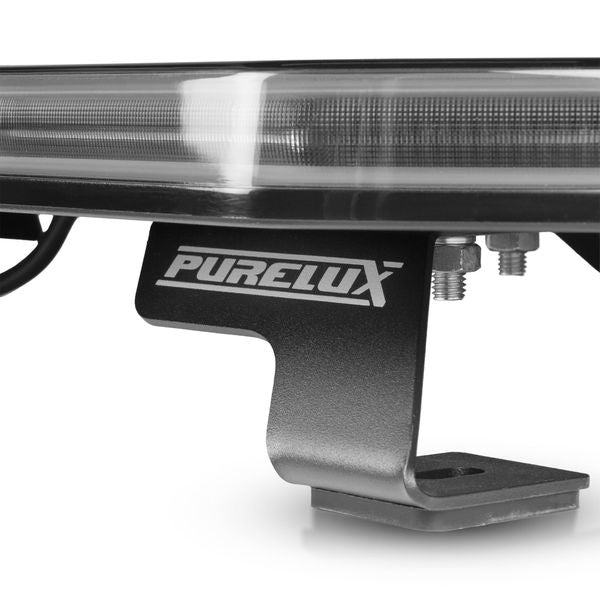

- Mounting: Mounting brackets and bolts
- Connection: Direct wiring (without plug)
- Cable length: 5000 mm

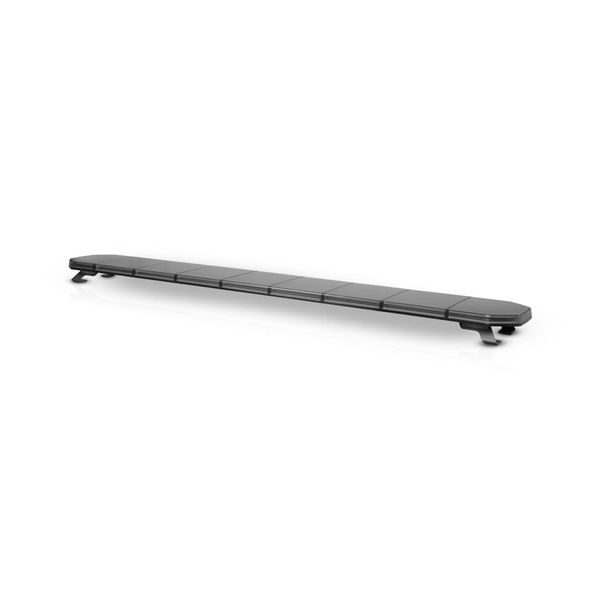

- Dimensions: 1784 x 35 x 240 mm (Width x Height x Depth)
- Height with mounting brackets: 77 mm
- Weight (with brackets): 10,500 g
- Protection class: IP69K
- Operating temperature: -40°C to +50°C
- Certificates: EMC: ECE R10, R65 Class 2, CISPR25 Class 5, CE, RoHS
Included in the set:
- Purelux Flash 1800 Gen2 warning panel
- Mounting brackets
- Mounting bolts
- Power cable (5000 mm, without plug)
- Installation manual (EN/FI/SE/NO/DK)
Operating modes and Connection:
-
Operating modes (12 different functions):
- Single flash (R65 Class 2)
- Fast double flash (R65 Class 2)
- Slow double flash
- Multiple flash
- Combined single/double flash
- Combined single/multiple flash
- Glowing effect ("breathe")
- Left-pointing arrow
- Right-pointing arrow
- Center-expanding arrow
- Cruise mode – steady light (unlike flashing warning light)
- Night mode (R65) – brightness decreases by 50%

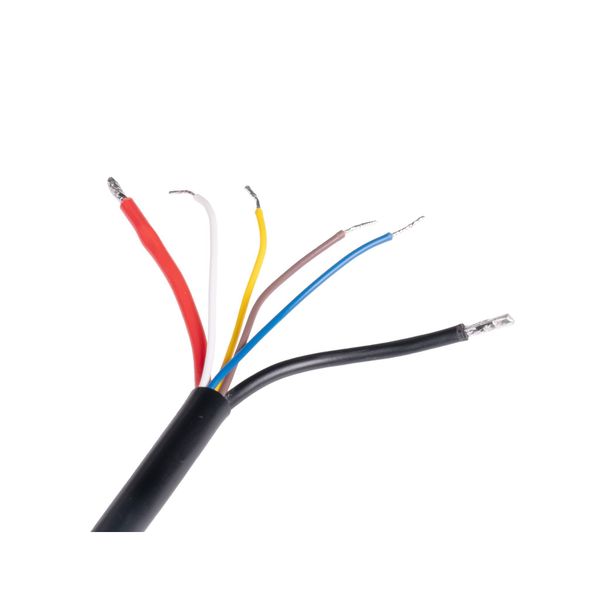

Wire connection:
- Red: Power (+)
- Black: Ground (-)
- Yellow: Warning light functions and synchronization
- Blue: Warning light #1 (R65 night mode)
- White: Cruise mode light
- Brown: Turn signals (left/right)
Function activation:
- Changing flashing functions: Touch the red and yellow wires for less than 1 second.
- Synchronization between multiple panels: Connect the yellow wires together.
- Night mode (R65) activation: Connect the blue wire to the red wire for 5 seconds.
- Steady light (Cruise mode): Connect the white wire to the red wire.
- Turn signals: Connect the brown wire to the red wire (1 second = left turn, 5 seconds = right turn).
