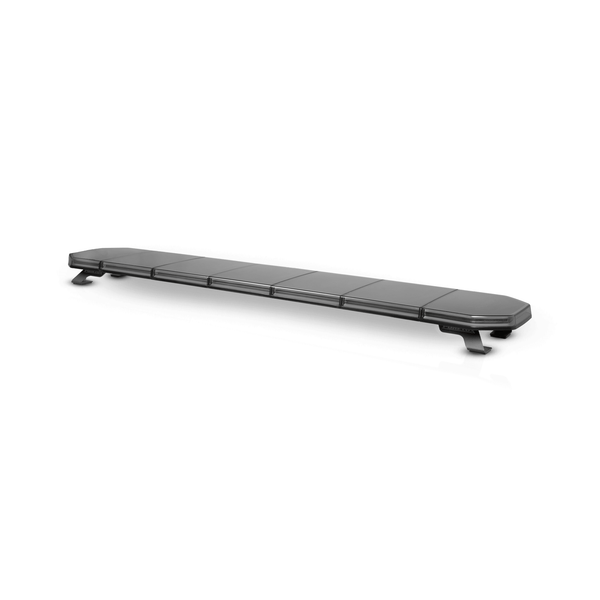

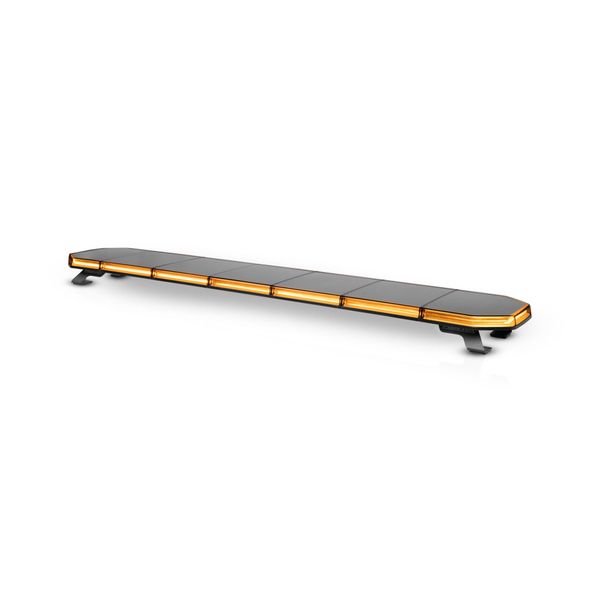

Purelux Flash 1400 Gen2 - 1400 mm / 150W / 12/24V

Low profile, powerful and versatile beacon panel equipped with 12 different flashing functions and compliant with the standards for the most demanding working conditions. Suitable for both 12V and 24V systems.

Main Features:

• ECE R65 approved beacon – suitable for official use in traffic.
• Various operating modes – 12 different flashing functions, including directional arrows and Cruise mode.
• Day and night mode – adjusts brightness according to lighting conditions (ECE R65 Class 2).
• Strong and durable construction – IP69K protection class ensures complete dust and water resistance.
• Best radio frequency protection – CISPR25 Class 5 ensures interference-free operation.
• Durable frame – corrosion-, impact-, and vibration-resistant aluminum frame.

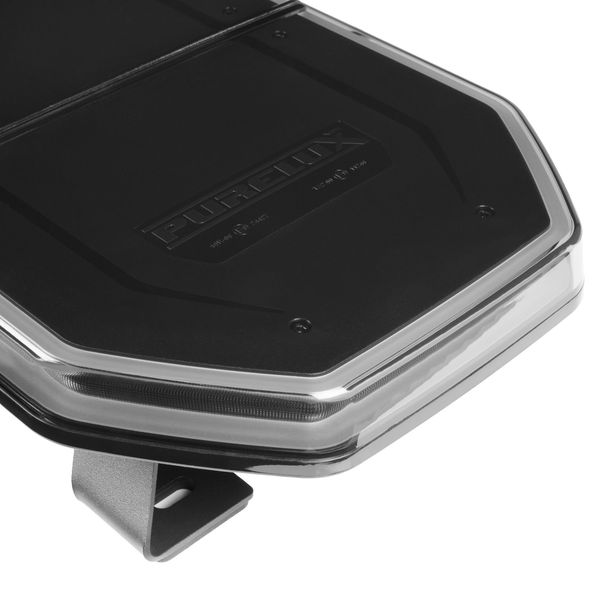

• Aerodynamic design – low profile reduces air resistance and noise.
• Flexible installation – can be synchronized with multiple panels to achieve uniform lighting on larger vehicles.
• Suitable for many vehicles – ideal choice for trucks, trailers, and work machines.
• Warranty: 24 months.

Technical Specifications:

• Power supply voltage: 10-36 V
• Current consumption: 12.45A @ 12V / 5.5A @ 24V
• Nominal power: 150 W

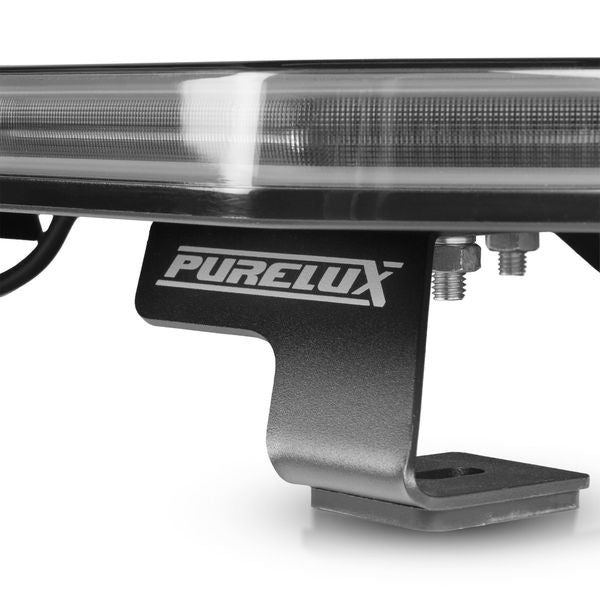

• Mounting: Mounting feet and bolts
• Connection: Direct wired (without plug)
• Cable length: 5000 mm
• Dimensions: 1384 x 35 x 240 mm (Width x Height x Depth)
• Height with mounting feet: 77 mm
• Weight (with feet): 8600 g
• Protection class: IP69K
• Operating temperature: -40°C to +50°C
• Certifications: EMC: ECE R10, R65 Class 2, CISPR25 Class 5, CE, RoHS
• Other: 360° illumination, orange light, ultra-low profile

Included in the Set:

1. Purelux Flash 1400 Gen2 beacon panel
2. Mounting feet
3. Mounting bolts
4. Power cable (5000 mm, without plug)
5. Installation manual (EN/FI/SE/NO/DK)

Operating Modes and Connection:

• Operating modes (12 different functions):
  1. Single flash (R65 Class 2)
  2. Fast double flash (R65 Class 2)
  3. Slow double flash
  4. Multiple flash
  5. Combined single/double flash
  6. Combined single/multiple flash
  7. Glowing effect ("breathe")
  8. Left directional arrow
  9. Right directional arrow
  10. Center expanding arrow
  11. Cruise mode – steady light (non-flashing warning light)
  12. Night mode (R65) – brightness reduced by 50%

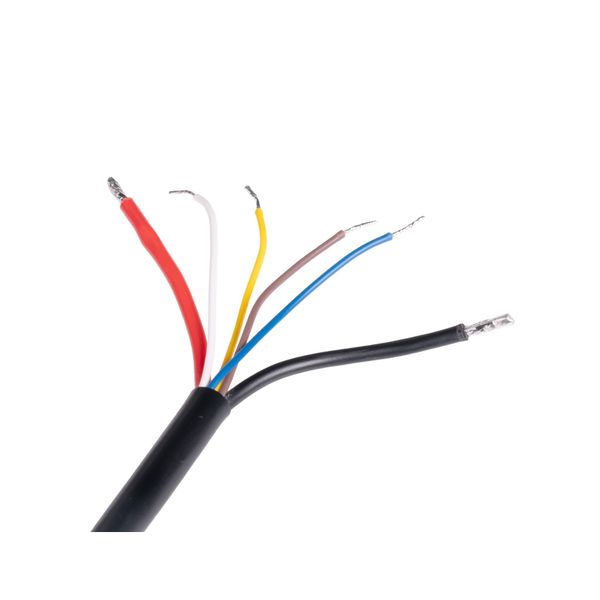

Wire Connection:

• Red: Power (+)
• Black: Ground (-)
• Yellow: Beacon panel functions and synchronization
• Blue: Beacon panel #1 (R65 night mode)
• White: Cruise mode light
• Brown: Directional lights (left/right)

Function Activation:

• Change flashing functions: Touch the red and yellow wires within 1 second.
• Synchronization between multiple panels: Connect the yellow wires together.
• Activate night mode (R65): Connect the blue wire to red for 5 seconds.
• Steady light (Cruise mode): Connect the white wire to red.
• Directional lights: Connect the brown wire to red (1 second = left direction, 5 seconds = right direction).
