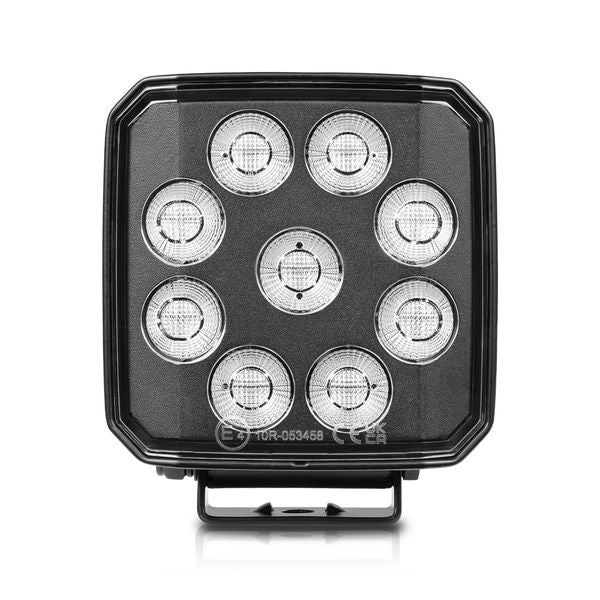

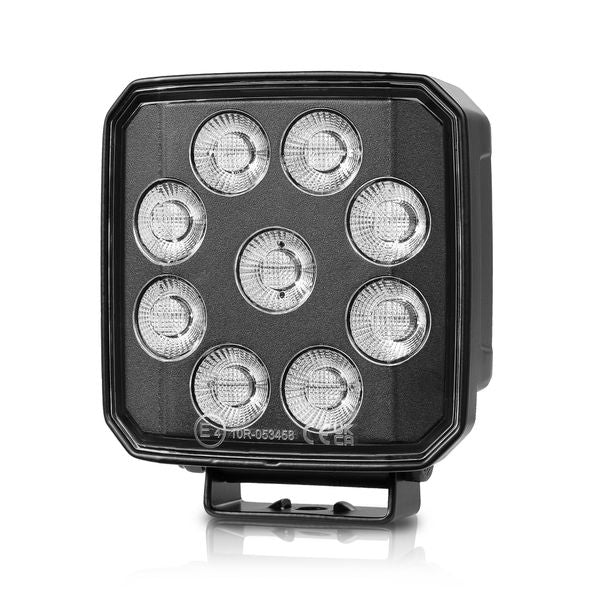

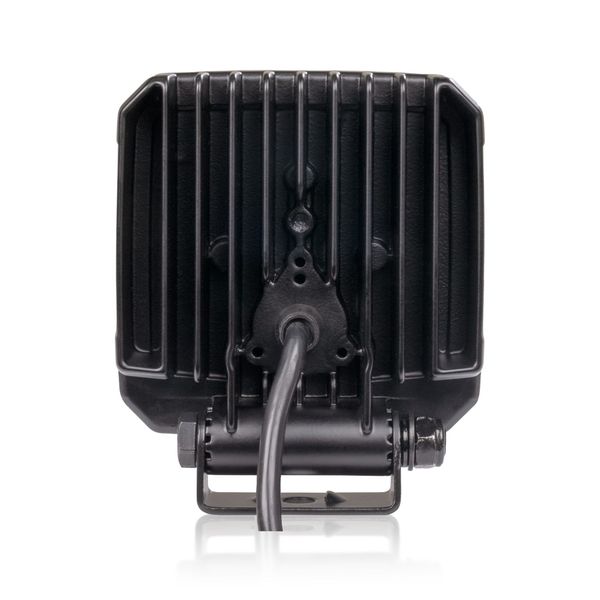

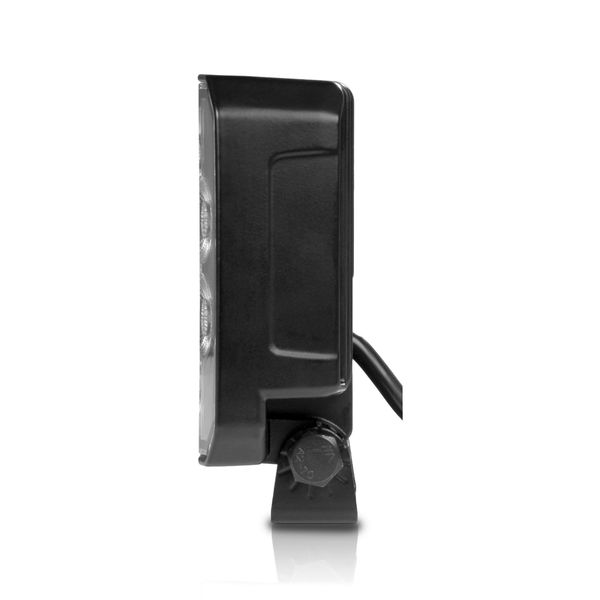

Purelux Black Raven Heat 65, 65W, Wide / Heated Glass

Durable and powerful work light with heated glass, wide light pattern, and elegant design – ideal for harsh conditions and demanding tasks.

Main Features:

• Luminous Flux: Measured 7530 lm.
• Beam Range: 86 m (@ 1 lux).
• Beam Type: Wide and uniform light pattern – perfect for illuminating the work area.
• Light Color Temperature: 5000K – neutral light reduces eye fatigue.
• Heated Lens: Allows lens defrosting and keeps it clean even in the coldest conditions.
• Stable Mounting Bracket: Strong stainless steel construction ensures stability even in the toughest environments.
• Durable Housing: Corrosion- and UV-resistant powder-coated aluminum frame.
• Protection Class: IP67/IP69K – fully waterproof and dustproof.
• Radio Interference Protection: ECE R10 standard.
• TCS Thermal Control System: Automatic temperature regulation to prevent overheating.
• Operating Voltage Range: 10–30V – suitable for both 12V and 24V systems.
• Warranty: 24 months.

Technical Data:

• Operating Voltage: 10–30 V (DC)
• Current Consumption: 4.91A @ 12V / 2.45A @ 24V
• Nominal Power: 65 W (manufacturer), 59 W (measured)
• Luminous Flux: 7530 lm (measured)
• Beam Range: 86 m (@ 1 lux)
• Color Temperature: 5000K (manufacturer and measured)
• LEDs: High-quality Osram LEDs
• Protection Class: IP67/IP69K
• Cable Length: 43 cm with DT-2 connector
• Dimensions: 100 x 100 x 40 mm (Height x Width x Depth)
• Height with Mounting: 115.5 mm
• Weight: 450 g
• Certifications: CE, RoHS, ECE R10
• Operating Temperature: -40°C to +85°C
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Black Raven Heat 65 work light
• 1 x Stainless steel mounting bracket
• 1 x Mounting bolt (M8)
• 1 x Power cable with DT-2 connector (43 cm)
• Installation and connection manual (EN/FI/SE/NO/DK)

Applications:

• Heavy Machinery: Excavators, tractors, front loaders.
• Trucks and Trailers: For reversing and work area illumination.
• Snow Plows and Winter Machinery: Reliable lighting even in the coldest conditions.
• Construction Equipment: For illuminating work sites on construction grounds.
• Industrial Use: Ideal for long-term tasks requiring a wide and strong light pattern.
