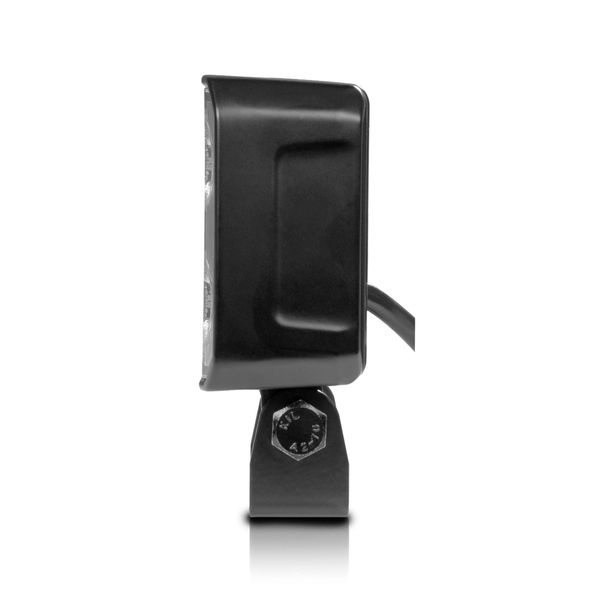

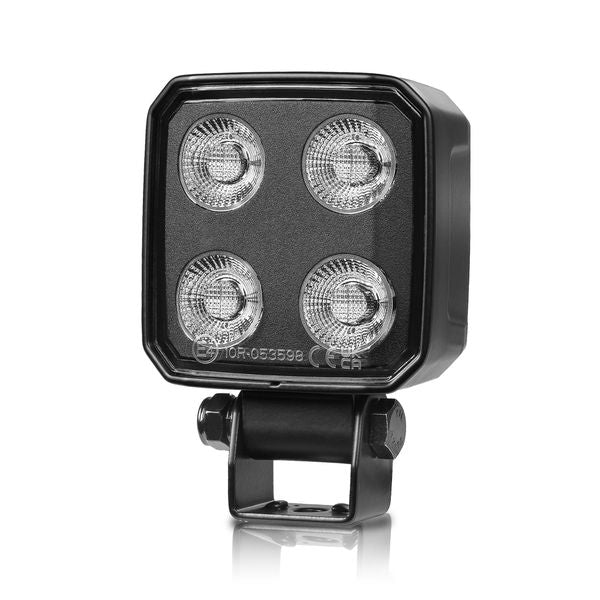

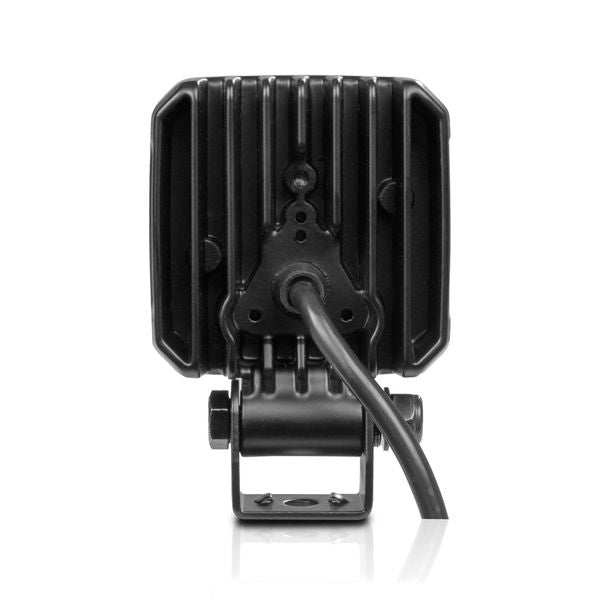

Purelux Black Raven Heat 30, 29W, Wide / Heated Glass

Durable work light designed for professionals, featuring a heated lens, wide beam, and elegant design that ensure excellent visibility even in the harshest conditions.

Main Features:

• Heated lens: Efficient ice and snow melting ensures optimal visibility in cold and wet conditions.
• Wide beam (85°): Uniform and wide light pattern effectively covers the immediate surroundings.
• Luminous flux: 3577 lm (measured)
• Beam range: 64 m (@ 1 lux)
• Neutral color temperature (5000K): Reduces eye fatigue and ensures accurate detail differentiation even during prolonged use.
• Stable mounting bracket: Strong stainless steel mount ensures vibration-free installation.
• IP67/IP69K Protection class: Fully waterproof and dustproof, suitable for use in harsh weather conditions.
• Radio interference protection: Complies with EMC ECE R10 standard.
• R148 and R23 Approval: Suitable for use as both a work light and reversing light.
• TCS Thermal Control System: Automatic temperature regulation ensures reliability even during long-term use.
• Wide operating voltage range (10–30V): Compatible with both 12V and 24V systems.

Technical Data:

• Power supply voltage: 10–30 V (DC)
• Current consumption: 2.41A @ 12V / 1.2A @ 24V
• Measured power: 29 W
• Luminous flux: 3577 lm (measured)
• Beam range: 64 m (@ 1 lux) / 128 m (@ 0.25 lux)
• Color temperature: 5000 K (measured: 5068 K)
• Protection class: IP67 / IP69K
• Mounting: Strong stainless steel bracket
• Connector: Direct wires, no plug
• Cable length: 43 cm
• Dimensions: 76 x 75 x 40 mm (Height x Width x Depth)
• Height with mount: 108 mm
• Weight: 340 g
• Certifications: ECE R10, R148, R23
• Operating temperature: -40°C to +85°C
• Warranty: 24 months

Included in the Package:

• 1 x Purelux Black Raven Heat 30 work light
• 1 x Strong stainless steel mounting bracket
• 1 x Mounting bolt (M8)
• 1 x Power cable (43 cm, without plug)
• 1 x Installation and connection manual (EN/FI/SE/NO/DK)

Installation and Usage Options:

• Trucks and snow blowers: Effective visibility even in extreme winter conditions.
• Tractors and excavators: Ideal for bucket and boom lighting.
• Work machines: Corrosion-resistant design withstands continuous vibrations and moisture.
• Reversing lights: R23 certification allows use as reversing light function.

👉 Purelux Black Raven Heat 30 – Work light built for tough conditions, with a heated lens and wide beam that ensure reliable visibility even in the most demanding work environments.
