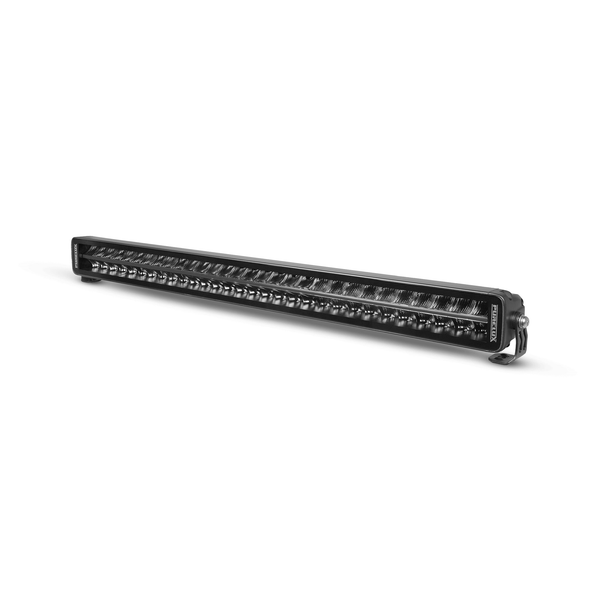

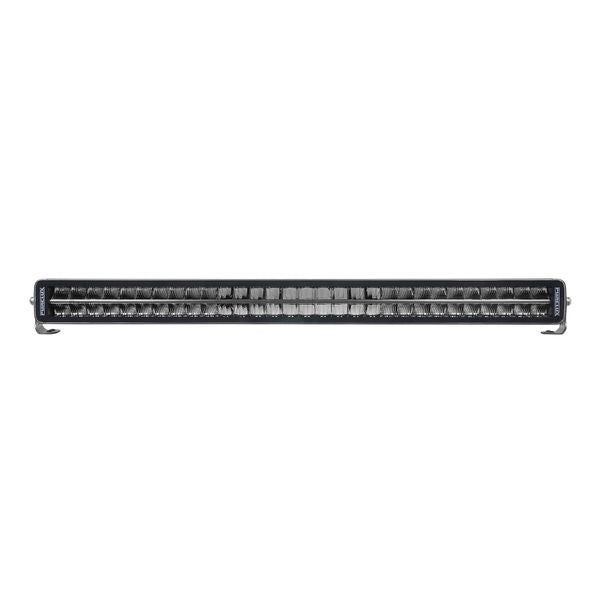

Purelux Black Boost S820 Gen3 - Straight / 82 cm / 300W / Ref. 50

Two-row LED auxiliary driving light combining dynamic two-tone parking light, two power modes, and impressive light output. The ideal choice for larger vehicles and demanding conditions!

Features:

• Purelux PowerBoost® technology: Two power modes – road-legal and maximum performance off-road.
• Light output: 18,694 lm (PowerBoost®) / 8,899 lm (road-legal mode).
• Beam distance: 661 m @ 1 lux (PowerBoost®) / 458 m @ 1 lux (road-legal mode).
• Optimal color temperature: 5700K ensures clear and natural light.
• Dynamic two-tone parking light: White and orange light.
• Frameless Lexa lens: Impact- and weather-resistant polycarbonate glass that does not accumulate dirt, ice, or snow.
• Two-row design: More powerful light distribution and better visibility over a wide area.
• Modern design: Black housing and darkened optical elements.
• Wide beam: Illuminates evenly both near and far distances.
• IP69K protection class: Maximum protection against water, dust, and impacts.
• Radio frequency interference protection: Complies with ECE R10 standard.
• Compatible with both 12V and 24V systems: Wide operating voltage range (9–32V).

Technical data:

• Operating voltage: 9–32 V (DC)
• Power: 300 W (nominal power)
• Current consumption:
  • PowerBoost®: 20.91A @ 12V / 10.45A @ 24V
  • Road-legal mode: 10.33A @ 12V / 5.16A @ 24V
• Luminous flux:
  • PowerBoost®: 18,694 lm (measured)
  • Road-legal mode: 8,899 lm (measured)
• Beam distance:
  • PowerBoost®: 661 m @ 1 lux / 1,322 m @ 0.25 lux
  • Road-legal mode: 458 m @ 1 lux / 916 m @ 0.25 lux
• Color temperature: 5700K (measured 5822K)
• Protection class: IP69K
• Certifications: ECE R10, R148, R149 (PowerBoost® mode is not allowed on public roads)
• Connection: DTP-2 plug
• Cable length: 50 cm
• Dimensions: 815 x 70 x 67 mm (Width x Height x Depth)
• Height with side mounts: 86 mm
• Height with lower mounting brackets: 89 mm
• Weight: 3300 g
• Warranty: 24 months

Included in the set:

• 1 x Purelux Black Boost S820 Gen3 LED auxiliary driving light

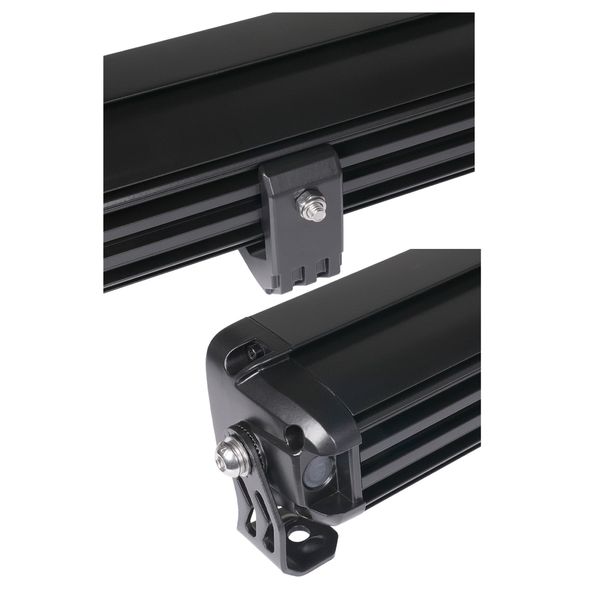

• 2 x Width-adjustable lower mounting brackets

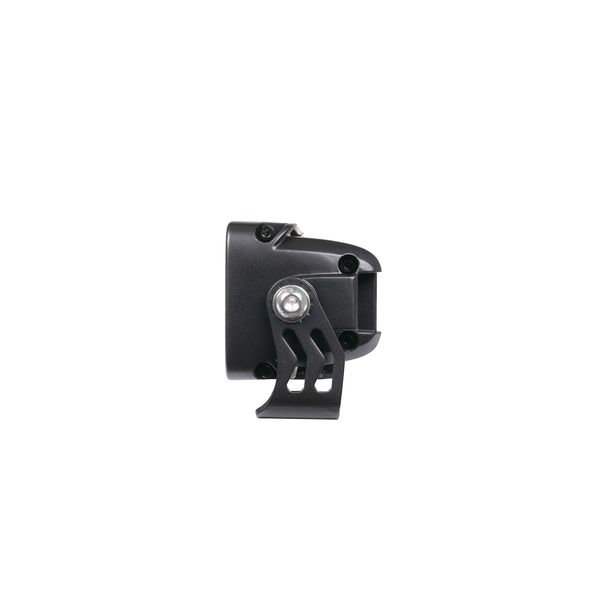

• 2 x Side mounting brackets
• 1 x Power cable socket
• 1 x Connection and installation manual (FI, SE, NO, DK, EN)

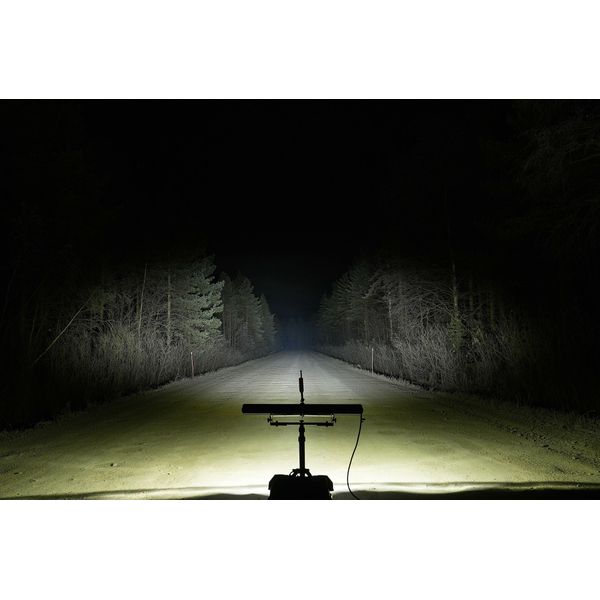

Beam characteristics:

• Combination beam: Wide horizontal beam and a long-reaching center spot.
• Two-row design: Higher light output and better light distribution.
• Vertical cutoff: Prevents light scatter up and down, improving visibility in snowy and foggy conditions.
• Neutral color temperature (5700K): Enhances visibility and reduces eye fatigue during prolonged use.

👉 The Purelux Black Boost S820 Gen3 combines exceptional light output, dynamic design, and reliability – the perfect LED auxiliary driving light for larger vehicles and challenging conditions!
