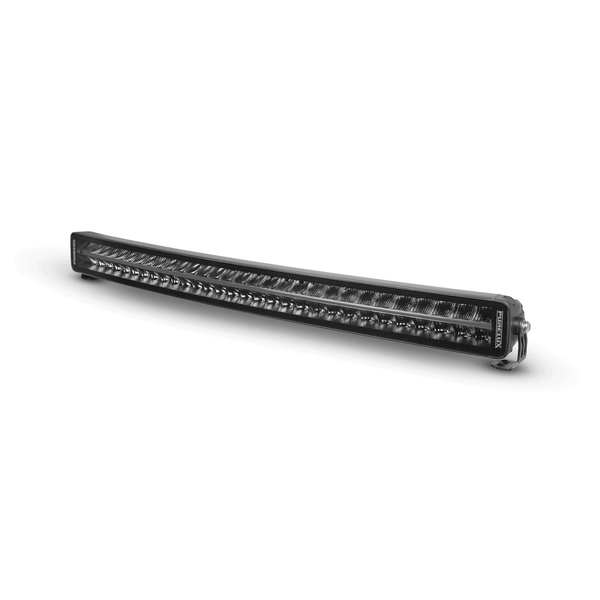

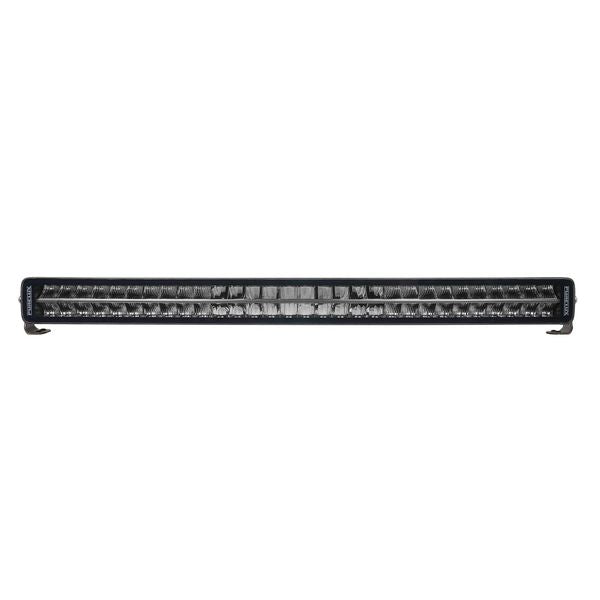

Purelux Black Boost C820 Gen3 - Kumer / 82 cm / 300W / Ref. 50

Purelux Black Boost C820 Gen3 is a dual-power mode auxiliary driving light that combines impressive brightness with elegantly modern design. This curved dual-layer LED auxiliary light offers a wide combination beam with a luminous flux of up to 18714 lumens (in PowerBoost® mode) and a beam distance of up to 576 meters @ 1 lux. The panel is also equipped with a dynamic two-color parking light (white/orange) and is designed for both road traffic and off-road use. The PowerBoost® mode allows maximizing illumination in challenging sections, while the lower power mode is suitable for road-legal use.

Main Features:

• PowerBoost® technology: Two power modes for easy and flexible use.
• Light output:
  • 18714 lm (PowerBoost®)
  • 8865 lm (road traffic mode).
• Beam distance:
  • 576 m @ 1 lux (PowerBoost®)
  • 385 m @ 1 lux (road traffic mode).
• Parking light: Dynamic two-color light strip (orange/white).
• Beam pattern: Wide combination beam that evenly illuminates both the road and its edges.

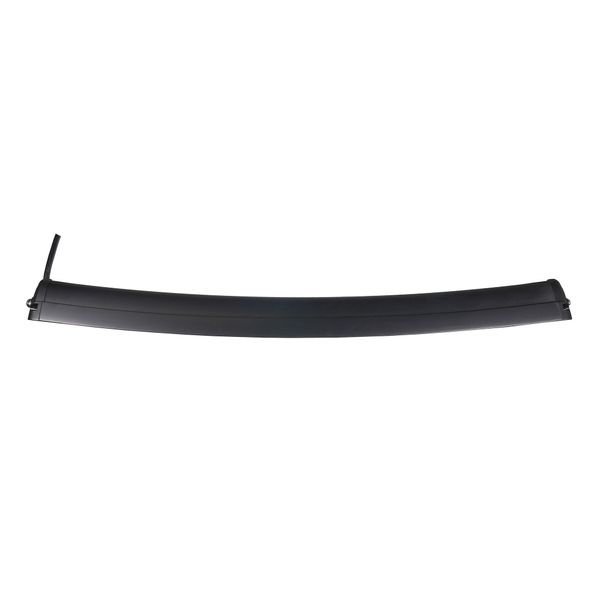

• Curved design: Ensures horizontal light spread expansion.
• Color temperature: 5700 K, providing natural and eye-friendly light.

Design and Durability:

• Curved aluminum housing: Powder-coated and UV-protected, ensuring corrosion and weather resistance.
• Polycarbonate lens: Virtually unbreakable and scratch-resistant.
• IP rating: IP69K, full protection against water, dust, and temperature fluctuations.
• Frameless front: Prevents accumulation of snow, dirt, and ice.

Installation and Connection:

• DTP-2 connector: Easy connection for auxiliary lighting power supply.
• Parking light options:
  • White: connect the white wire.
  • Orange: connect the yellow wire.
• Mode switching: On first use, road traffic mode activates. Power mode can be changed by holding the auxiliary light on for at least 2 seconds and then flashing twice consecutively.

Package Contents:

• Purelux Black Boost C820 Gen3 auxiliary light.

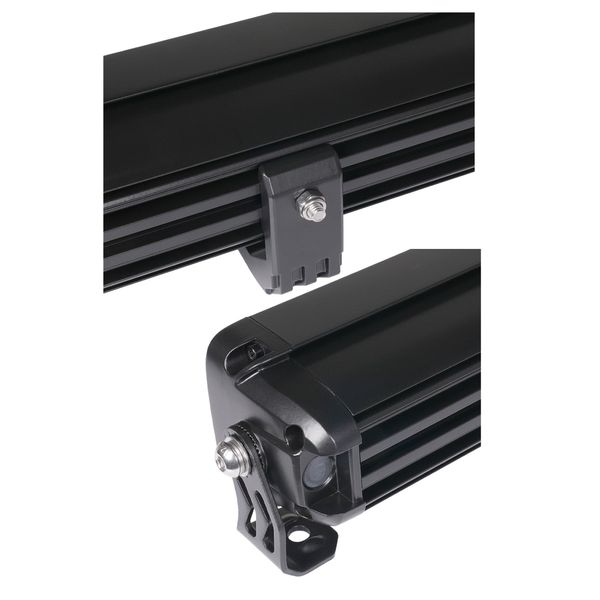

• 2 x adjustable lower mounts.

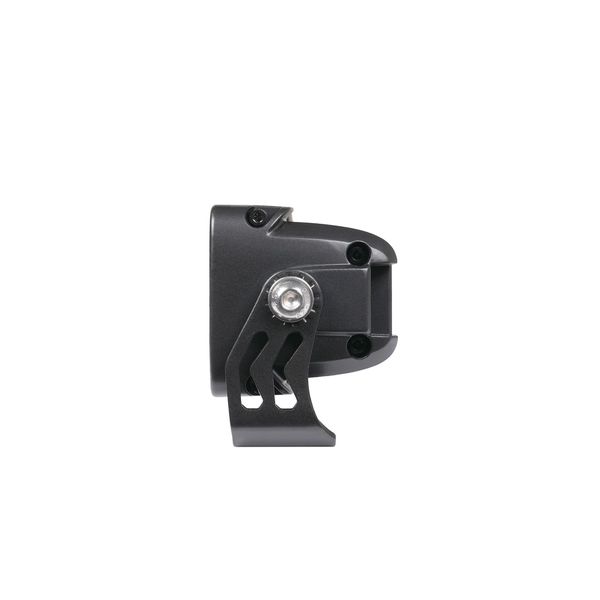

• 2 x side mounts.
• Power cable connector adapter.
• Installation and connection instructions (FI/SE/NO/DK/EN).

Technical Specifications:

• Manufacturer and model: Purelux Black Boost C820 Gen3
• LED: Osram
• Luminous flux:
  • 18714 lm (PowerBoost®)
  • 8865 lm (road traffic mode).
• Beam distance:
  • 576 m @ 1 lux (PowerBoost®)
  • 385 m @ 1 lux (road traffic mode).
• Color temperature: 5700 K (measured: 5753 K).
• Power:
  • Nominal: 300 W
  • 248 W (PowerBoost®, measured @ 24V)
  • 122 W (road traffic mode, measured @ 24V).
• Dimensions: 814.9 x 70 x 78.6 mm (width x height x depth).
• Weight: 3200 g
• Curvature radius: 2839 mm.
• IP rating: IP69K
• Approvals: ECE R10, R148, R149* (*PowerBoost® mode is not suitable for road traffic).

Purelux Black Boost C820 Gen3 is the ideal choice for those seeking a powerful and durable lighting solution for any purpose – from highway driving to off-road adventures.
