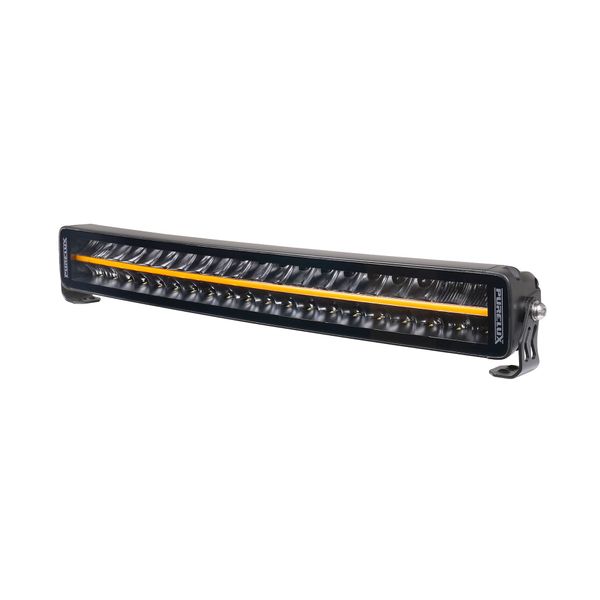

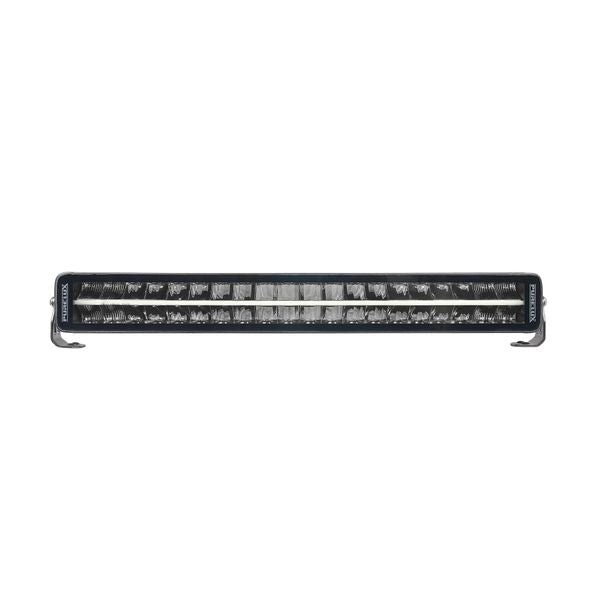

Purelux Black Boost C560 Gen3 - Kumer / 56 cm / 200W / Ref. 50

Stylish dual-row auxiliary light panel offering two power modes, dynamic two-tone parking light, and exceptional luminous performance. Excellent performance at an affordable price!

Features:

• Two power modes: Road traffic suitable mode and Purelux PowerBoost® maximum performance.
• Luminous output: 12666 lm (PowerBoost®) / 5988 lm (road traffic mode).
• Light beam: 539 m @ 1 lux (PowerBoost®) / 372 m @ 1 lux (road traffic mode).
• Optimal color temperature: 5700K ensures clear and natural light.
• Dynamic two-tone parking light: White and orange light.
• Stylish design: Black frame and tinted optics provide a modern look.

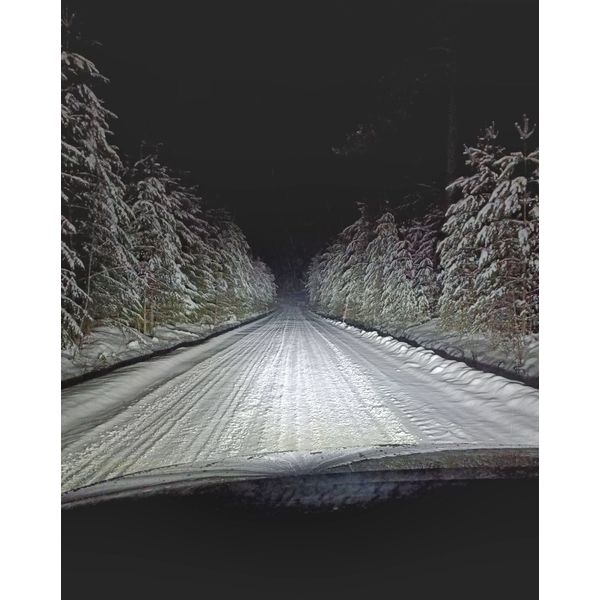

• Combination light beam: Wide and long-reaching beam illuminating road edges and forest borders.
• Frameless lens: Reduces accumulation of snow, ice, and dirt.
• IP69K protection class: Maximum protection against water, dust, and impacts.
• Radio frequency interference protection: Complies with ECE R10 standard.
• Easy installation: DTP-2 connector and adjustable mounting brackets.
• CAN-BUS compatibility: Can be added with XBB OBD Dongle & PowerUnit control relay.

Technical specifications:

• Operating voltage: 9–32 V (DC)
• Power: 200 W (nominal power)
• Current consumption:
  • PowerBoost®: 14.625A @ 12V / 7.31A @ 24V
  • Road traffic mode: 6.925A @ 12V / 3.45A @ 24V
• Luminous flux:
  • PowerBoost®: 12666 lm (measured)
  • Road traffic mode: 5988 lm (measured)
• Light beam:
  • PowerBoost®: 539 m @ 1 lux / 1078 m @ 0.25 lux
  • Road traffic mode: 372 m @ 1 lux / 744 m @ 0.25 lux
• Color temperature: 5700K (measured 5698K)
• Protection class: IP69K
• Certifications: ECE R10, R148, R149 (PowerBoost® mode is not allowed in road traffic)
• Connection: DTP-2 connector
• Cable length: 50 cm
• Dimensions: 562.9 x 70 x 78.6 mm (Width x Height x Depth)
• Height with side mounts: 86 mm
• Height with lower mounting brackets: 89 mm
• Weight: 2300 g

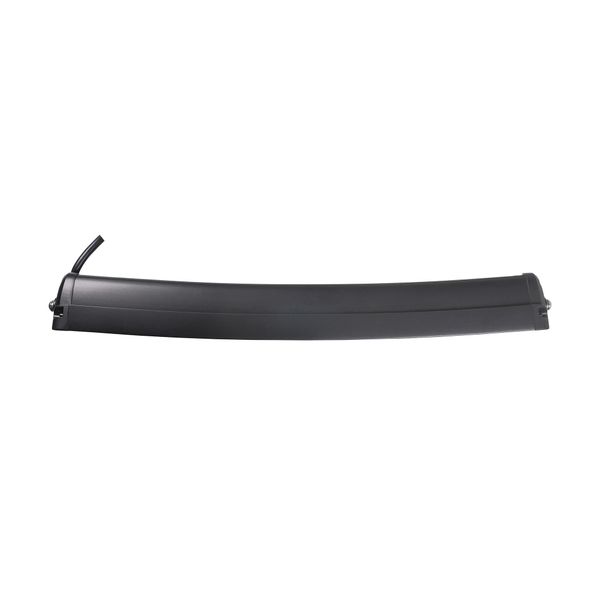

• Curvature radius: 2839 mm
• Warranty: 24 months

Included in the set:

• 1 x Purelux Black Boost C560 Gen3 auxiliary light

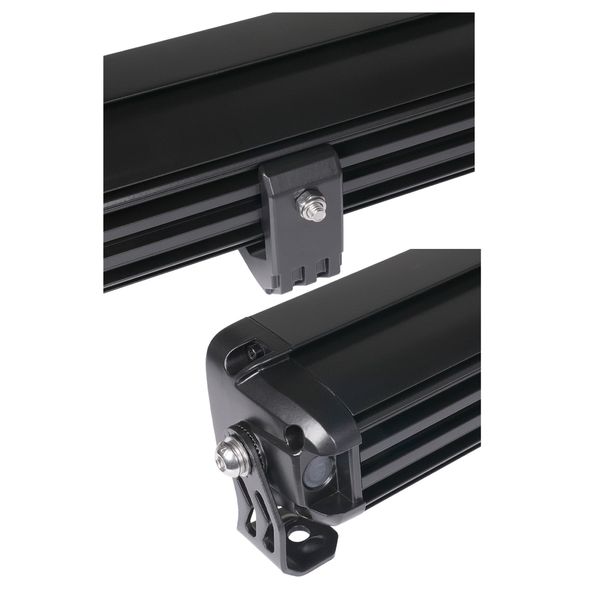

• 2 x Width adjustable lower mounting brackets

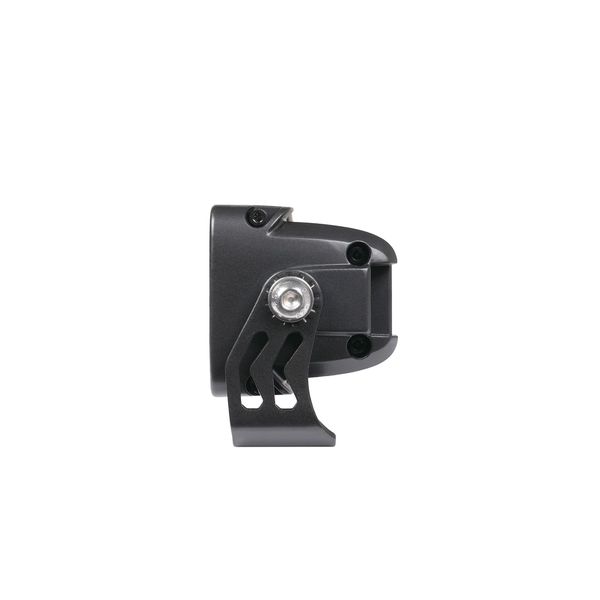

• 2 x Side mounting brackets
• 1 x Power cable socket (DTP-2)
• 1 x Connection and installation manual (FI, SE, NO, DK, EN)

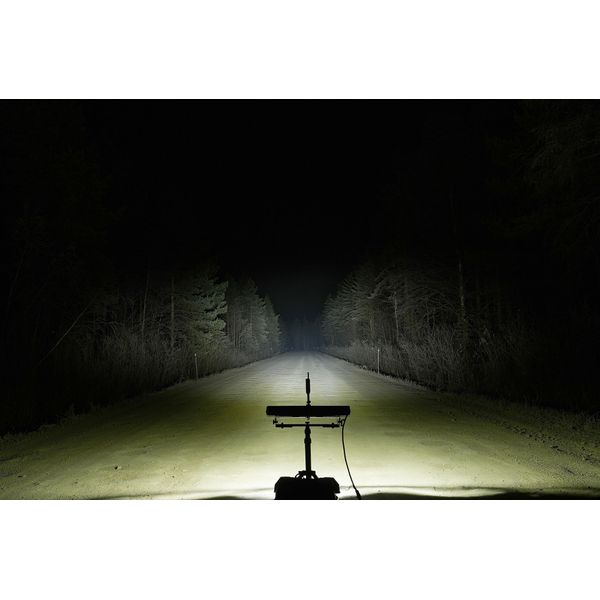

Light beam characteristics:

• Curved design: Wider light beam to the sides, suitable for low installations.
• Straight design: Maximum light range straight ahead.
• Neutral color temperature (5700K): Ensures optimal visibility in various weather conditions.

Installation instructions:

1. Power connection: Connect the DTP-2 plug to the auxiliary light.
2. Parking light: Yellow wire for orange parking light, white wire for white parking light.
3. Installation: Use adjustable brackets to optimize installation.

👉 Purelux Black Boost C560 Gen3 combines power, style, and practicality – the ideal choice for both work machines and off-road vehicles!
