LiTime 12V 280Ah Plus LiFePO₄
LiTime 12V 280Ah Plus LiFePO₄
Delivery in 4–12 working days. The product is available from the partner's warehouse and will be ordered after purchase confirmation.
Couldn't load pickup availability

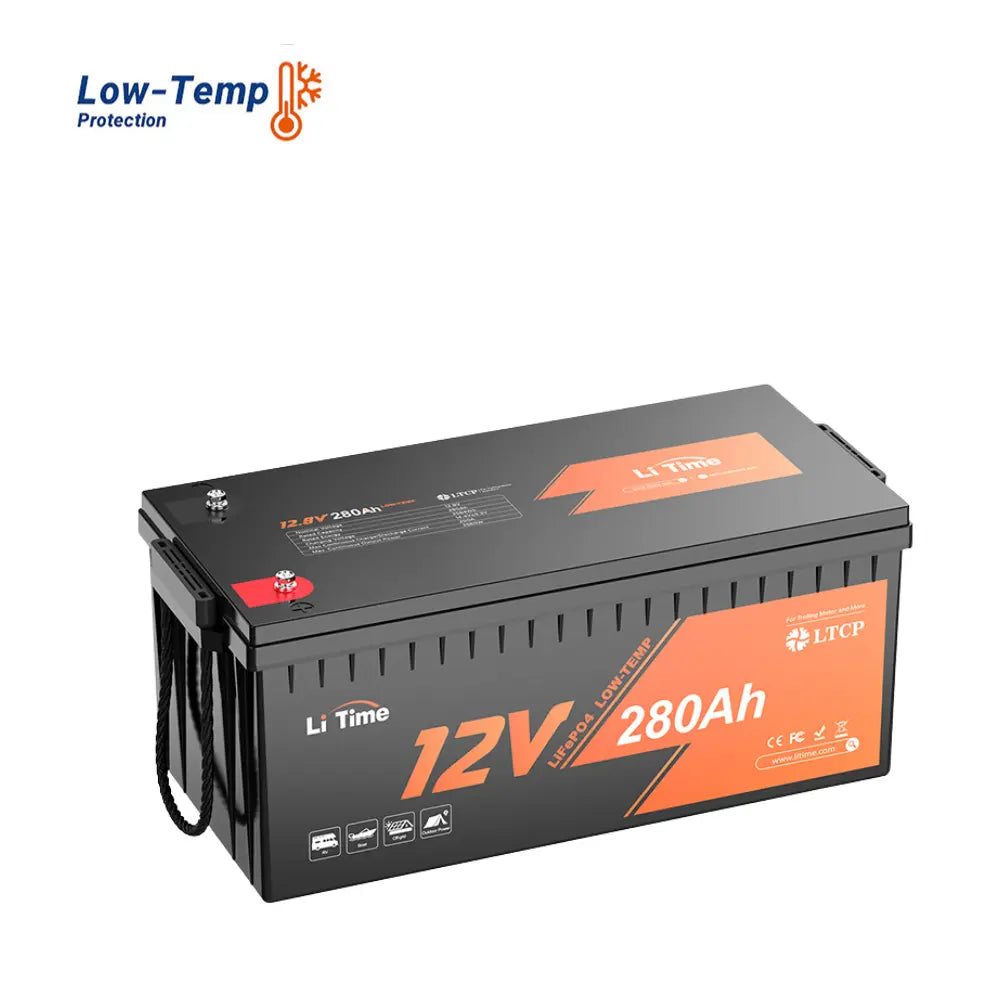

LiTime 12V 280Ah Plus LiFePO₄ Battery Low-Temp Protection is a high-capacity deep cycle battery designed for motorhomes, boats, solar energy storage systems, and other high-energy-demand applications. With 3584 Wh usable energy capacity, a powerful 200 A Smart BMS, and low-temperature protection, it ensures reliable power supply even in demanding conditions. Thanks to EV Grade A LiFePO₄ cells, IP65 protection rating, and over 4000 charge cycles, the battery offers long-lasting and safe usage.
Why choose this model?
- 3584 Wh usable energy capacity for high-energy-demand systems
- 200 A Smart BMS for high-load devices
- Low-temperature charging and discharging protection
- Up to 2560 W continuous output power
- Expandable up to 4P4S system (57.3 kWh)
- Approximately 50% lighter than equivalent lead-acid batteries
Features
- EV Grade A LiFePO₄ battery cells
- 200 A Smart BMS with over 20 protection functions
- 3584 Wh energy capacity
- Up to 2560 W continuous output power
- Over 4000 charge cycles at 100% DoD
- Up to 15,000 charge cycles at 60% DoD
- IP65 protection rating
- Low-temperature protection
- Very low self-discharge (about 3% per month)
- Expandable up to 4P4S system
- 5-year manufacturer warranty
Why choose a LiFePO₄ battery?
LiTime batteries use high-quality lithium iron phosphate (LiFePO₄) cells, considered one of the safest and most reliable lithium battery technologies. Compared to lead-acid batteries, LiFePO₄ batteries are significantly lighter, offer higher efficiency, and allow nearly full use of the battery capacity. Their high thermal stability and long service life make them an ideal choice for motorhomes, boats, and stationary energy storage systems.
- Long service life
- High thermal stability
- Up to 100% usable battery capacity
- Significantly lighter weight compared to lead-acid batteries
- Fast charging
- Maintenance-free operation
Smart BMS protection system
The built-in 200 A Smart BMS continuously monitors battery operation and includes more than 20 different protection functions. The system protects the battery from overcharging, overdischarging, overcurrent, short circuits, overheating, and charging at low temperatures. Additionally, the battery features automatic recovery after overload and enhanced protection against dust, water, and salty environments.
- Overcharge protection
- Overdischarge protection
- Overcurrent protection
- Short circuit protection
- Overload protection with automatic recovery
- Overheat protection
- Low-temperature charging protection (0 °C)
- Low-temperature discharging protection (-20 °C)
- Automatic cell balancing
- Enhanced protection against dust, water, and salty environments
Technical specifications
| Model | LiTime 12V 280Ah Plus Low-Temp Protection |
|---|---|
| Battery chemistry | LiFePO₄ (Lithium iron phosphate) |
| Nominal voltage | 12.8 V |
| Capacity | 280 Ah |
| Energy capacity | 3584 Wh |
| Smart BMS | 200 A |
| Maximum continuous charging current | 280 A (1C) |
| Maximum continuous discharging current | 200 A |
| Maximum continuous output power | 2560 W |
| Low-temperature protection | Yes |
| Expandable | Up to 4P4S (57.3 kWh) |
| Number of cycles | 4000+ @100% DoD, up to 15,000 @60% DoD |
| Protection rating | IP65 |
| Certifications | UL1973, FCC, CE, RoHS, UN38.3, ABYC E-13 |
| Dimensions (W × L × H) | 522 × 240 × 218 mm |
| Weight | 26.7 kg |
| Terminals | M8 |
| Warranty | 5 years |
Included in the package
- LiTime 12V 280Ah Plus LiFePO₄ battery
- User manual
Suitable for use in
- Motorhomes and campervans
- Boats and yachts
- Solar energy storage systems
- Off-grid electrical systems
- Home backup power systems (UPS)
- Power supply for electric trolling motors (30–70 lb)
