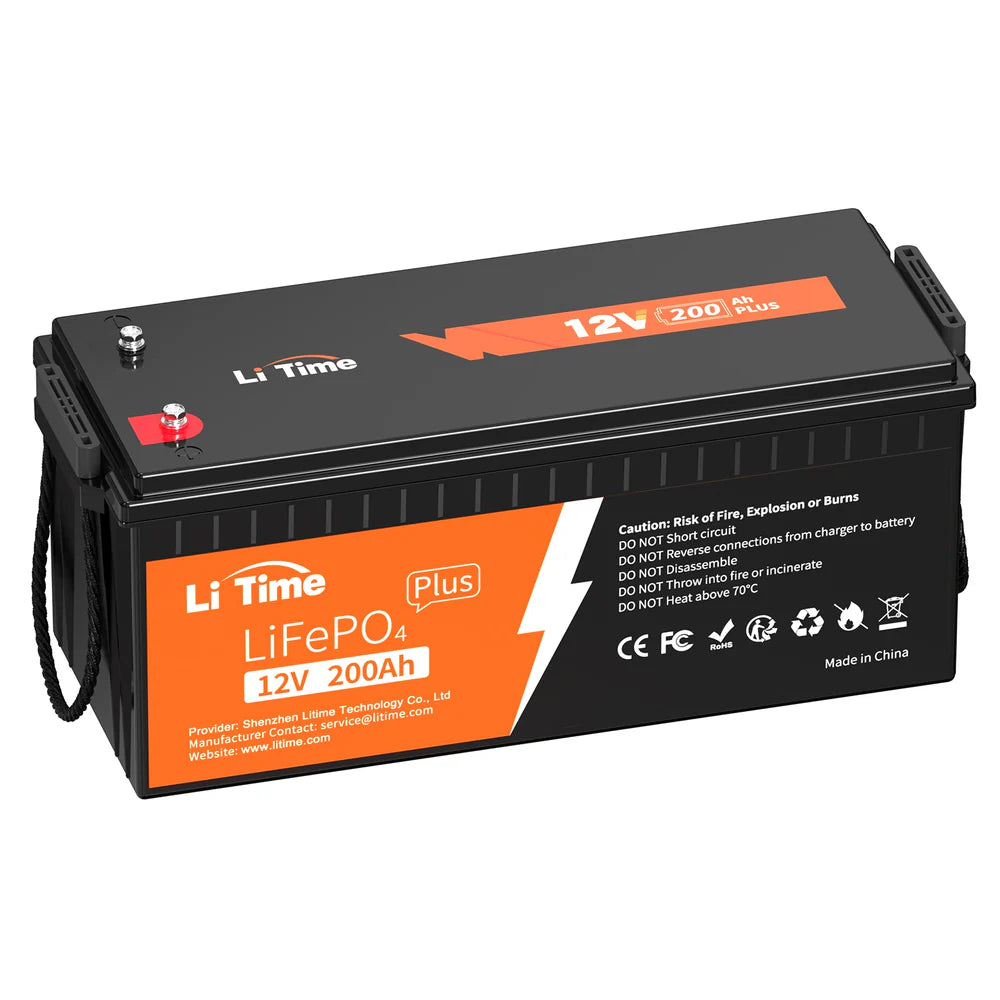

LiTime 12V 200Ah Plus LiFePO₄ battery
LiTime 12V 200Ah Plus LiFePO₄ battery
Delivery in 4–12 working days. The product is available from the partner's warehouse and will be ordered after purchase confirmation.
Couldn't load pickup availability
LiTime 12V 200Ah Plus LiFePO₄ battery is a high-capacity deep cycle battery ideal for motorhomes, boats, caravans, solar energy storage systems, and other high energy demand applications. The battery uses high-quality EV Grade A LiFePO₄ cells and is equipped with a powerful 200 A Smart BMS protection system, allowing the use of devices with up to 2560 W continuous power. The standard Group 4D case makes battery installation easy and allows it to fit into many existing battery boxes.
Why choose this model?
- 2560 Wh usable energy capacity
- Powerful 200 A Smart BMS
- Up to 2560 W continuous output power
- Standard Group 4D case
- Expandable up to a 4P4S system (40.96 kWh)
- Approximately three times lighter than an equivalent lead-acid battery
Features
- EV Grade A prismatic LiFePO₄ battery cells
- 200 A Smart BMS
- 2560 Wh energy capacity
- Up to 2560 W continuous output power
- Over 4000 charge cycles at 100% DoD
- Up to 15,000 charge cycles at 60% DoD
- IP65 protection class
- Very low self-discharge
- Expandable up to a 4P4S system
- 5-year manufacturer warranty
Why choose a LiFePO₄ battery?
LiTime uses high-quality EV Grade A lithium iron phosphate (LiFePO₄) battery cells, considered one of the safest and most reliable lithium battery technologies. Compared to lead-acid batteries, LiFePO₄ batteries are significantly lighter, allow nearly full use of battery capacity, and offer a much longer service life. Additionally, LiFePO₄ technology is thermally more stable and does not pose the same fire risk as conventional lithium-ion batteries.
- Long service life
- High thermal stability
- Up to 100% usable battery capacity
- Significantly lighter weight compared to lead-acid batteries
- Fast charging
- Maintenance-free use
Smart BMS protection system
Built-in 200 A Smart BMS protects the battery against overcharge, over-discharge, overcurrent, short circuit, overload, and overheating. Additionally, the system automatically balances battery cells, ensuring maximum reliability and long service life. The BMS includes more than 20 different protection functions.
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short circuit protection
- Overload protection
- Overheat protection
- Automatic cell balancing
Technical specifications
| Model | LiTime 12V 200Ah Plus |
|---|---|
| Battery chemistry | LiFePO₄ (Lithium iron phosphate) |
| Nominal voltage | 12.8 V |
| Capacity | 200 Ah |
| Energy capacity | 2560 Wh |
| Smart BMS | 200 A |
| Maximum continuous charge current | 200 A |
| Maximum continuous discharge current | 200 A |
| Maximum continuous output power | 2560 W |
| Expandable | Up to 4P4S (40.96 kWh) |
| Number of cycles | 4000 @100% DoD, 6000 @80% DoD, up to 15,000 @60% DoD |
| Protection class | IP65 |
| Certifications | UL1973, CE, FCC, RoHS, UN38.3 |
| Dimensions (W × L × H) | 533 × 208 × 216 mm |
| Weight | 20.7 kg |
| Terminals | M8 |
| Case type | Group 4D |
| Warranty | 5 years |
Included in the set
- LiTime 12V 200Ah Plus LiFePO₄ battery
- User manual
Suitable for use
- In motorhomes and campervans
- In caravans
- In boats and yachts
- In solar energy storage systems
- In off-grid electrical systems
- In home energy storage systems
- In high-power inverter systems
