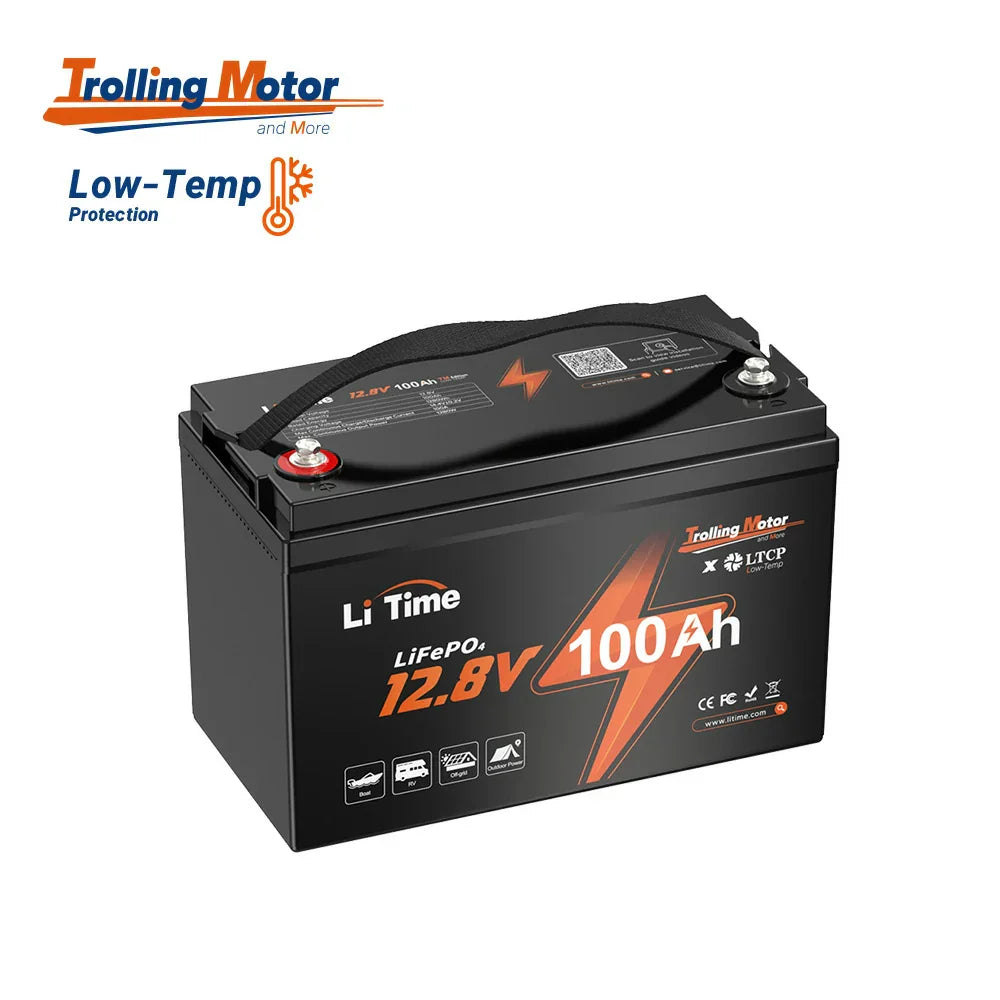

LiTime 12V 100Ah TM LiFePO₄ boat battery
LiTime 12V 100Ah TM LiFePO₄ boat battery
Delivery in 4–12 working days. The product is available from the partner's warehouse and will be ordered after purchase confirmation.
Couldn't load pickup availability
LiTime 12V 100Ah TM LiFePO₄ boat battery is a deep cycle battery specially designed for electric outboard motors, trolling motors, and other marine applications. The battery uses high-quality EV Grade A LiFePO₄ cells and is equipped with an intelligent 100 A Smart BMS protection system. Low temperature protection, high discharge capacity, and advanced moisture and corrosion protection make it an excellent choice for fishing boats and other small vessels.
Why choose this model?
- Specifically designed for electric outboard and trolling motors
- Suitable for 30–70 lbs thrust electric motors
- 100 A Smart BMS with high reliability
- 1280 Wh usable energy capacity
- Low temperature charging and discharging protection
- Advanced protection against moisture, dust, and salty environments
Features
- EV Grade A prismatic LiFePO₄ battery cells
- 100 A Smart BMS
- 1280 Wh energy capacity
- Up to 1280 W continuous output power
- 2C short-term discharge capability
- Low temperature charging and discharging protection
- IP65 protection class
- Over 4000 charge cycles at 100% DoD
- Expandable up to a 4P4S system
- 5-year manufacturer warranty
Why choose a LiFePO₄ battery?
LiTime uses high-quality EV Grade A lithium iron phosphate (LiFePO₄) cells, offering significantly longer lifespan, higher efficiency, and lower weight than traditional lead-acid batteries. LiFePO₄ technology is known for its high thermal stability and safety, making it ideal for marine applications.
- Long service life
- High thermal stability
- Up to 100% usable battery capacity
- Significantly lighter weight compared to lead-acid batteries
- Fast charging
- Maintenance-free use
Smart BMS protection system
Integrated 100 A Smart BMS protects the battery against overcharge, over-discharge, overload, short circuit, overcurrent, and overheating. Additionally, the system includes low temperature protection and advanced protection against moisture, dust, and salty environments. Automatic cell balancing helps ensure maximum battery lifespan and reliability.
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short circuit protection
- Overload protection
- Overheat protection
- Low temperature charging protection
- Low temperature discharge protection
- Automatic cell balancing
Technical specifications
| Model | LiTime 12V 100Ah TM |
|---|---|
| Battery chemistry | LiFePO₄ (Lithium iron phosphate) |
| Nominal voltage | 12.8 V |
| Capacity | 100 Ah |
| Energy capacity | 1280 Wh |
| Smart BMS | 100 A |
| Maximum continuous charging current | 100 A |
| Maximum continuous discharge current | 100 A |
| Short-term discharge current | 200 A (30 s) |
| Peak current | 500 A (1 s) |
| Maximum continuous output power | 1280 W |
| Low temperature protection | Yes |
| Expandable | Up to 4P4S |
| Number of cycles | 4000 @100% DoD, 6000 @80% DoD, up to 15,000 @60% DoD |
| Protection class | IP65 |
| Certifications | UL1973, CE, FCC, RoHS, UN38.3 |
| Dimensions (W × L × H) | 330 × 172 × 215 mm |
| Weight | 9.9 kg |
| Terminals | M8 |
| Warranty | 5 years |
Included in the set
- LiTime 12V 100Ah TM LiFePO₄ battery
- User manual
Suitable for use
- As a power source for electric outboard motors
- For trolling motors
- In fishing boats
- In inflatable boats
- On small boats
- For powering navigation lights and onboard equipment
- 12 V in marine electrical systems
