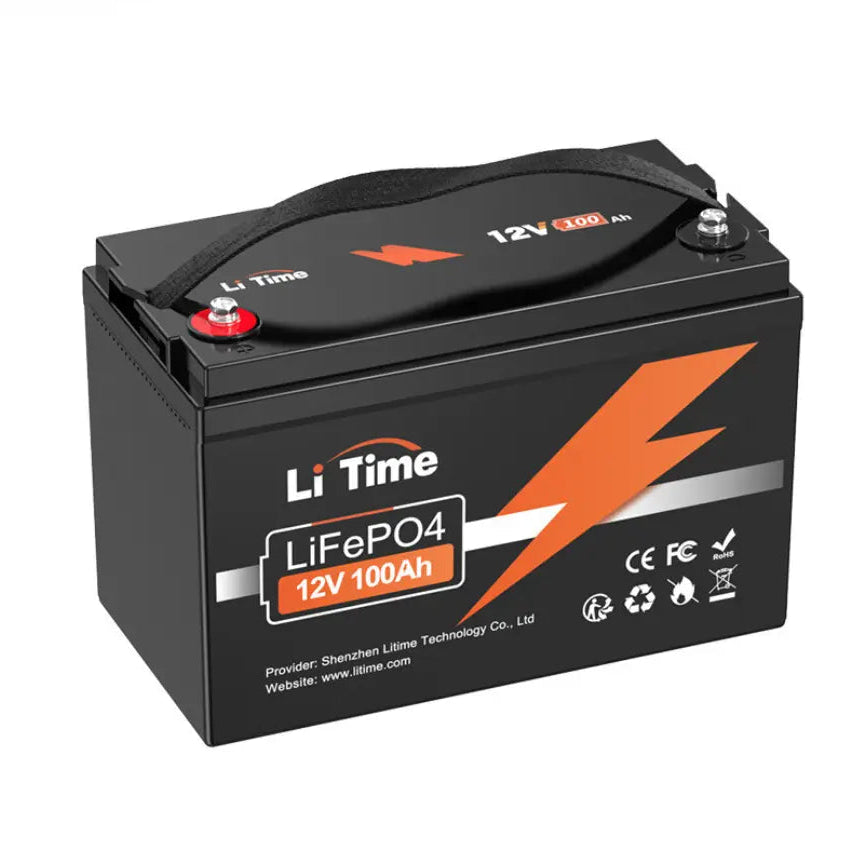

LiTime 12V 100Ah LiFePO₄ battery
LiTime 12V 100Ah LiFePO₄ battery
Delivery in 4–12 working days. The product is available from the partner's warehouse and will be ordered after purchase confirmation.
Couldn't load pickup availability
LiTime 12V 100Ah LiFePO₄ battery is a reliable deep cycle battery ideal for motorhomes, caravans, boats, solar energy storage systems, and off-grid electrical solutions. The battery uses high-quality EV Grade A prismatic LiFePO₄ cells and is equipped with an intelligent 100 A Smart BMS protection system that ensures long service life and safe operation. The standard Group 31 case makes it an excellent lead-acid battery replacement without major modifications.
Why choose this model?
- Standard Group 31 case – easy lead-acid battery replacement
- 1280 Wh usable energy capacity
- 100 A Smart BMS
- Up to 1280 W continuous output power
- Weight only about 11 kg
- Expandable up to 4P4S system (20.48 kWh)
Features
- EV Grade A prismatic LiFePO₄ battery cells
- 100 A Smart BMS
- 1280 Wh energy capacity
- Up to 1280 W continuous output power
- Over 4,000 charge cycles at 100% DoD
- Up to 15,000 charge cycles at 60% DoD
- IP65 protection class
- Very low self-discharge (about 3% per month)
- Expandable up to 4P4S system
- 5-year manufacturer warranty
Why choose a LiFePO₄ battery?
LiTime uses high-quality EV Grade A lithium iron phosphate (LiFePO₄) cells, considered one of the safest and most reliable lithium battery technologies. Compared to traditional lead-acid batteries, LiFePO₄ batteries are significantly lighter, offer higher efficiency, and allow nearly full use of battery capacity. Additionally, their service life is several times longer and maintenance requirements are minimal.
- Long service life
- High thermal stability
- Up to 100% usable battery capacity
- Significantly lighter weight compared to lead-acid batteries
- Faster charging
- Maintenance-free use
Smart BMS protection system
The integrated 100 A Smart BMS continuously monitors the battery status and protects the battery cells from overcharge, over-discharge, overcurrent, short circuit, and overheating. Additionally, the system automatically balances the battery cells to ensure maximum reliability and long service life.
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short circuit protection
- Overload protection
- Overheat protection
- Automatic cell balancing
Technical specifications
| Model | LiTime 12V 100Ah LiFePO₄ |
|---|---|
| Battery chemistry | LiFePO₄ (Lithium iron phosphate) |
| Nominal voltage | 12.8 V |
| Capacity | 100 Ah |
| Energy capacity | 1280 Wh |
| Smart BMS | 100 A |
| Maximum continuous charging current | 100 A |
| Maximum continuous discharge current | 100 A |
| Peak current | 280 A (5 seconds) |
| Maximum continuous output power | 1280 W |
| Expandable | Up to 4P4S (20.48 kWh) |
| Recommended charging current | 20 A |
| Charging voltage | 14.4 V ± 0.2 V |
| Number of cycles | 4000 @100% DoD, 6000 @80% DoD, up to 15,000 @60% DoD |
| Protection class | IP65 |
| Certifications | UL1973, CE, FCC, RoHS, UN38.3 |
| Dimensions (W × L × H) | 329 × 172 × 214 mm |
| Weight | 11 kg |
| Terminals | M8 |
| Housing material | ABS flame-retardant plastic |
| Warranty | 5 years |
Included in the set
- LiTime 12V 100Ah LiFePO₄ battery
- User manual
Suitable for use
- In motorhomes and campervans
- In caravans
- In boats and small vessels
- In solar energy storage systems
- In off-grid electrical systems
- In home backup power systems (UPS)
- In 12 V inverter systems
- Power source for trolling motors (30–70 lbs)
