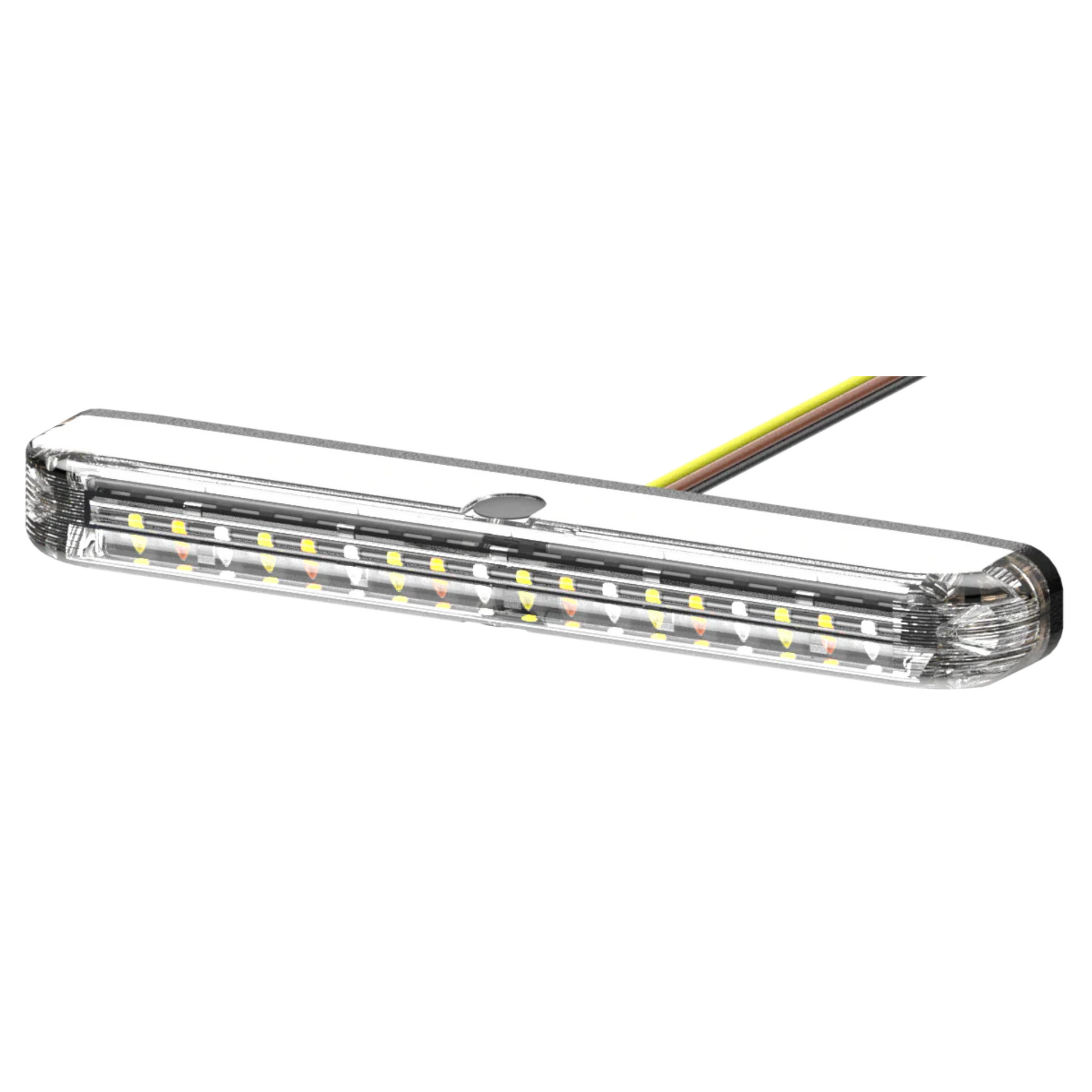

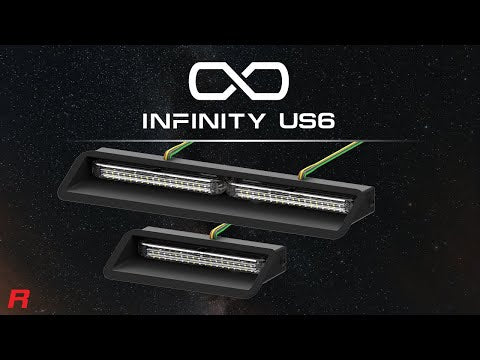

Infinity US6 is an ultra-thin and versatile warning light available in single-, two-, and three-color variants. It is suitable for a wide range of applications from commercial and safety vehicles to emergency and covert vehicles. The polycarbonate lens and aluminum housing ensure the device's durability against debris, heat, and environmental impacts. Infinity US6 meets strict industry standards, including IP69K, EMC R10, and ECE R65 Class II. The device offers 7 flashing modes, including the ICAO/CAP168 pattern designed for airports.
Infinity US6 supports multi-device synchronization and its TD-Sync function allows devices to synchronize in arrow mode. This product is made in the United Kingdom and comes with a 3-year warranty.
Technical Data
Voltage: 11–32 VDC
Current consumption: 600 mA (maximum)
LED Power:
Single-color: 18 W
Two-color: 36 W
Three-color: 54 W
Weight: 38 g
Operating temperature: -40°C to +105°C
Flash cycle:
Continuous light: 32,500 hours
Flashing (CAP168): 65,000 hours
IP Rating: IP69K
Materials:
UV-stabilized polycarbonate lens
Warranty: 3 years
Dimensions:118mm x 13.40mm x 13.40mm
Features and Benefits
Ultra-thin and versatile design

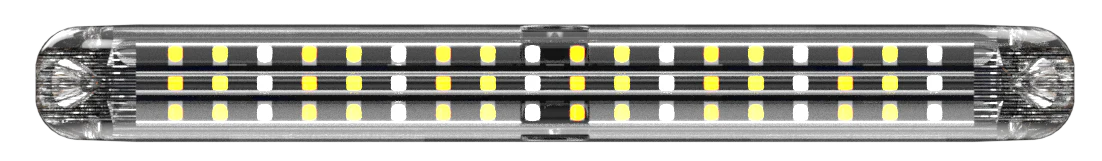

Available in single-, dual-, and tri-color variants
Integrated TD-Sync function for traffic direction
CAP168/ICAO patterns designed for airports
IP69K protection against dust and water ingress
Safety-enhancing night and day modes (dimming function)
7 different flashing modes: quad-, triple-, double-, single-, and their combinations
Synchronizable with other Redtronic products
Durability in extreme environmental conditions

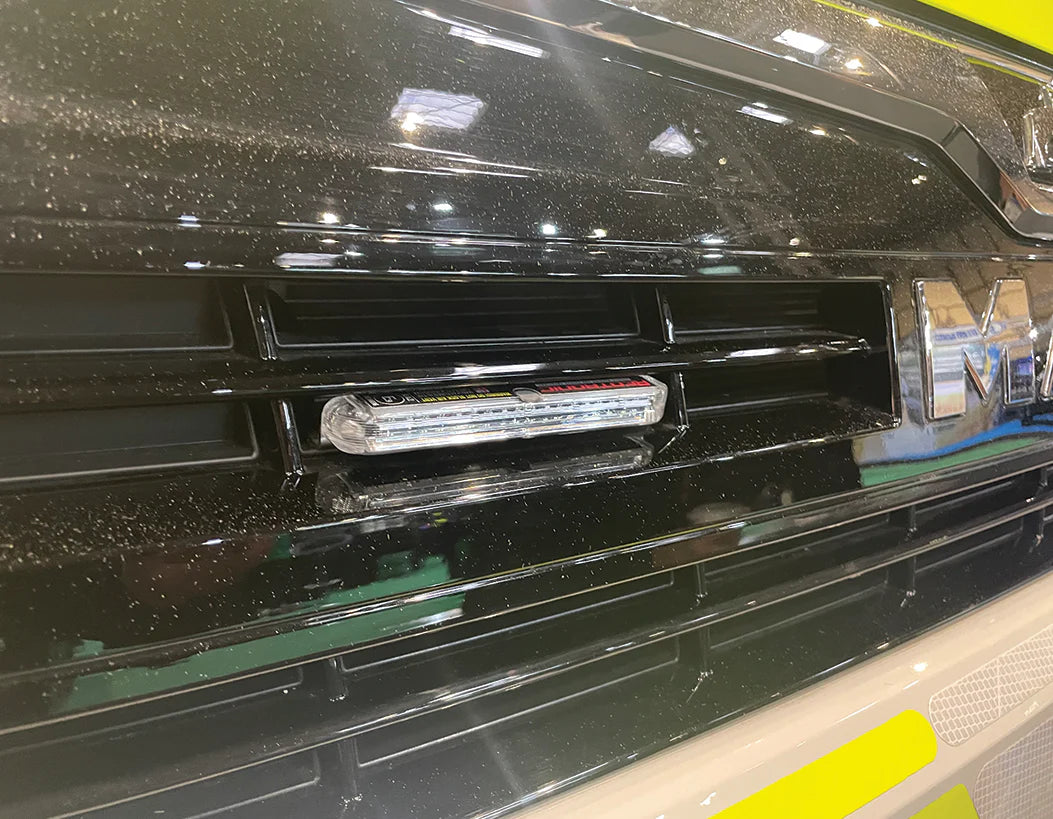

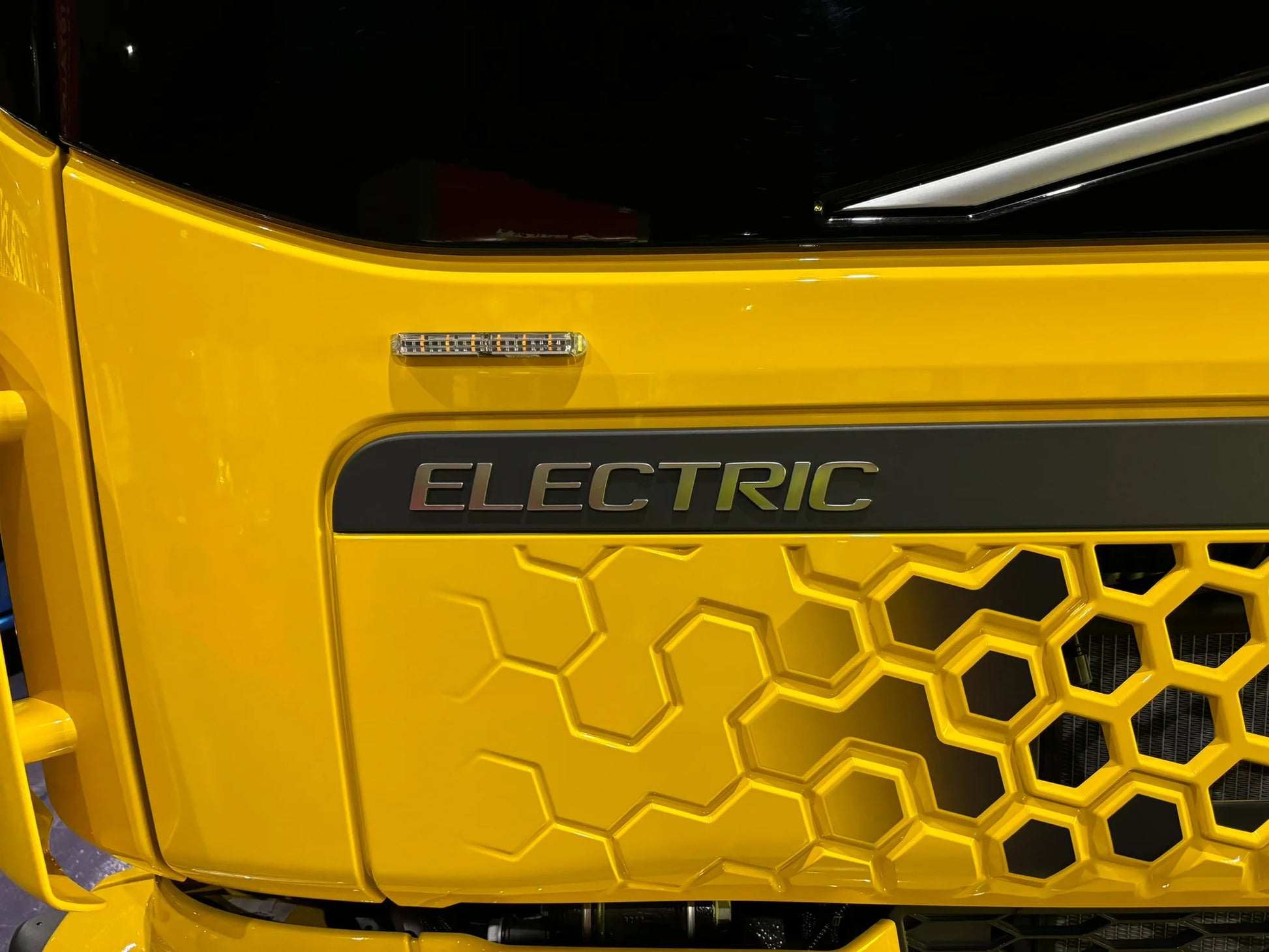

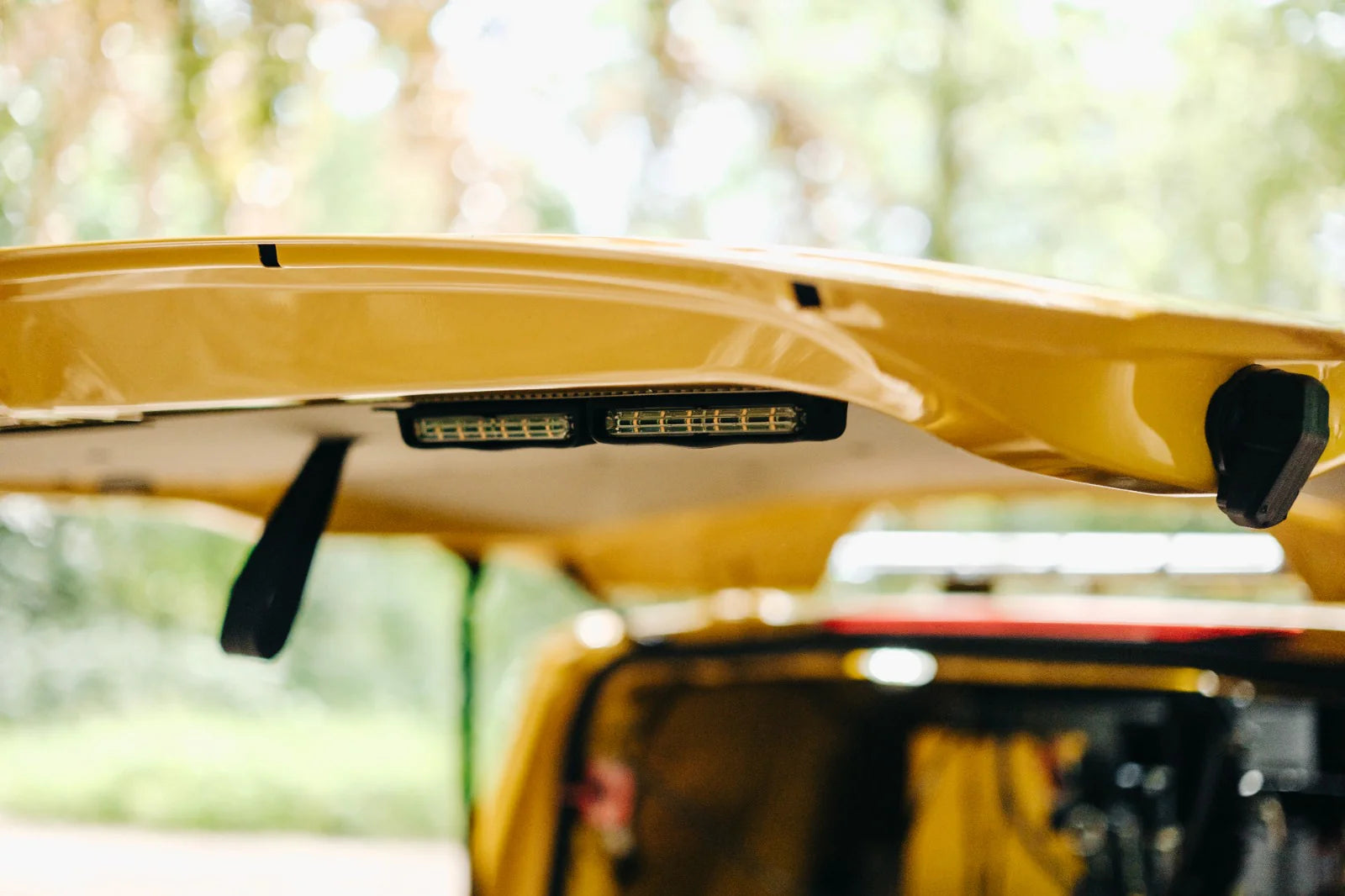

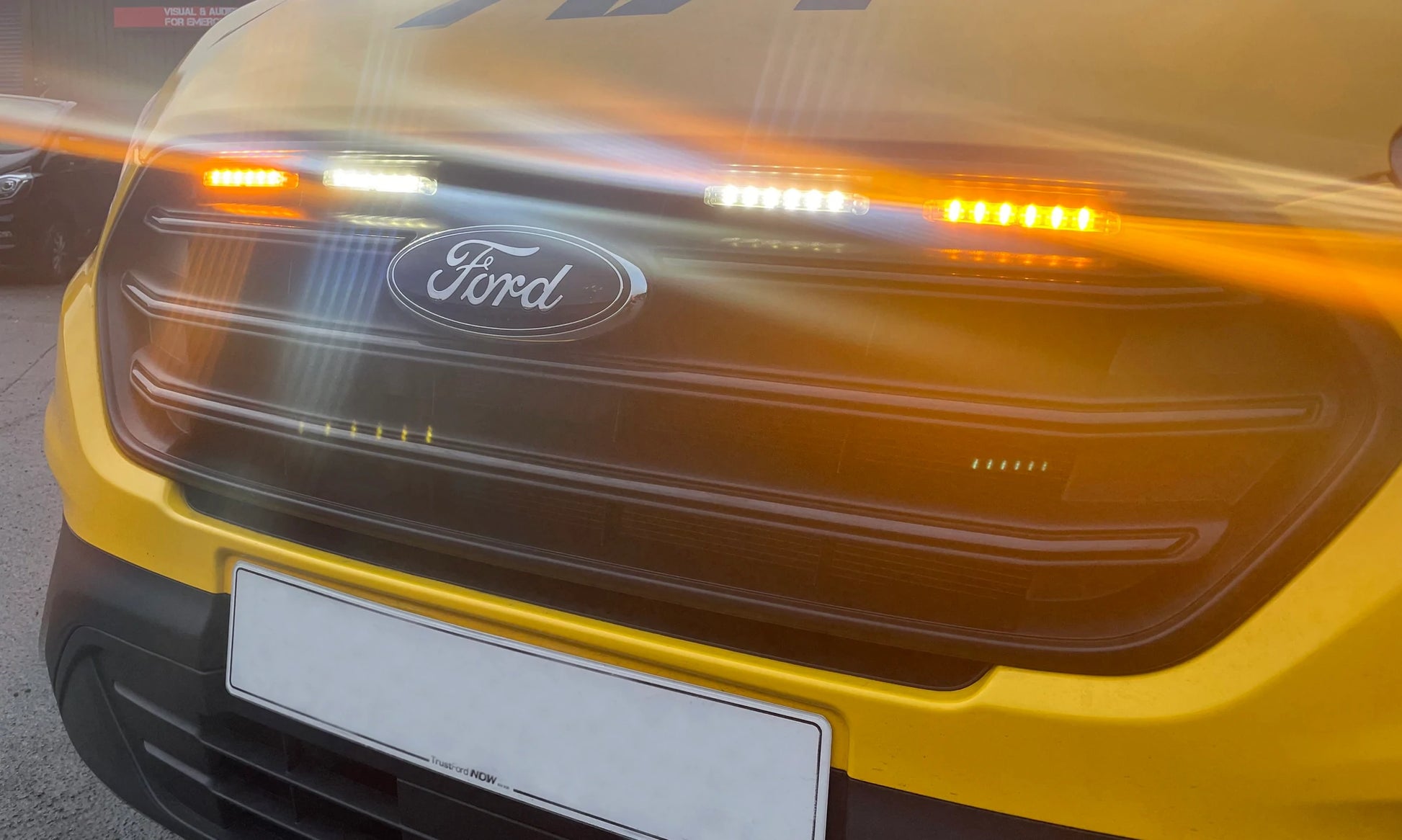

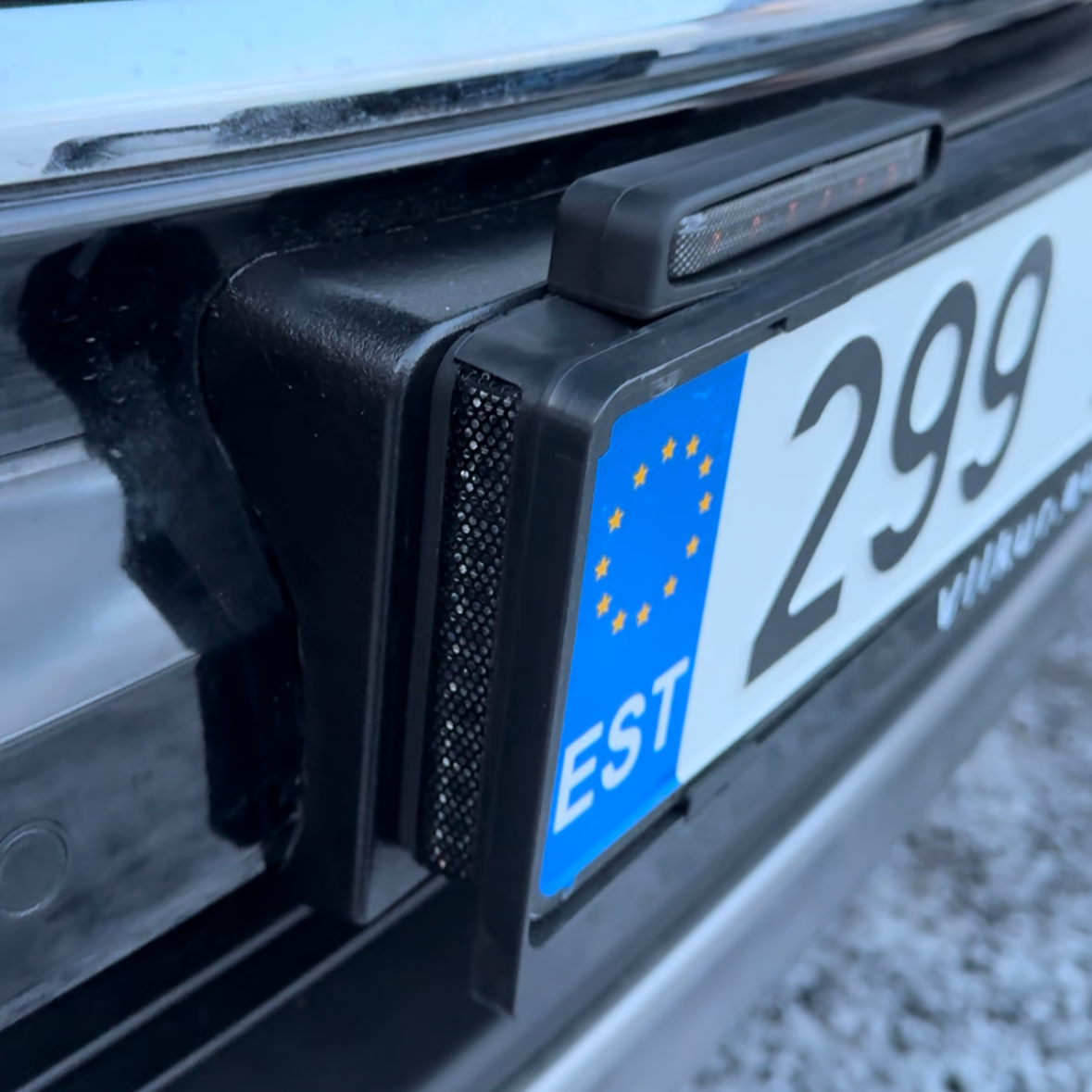

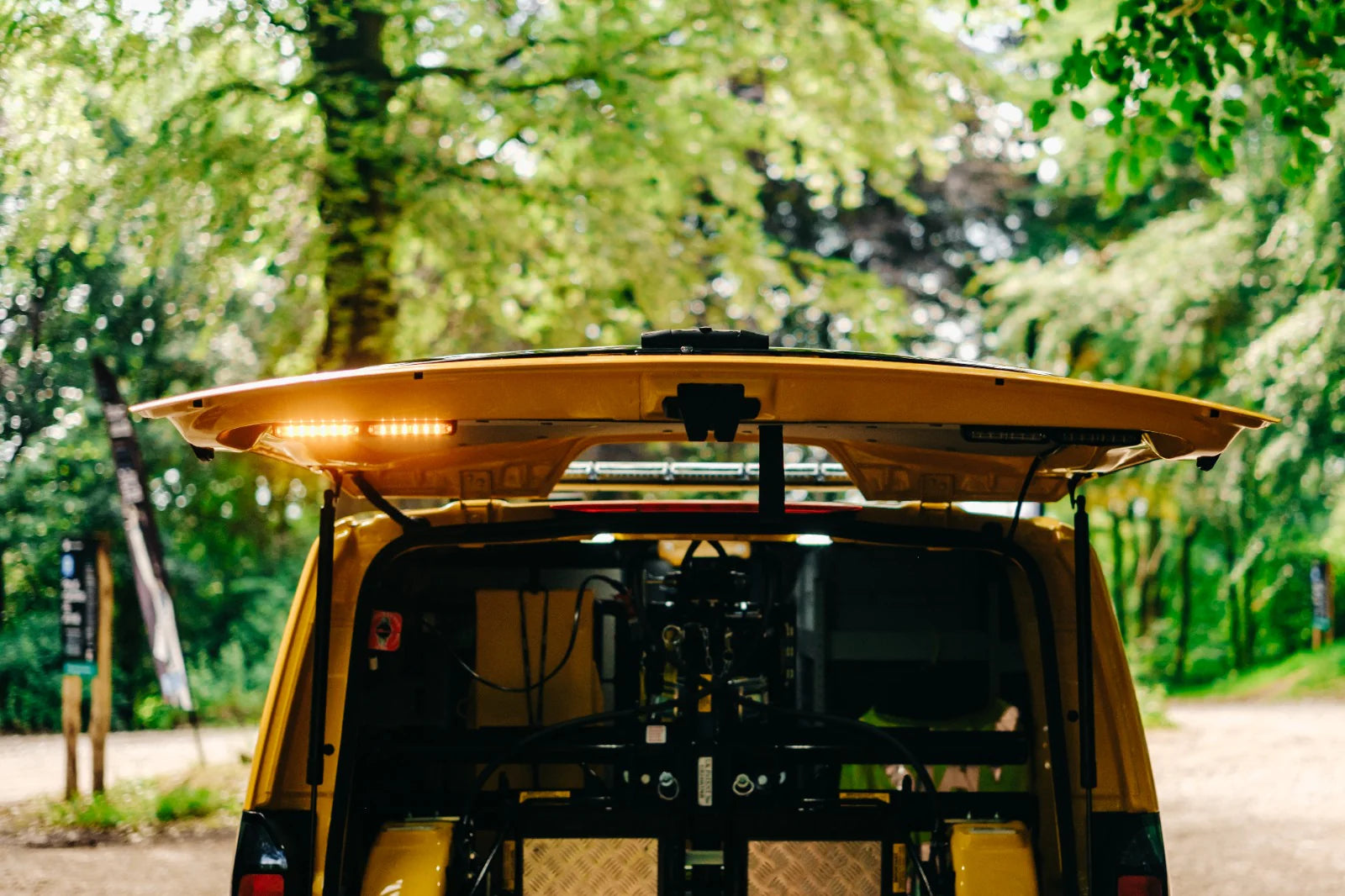

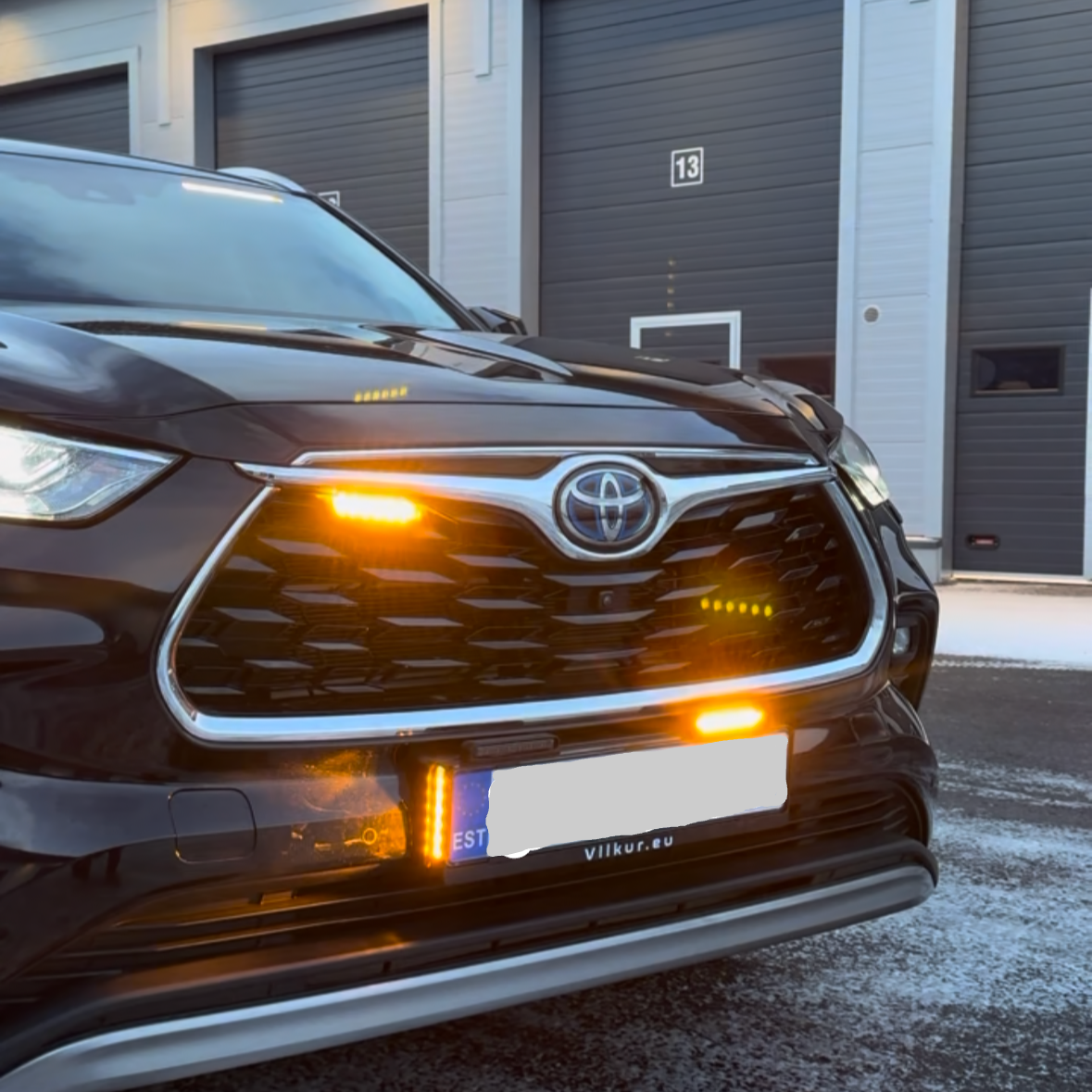

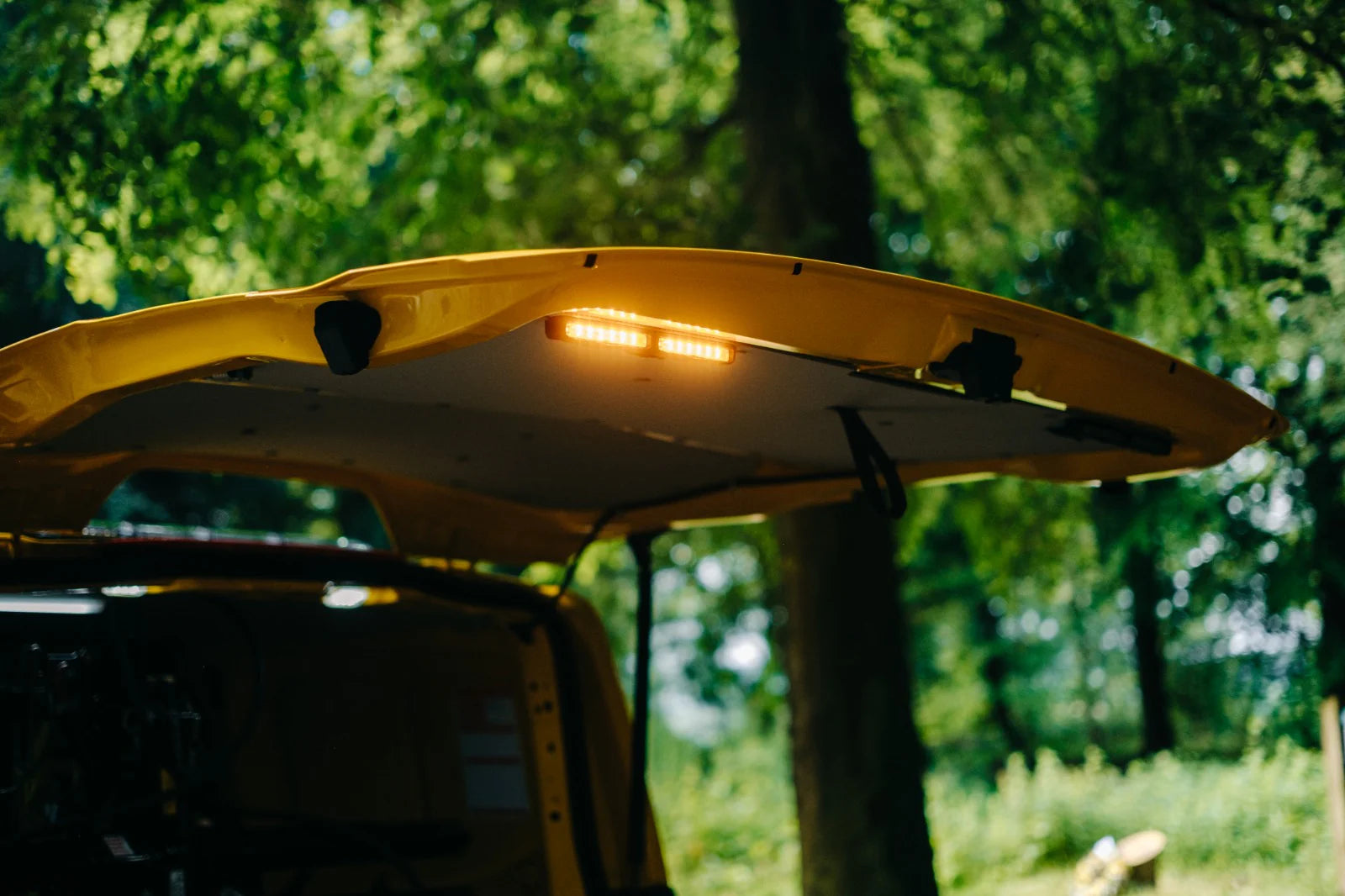

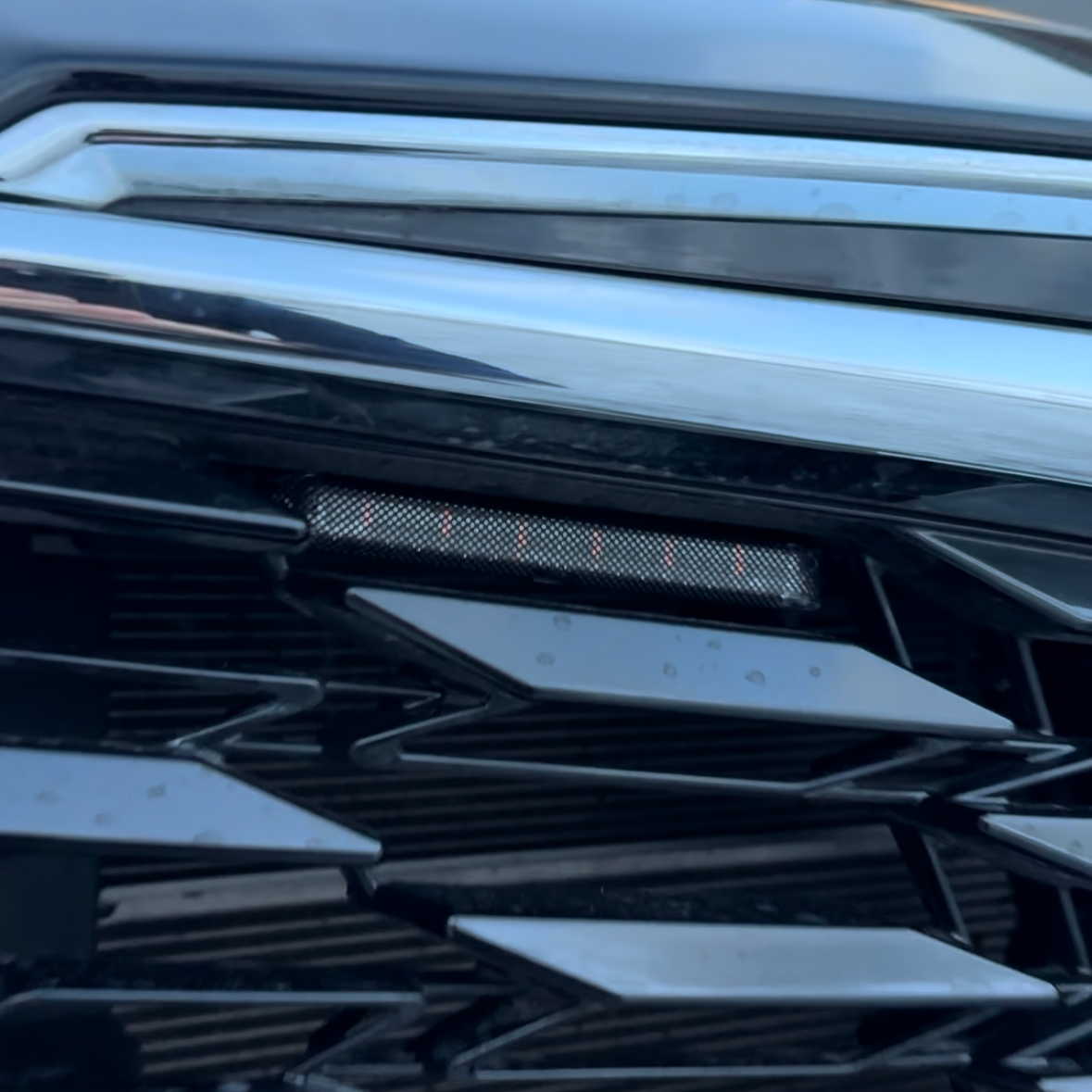

Applications: Infinity US6 is perfect for emergency vehicles, commercial and security vehicles, and covert installations where a combination of slim design and reliability is important.
