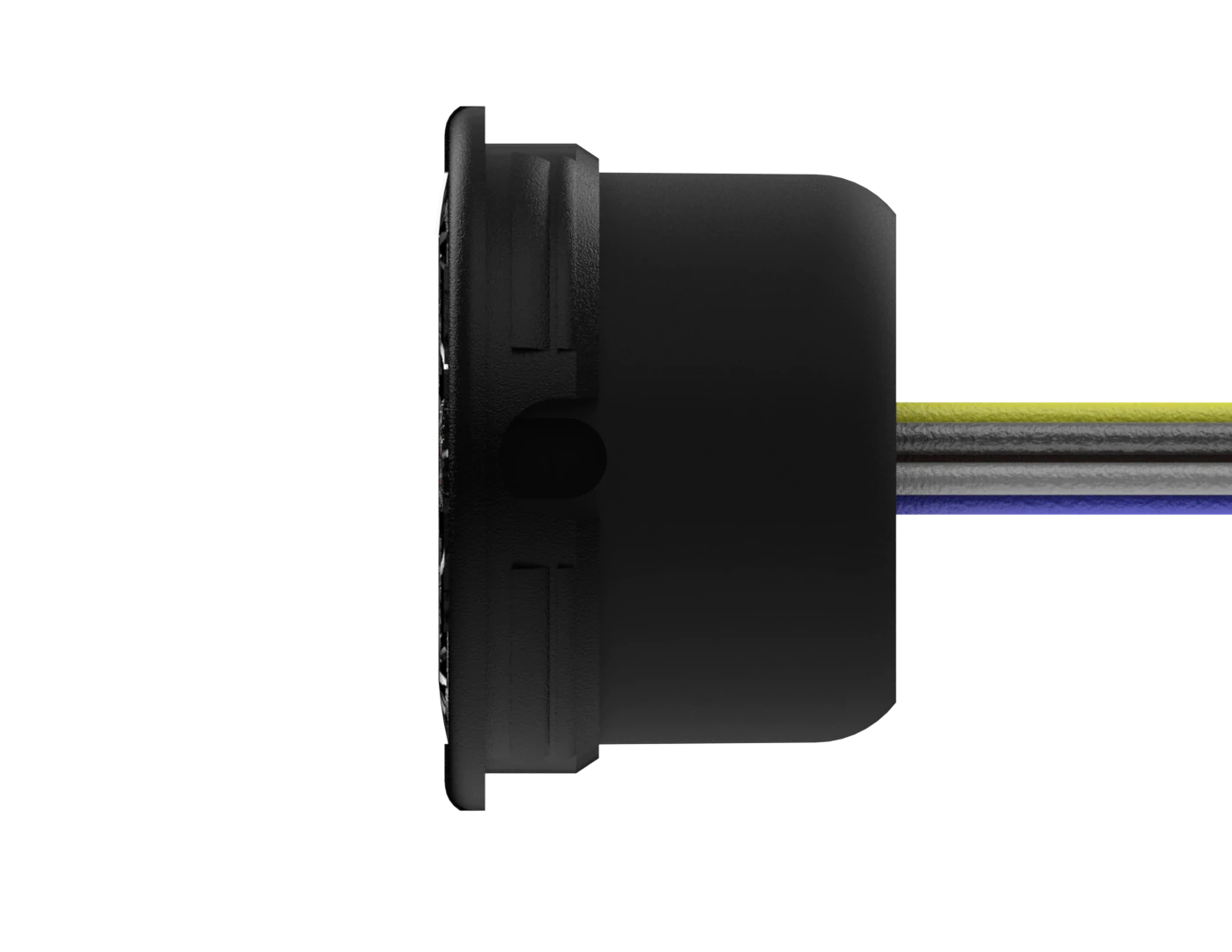

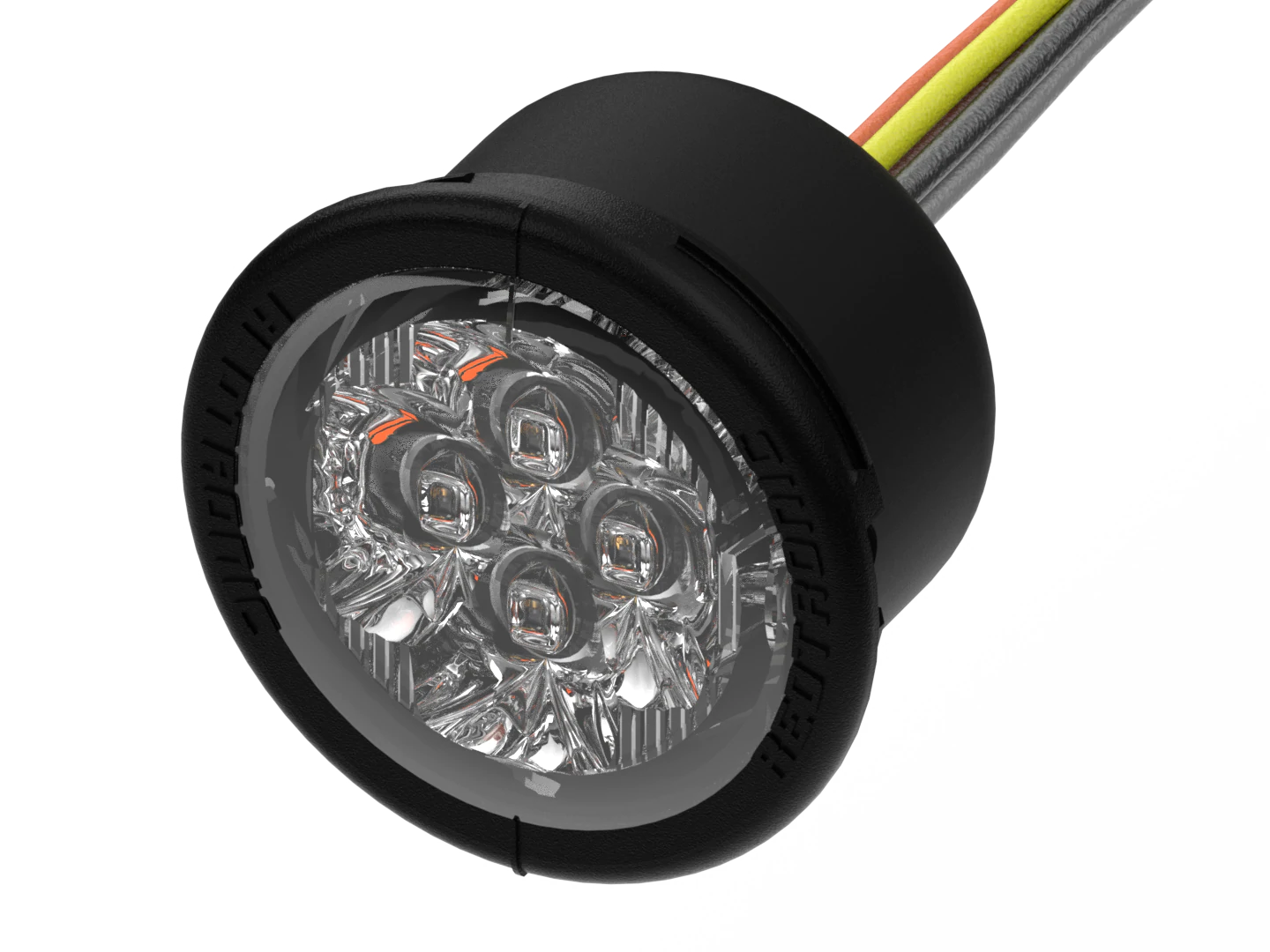

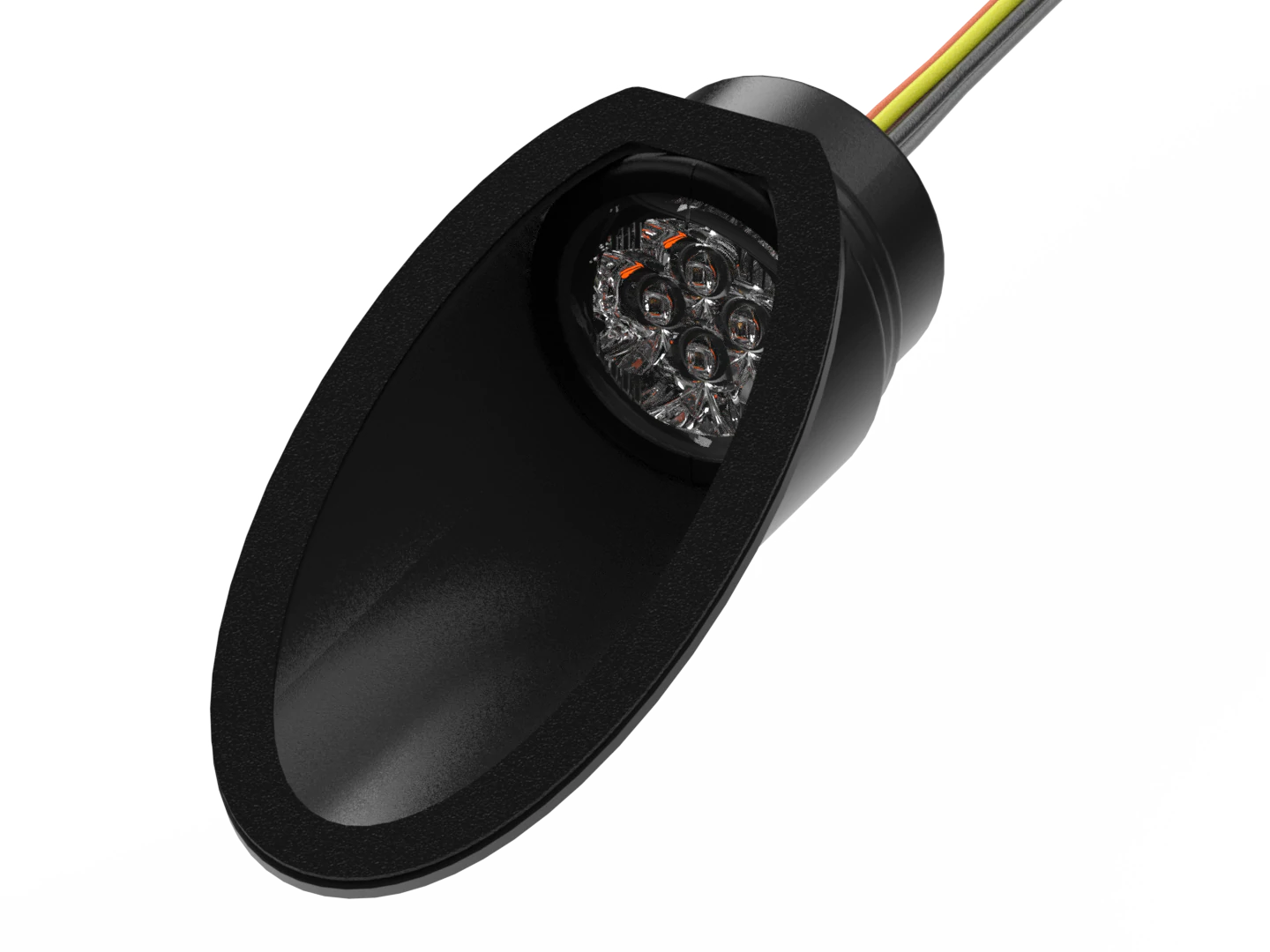

The Infinity BB4 is a two-tone, surface-mounted LED warning light with electronics fully integrated into the device housing. It is designed to meet various requirements, from ensuring the safety of maintenance vehicles to the needs of emergency and covert vehicles. The robust polycarbonate lens and aluminum housing provide excellent protection against debris and heat. The innovative double-locking mounting system ensures secure and stable installation of the device.
The Infinity BB4 is ideal for harsh environmental conditions, meeting the IP69K standard and holding ECE R65 Class I, EMC R10, and CAP168 certifications. The product supports multiple synchronized units and offers 7 different flashing modes, including the ICAO/CAP168 pattern designed for airports. Made in the United Kingdom and covered by a 3-year warranty.
Technical Specifications
-
Voltage: 11–32 VDC
-
Current Consumption: 630 mA (maximum)
-
LED Power: 8 W
-
IP Rating: IP69K
-
Materials:
- UV-stabilized polycarbonate lens
- Powder-coated die-cast aluminum housing
-
Operating Temperature: -40°C to +105°C
-
Weight: 30 g
-
Warranty: 3 years
Features and Benefits
- Wide-angle optics with ultra-bright LEDs

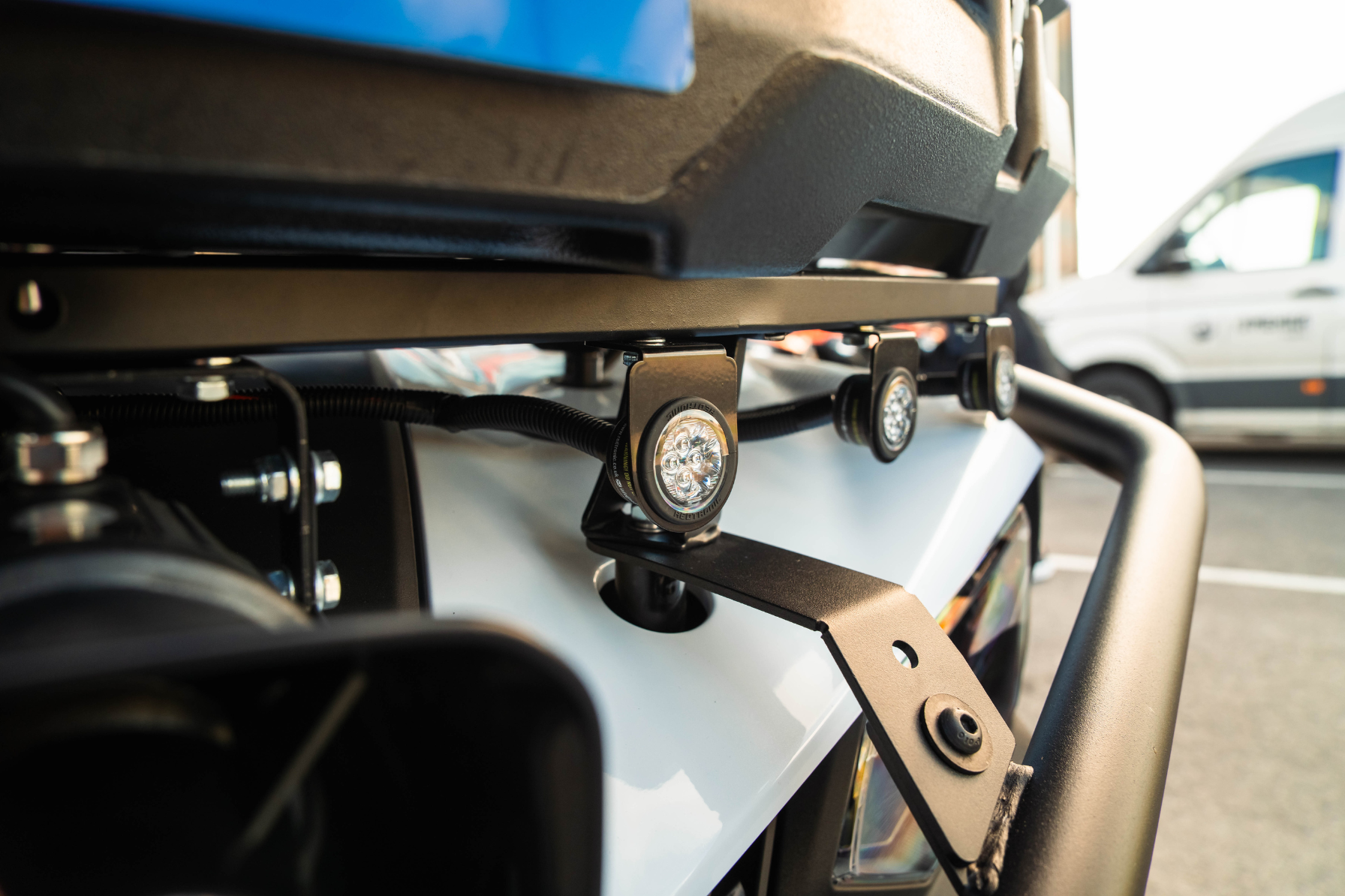

- Double locking system for secure mounting
- IP69K protection against dust and water ingress
- Safety-enhancing night and day modes (dimming function)
- CAP168/ICAO patterns designed for airports
- Capability to synchronize with other Redtronic products
- 7 different flashing patterns: quad-, triple-, double-, single-, and their combinations
- Durability in extreme environmental conditions
Applications:

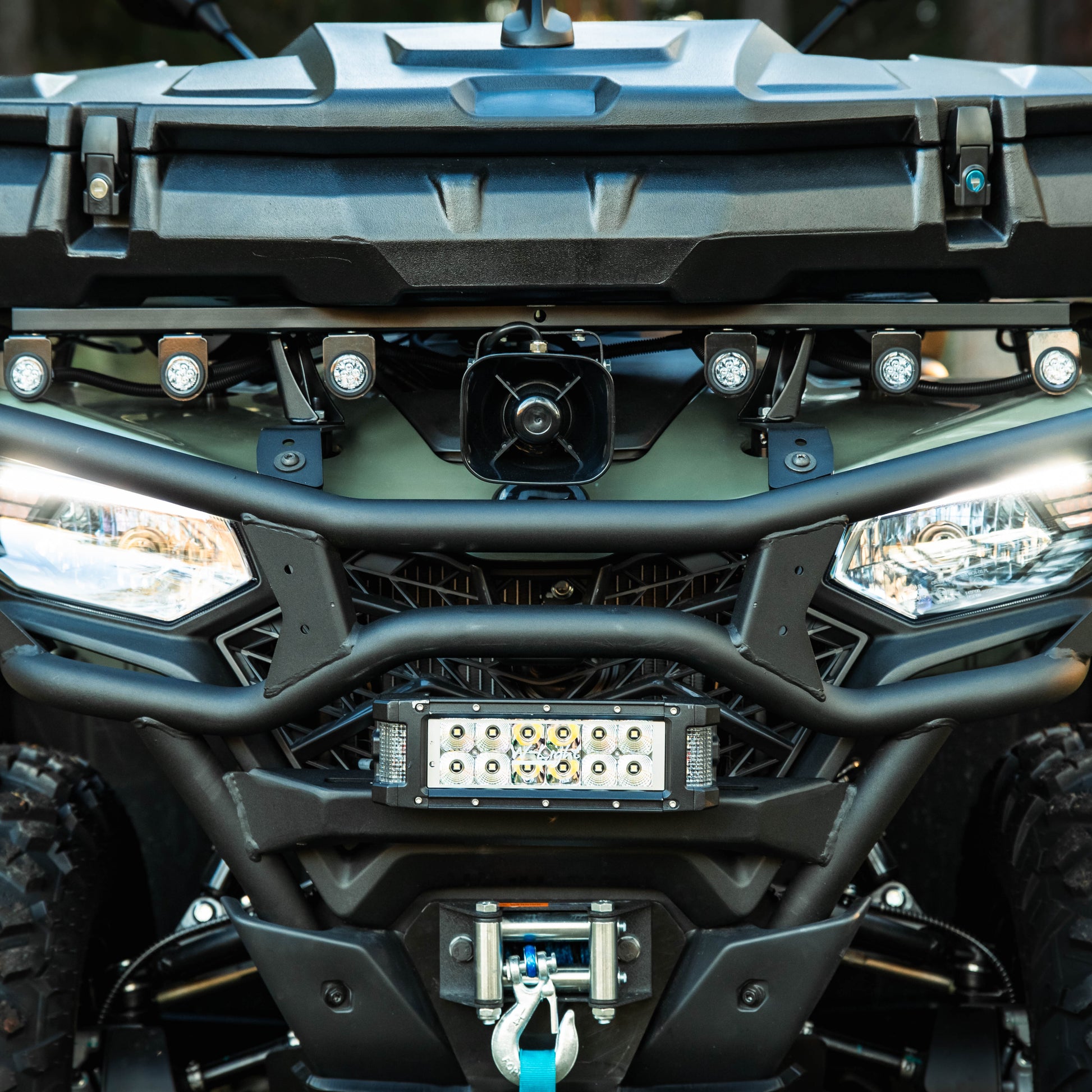

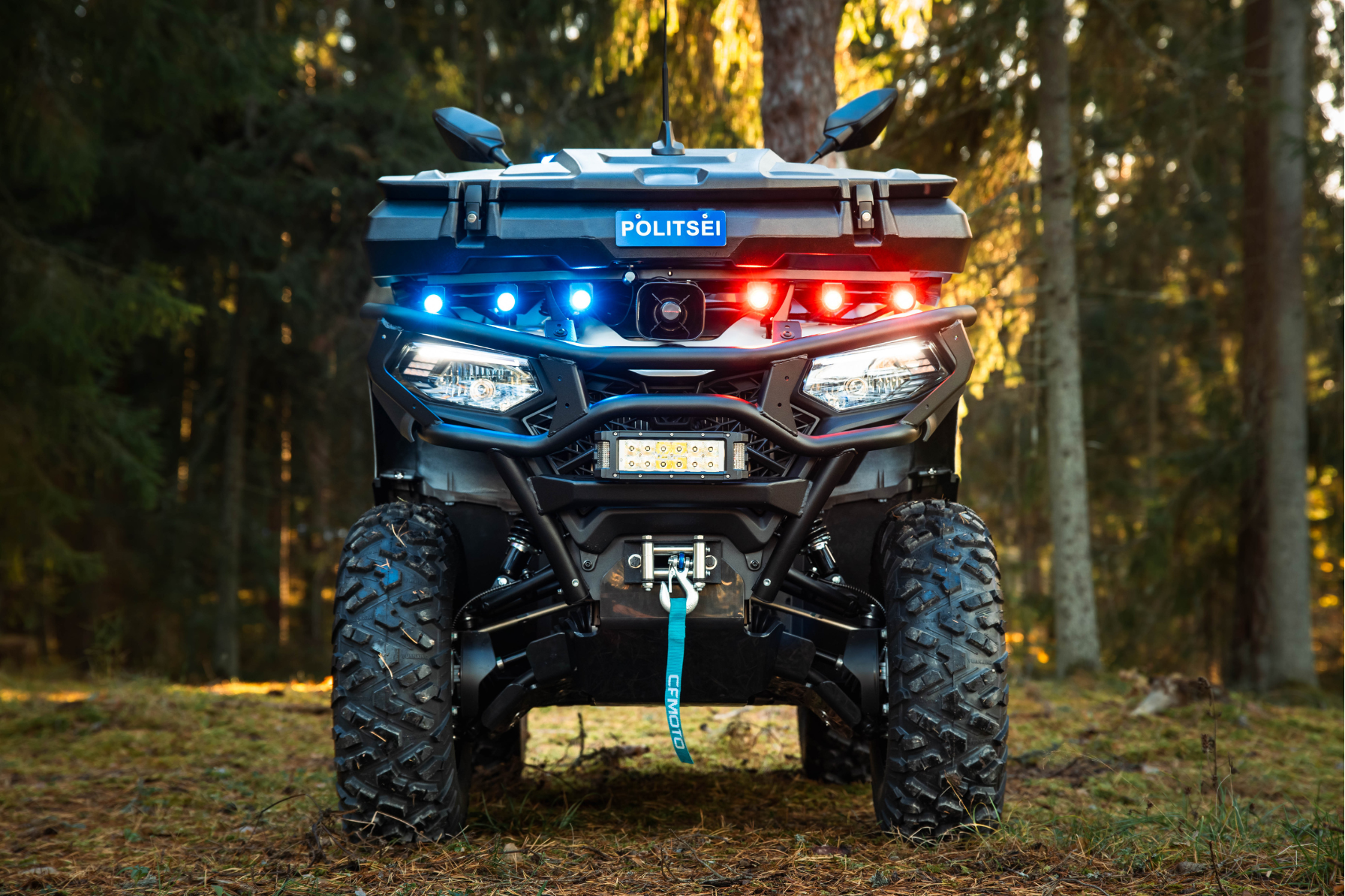

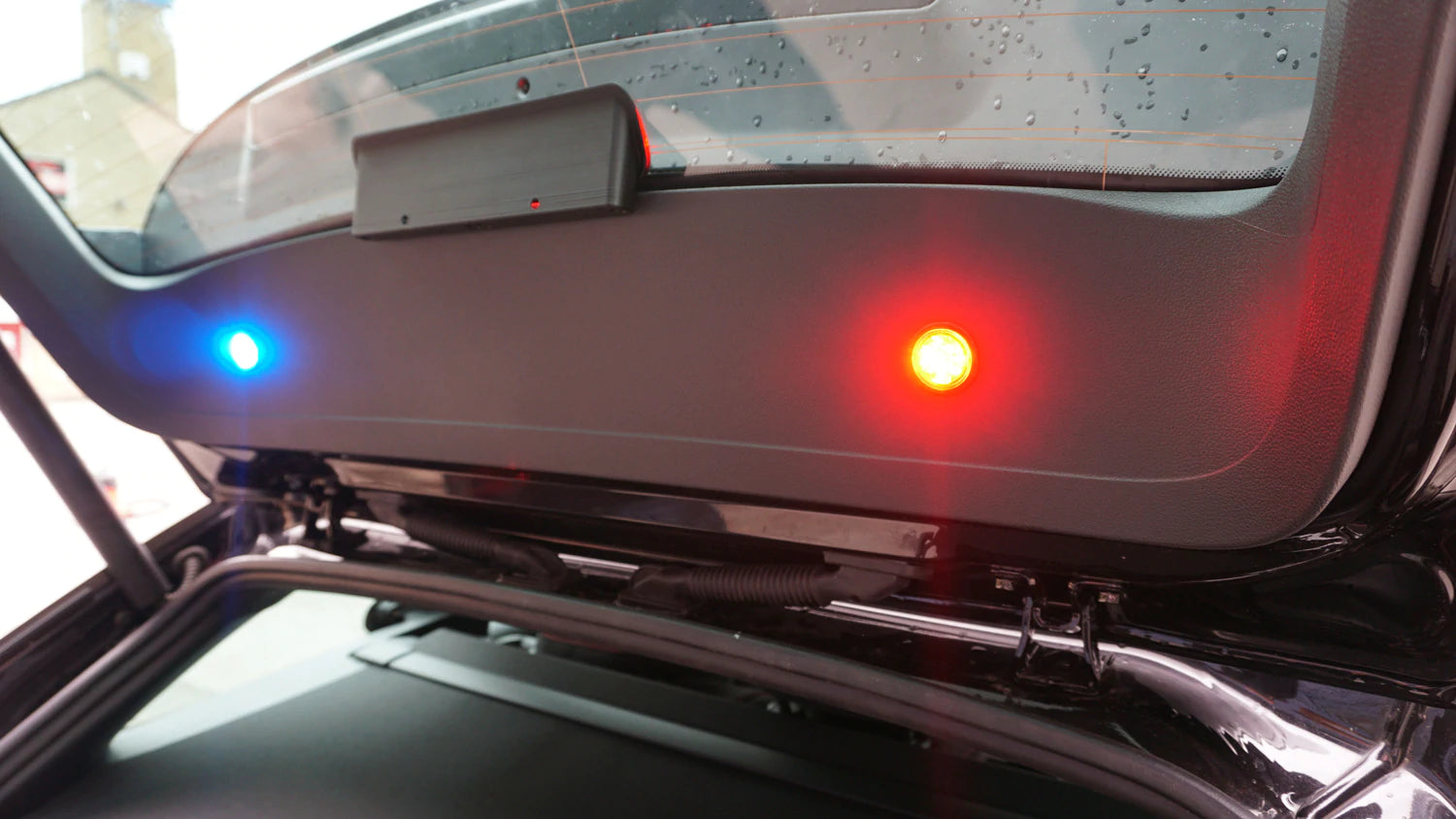

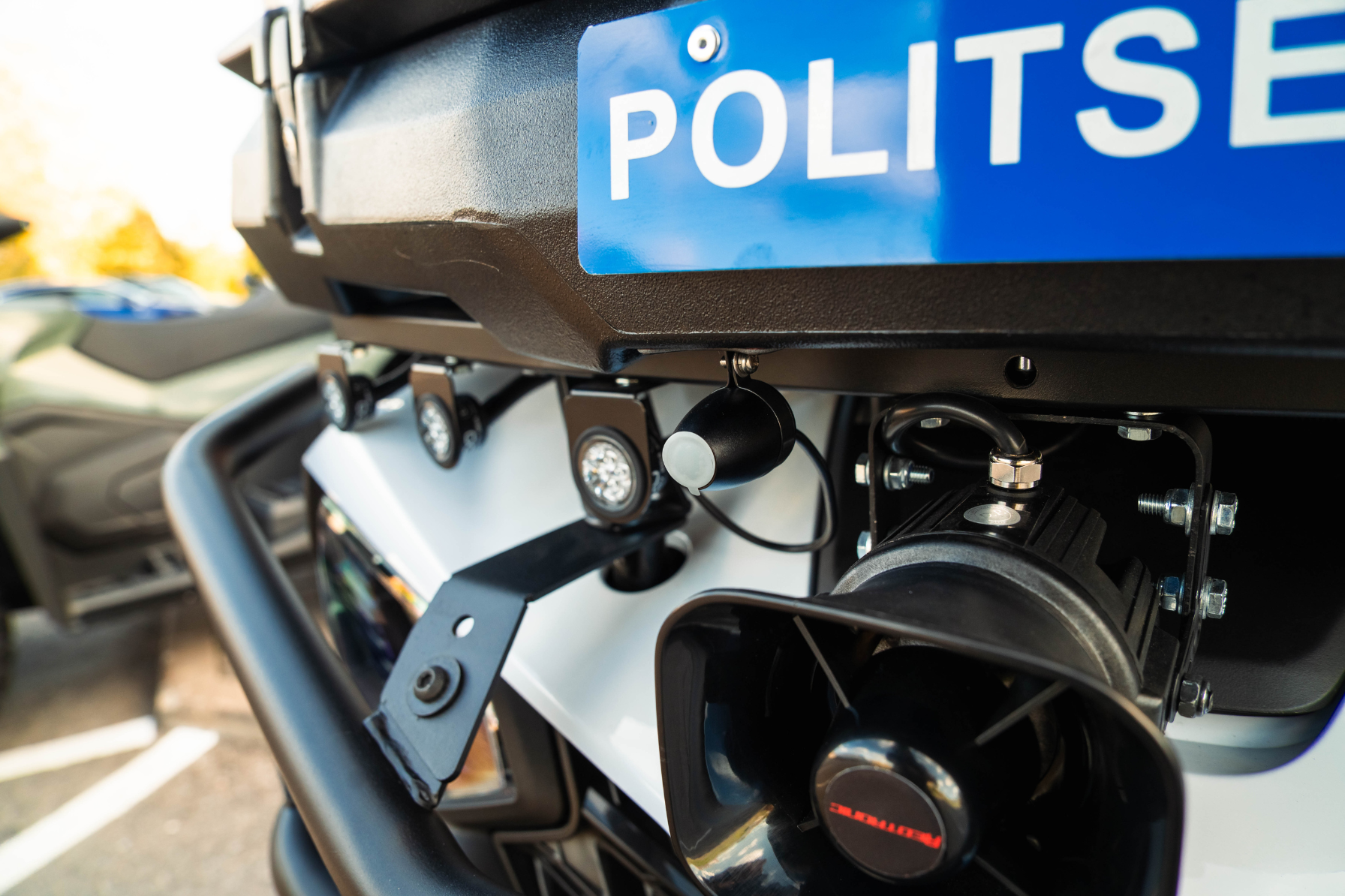

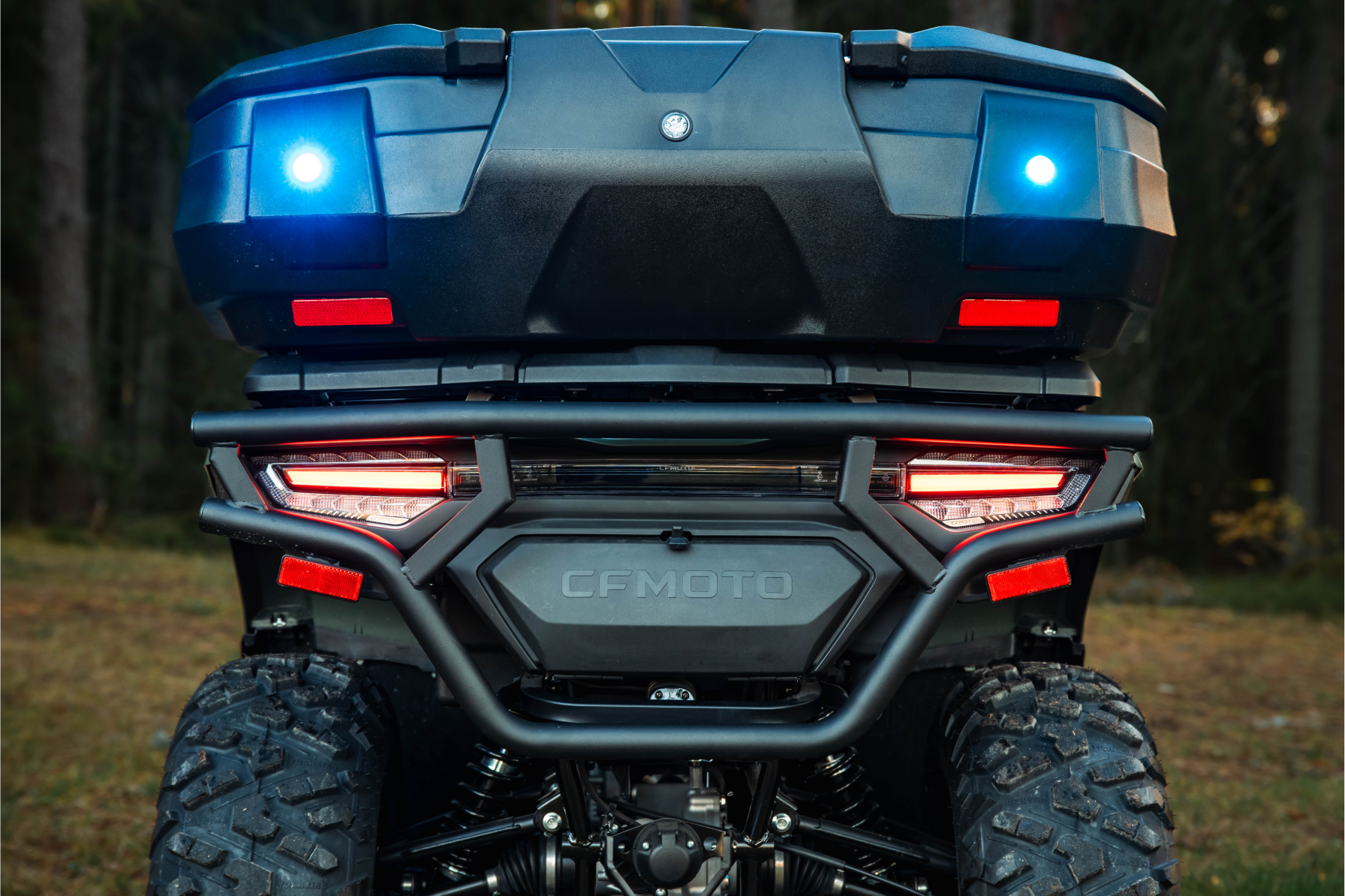

The Infinity BB4 is perfectly suited for commercial, safety, and emergency vehicles as well as other applications requiring a durable and reliable warning light.
The Infinity BB4 combines durability, top-level design, and professionalism, providing a reliable solution for all demands.
