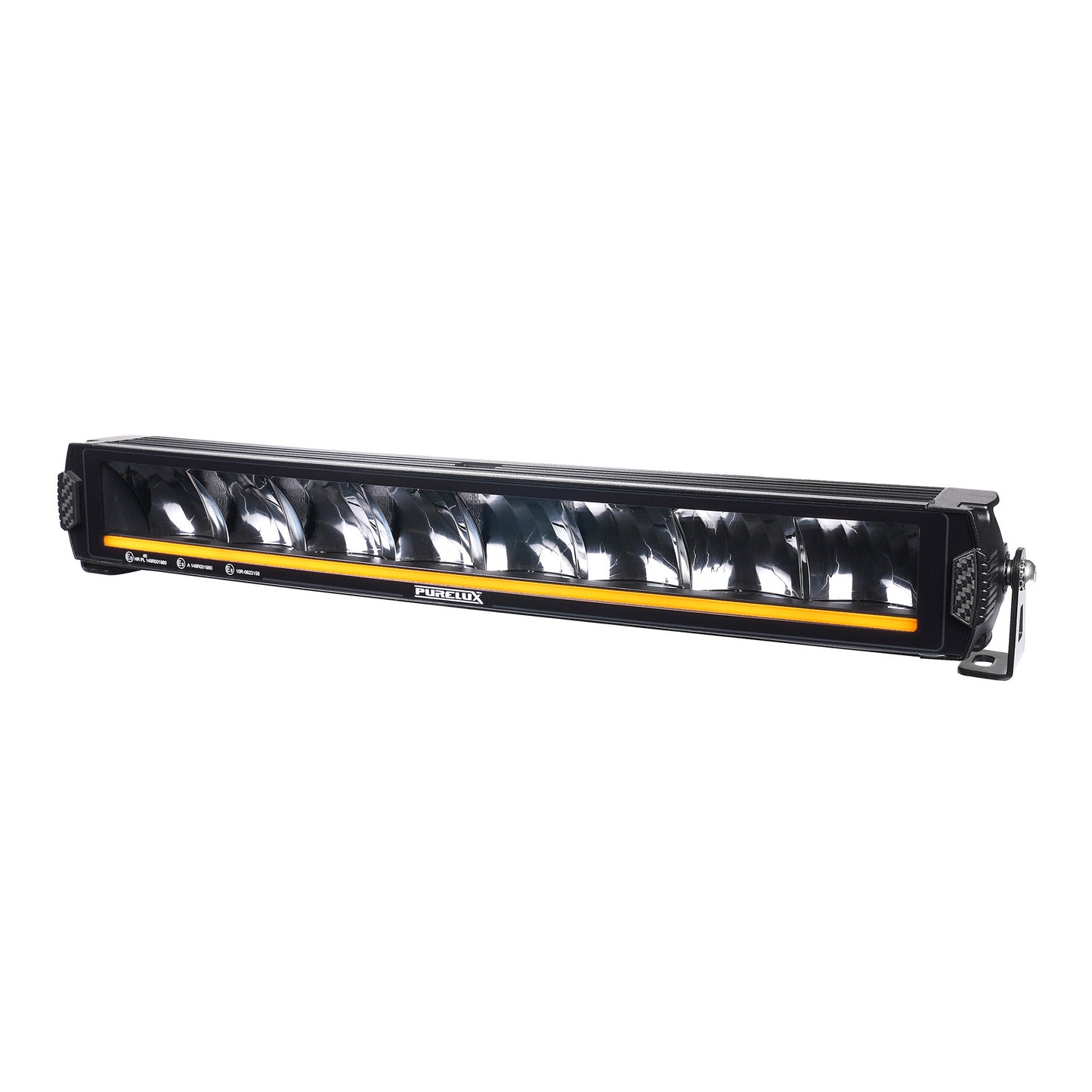

Purelux Road Curve C550 - Kumer / 55 cm / 120W / Ref. 40

Purelux Road Curve C550 is an updated version of the previous sales hit. This stylish and curved design LED auxiliary high beam offers a powerful lighting solution, ideal for use on dark and winding roads. Two power modes, including Purelux PowerBoost™, allow the lamp to deliver maximum luminous flux when the vehicle is not in traffic, or a regulated mode for highway traffic.

In PowerBoost™ mode, the lamp produces a measured 7135 lumens of luminous flux, illuminating the road up to 530 meters away (@ 1 lux). The curved design and precisely directed light pattern increase visibility and safety even in poor weather conditions.

Features

• Purelux PowerBoost™ technology: Maximum light output and range for off-road use.
• Two power modes:
  • PowerBoost™ mode: 7135 lm, range up to 530 m (@ 1 lux).
  • Highway mode: Lower power, compliant with ECE requirements.
• Combination light pattern:
  • High beam that reaches far ahead.
  • Wide light that illuminates the road edges immediately in front of the vehicle.
• Two-color parking light:
  • White
  • Orange

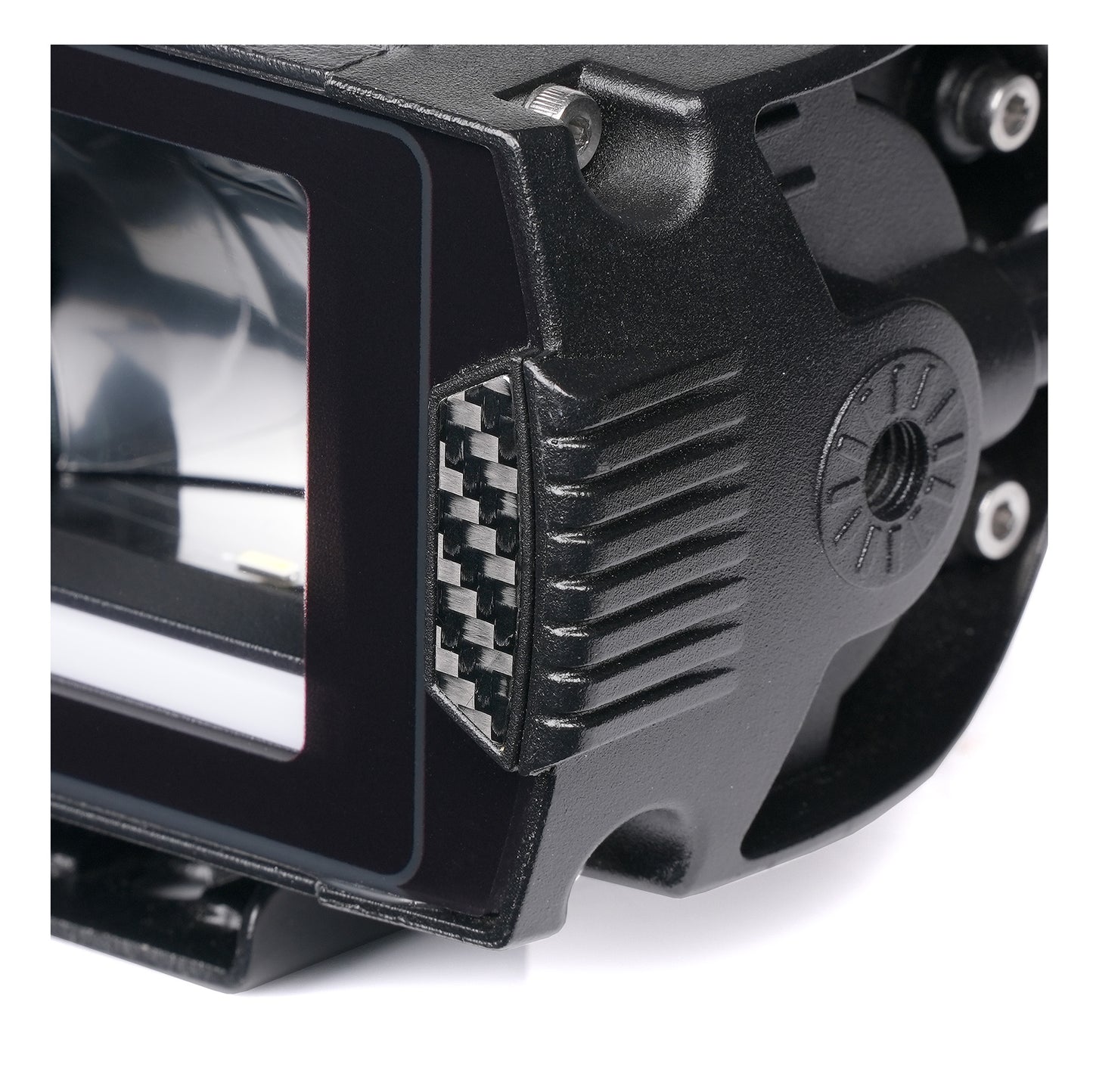

• Low and aerodynamic design:
  • Frameless Lexa polycarbonate lens that keeps the lamp clean even in poor conditions.
  • Durable aluminum housing resistant to UV radiation and scratches.

Technical specifications

• Manufacturer and model: Purelux Road Curve C550
• Operating voltage: 9-30 V (suitable for 12V and 24V systems)
• LEDs: 8 x 15W
• Luminous flux:
  • PowerBoost™ mode: 7135 lm
  • Traffic mode: 347 m @ 1 lux
• Lighting distance:
  • PowerBoost™ mode: 530 m @ 1 lux
  • Traffic mode: 347 m @ 1 lux
• Power consumption:
  • PowerBoost™ mode: 113.8 W @ 24V
  • Traffic mode: 30 W @ 24V
• Color temperature: 5000K
• Protection class: IP68
• Dimensions: 549.6 x 71.5 x 85 mm (L x H x W)
• Weight: 2350 g
• Approvals: ECE R10, R148, R149 (PowerBoost™ mode does not comply with highway traffic requirements)

Package contents

• 1 x Purelux Road Curve C550 auxiliary light
• 2 x Extendable lower mounts
• 2 x Mounting feet
• Power cable and connector plug
• Installation instructions (FI/SE/NO/DK/EN)

Installation

• DT-2 connector: Ensures easy connection and activation of PowerBoost™ mode.
• White parking light: Connect the white wire.
• Orange parking light: Connect the yellow wire.
• Highway mode: Connecting the blue wire activates the limited power mode.

Purelux Road Curve C550 is the ideal solution for those seeking powerful and stylish auxiliary lighting for both highways and off-road. Perfect for cars, SUVs, and work machines!
