Purelux Multi-Switch Panel, 10-30V

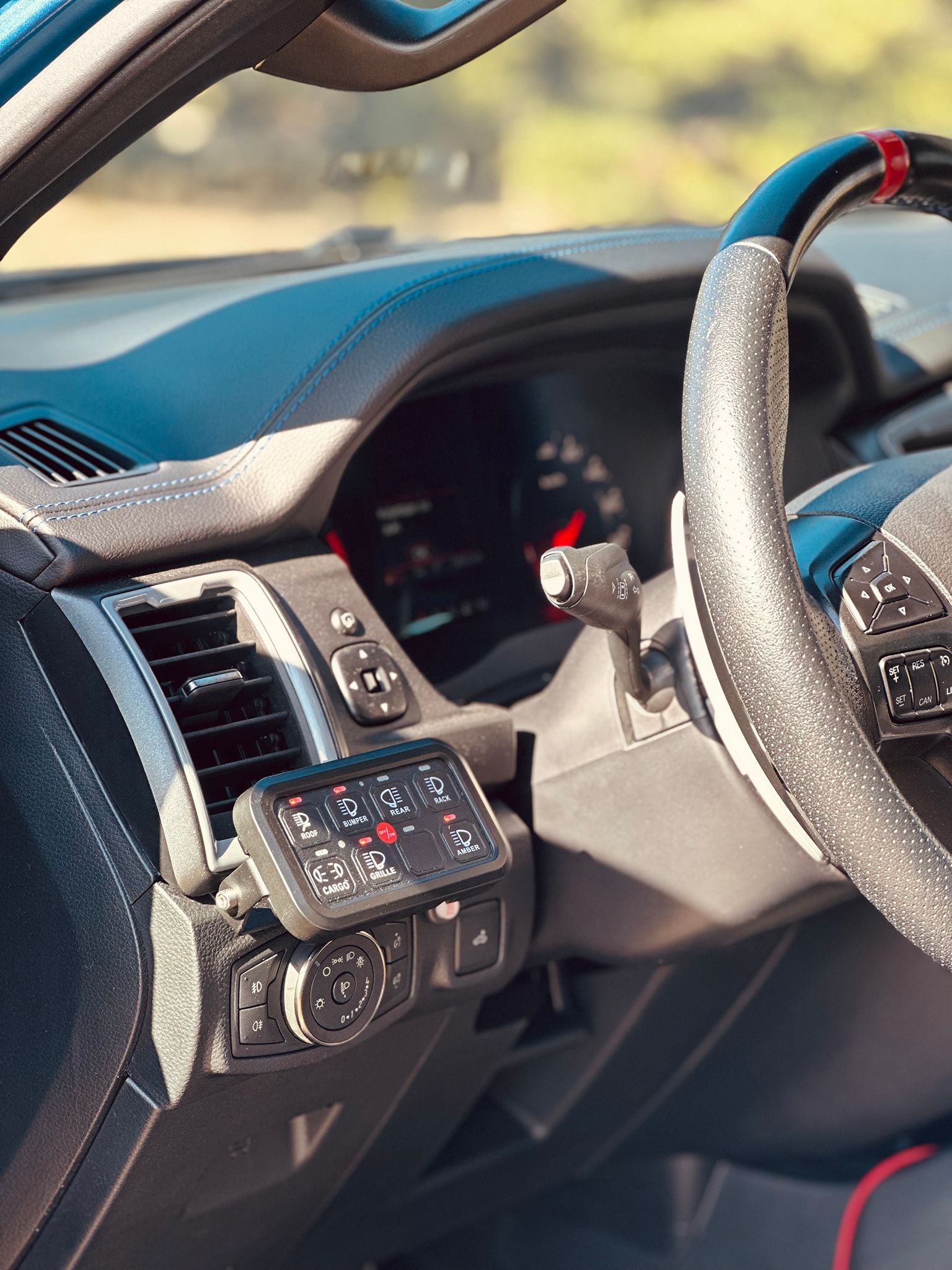

Purelux Multi-Switch Dashboard Controller is a versatile control panel that allows you to manage up to eight different electrical devices (such as lights, beacons, engine fan, or seat heating). This control panel is ideal for work machines and vehicles where you can separately switch on and off, for example, headlights, taillights, side lights, and beacons. All switches are conveniently arranged on one panel, ensuring easy and quick access.

The panel can be used to control various devices, switching them on either continuously, momentarily (by holding the switch), or flashing. The central switch allows turning off all devices at once. The control panel features RGB backlighting, with a selectable color that automatically adjusts its brightness according to ambient lighting. If lighting is not desired, it can be turned off with a single button press.

The panel has a convenient memory function that retains the last usage mode of the devices. Additionally, the switches can be programmed for continuous use, momentary press, or flashing function. The system supports power up to 600W 12V and 1200W 24V systems, and each switch is equipped with separate fuses.

Technical specifications:

• Product: Purelux Multi-Switch Dashboard Controller
• Purpose: Control of up to 8 electrical devices (e.g., additional lights, work lights, beacon)
• Operating voltage: 10-30 V
• Power: 600W @12V, 1200W @24V
• Maximum current: 60A
• Panel size: 116 x 66 x 14 mm (L x H x D)
• IP protection rating: IP65
• Operating temperature: -40°C to +105°C
• Approvals: CE marking
• Warranty: 12 months

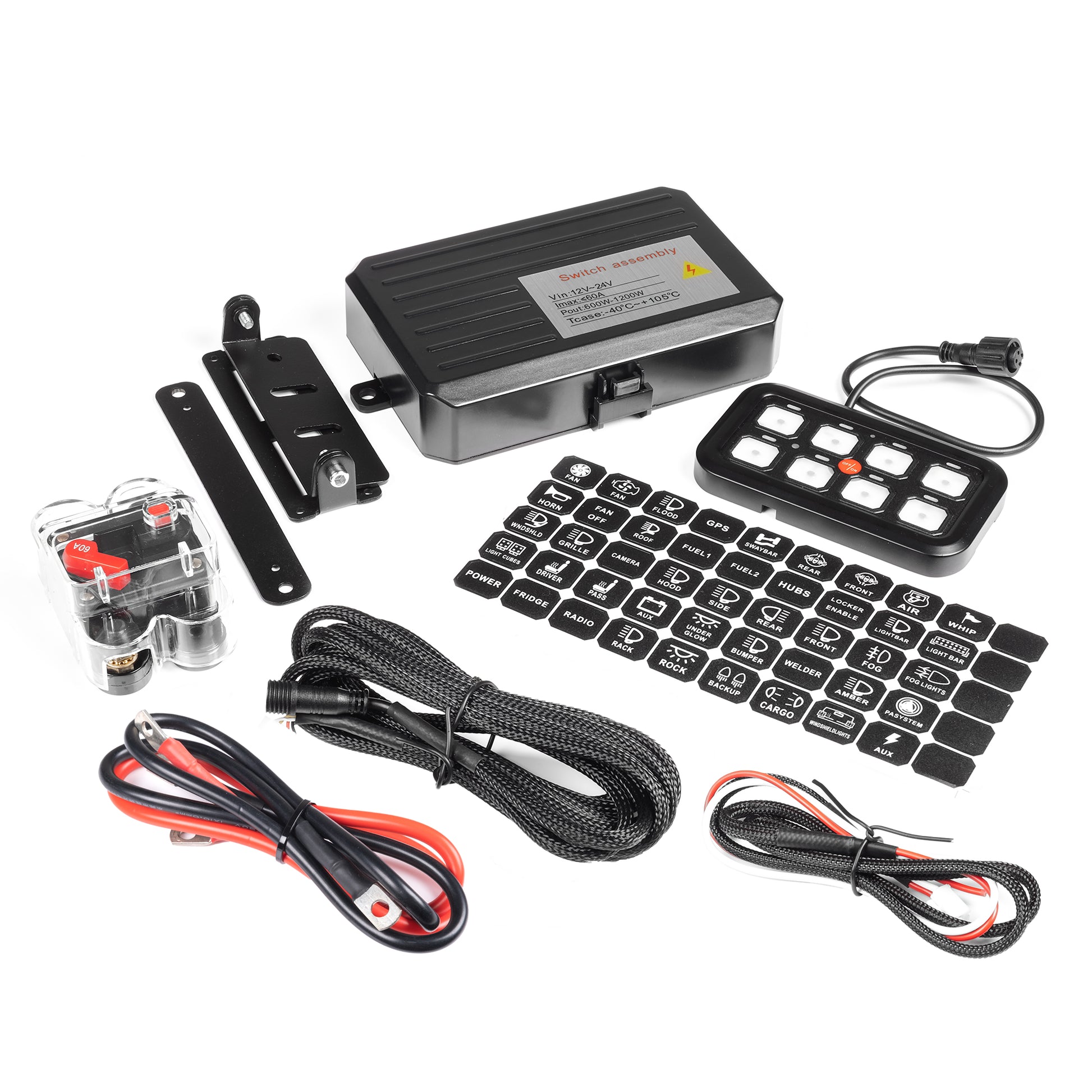

Included:

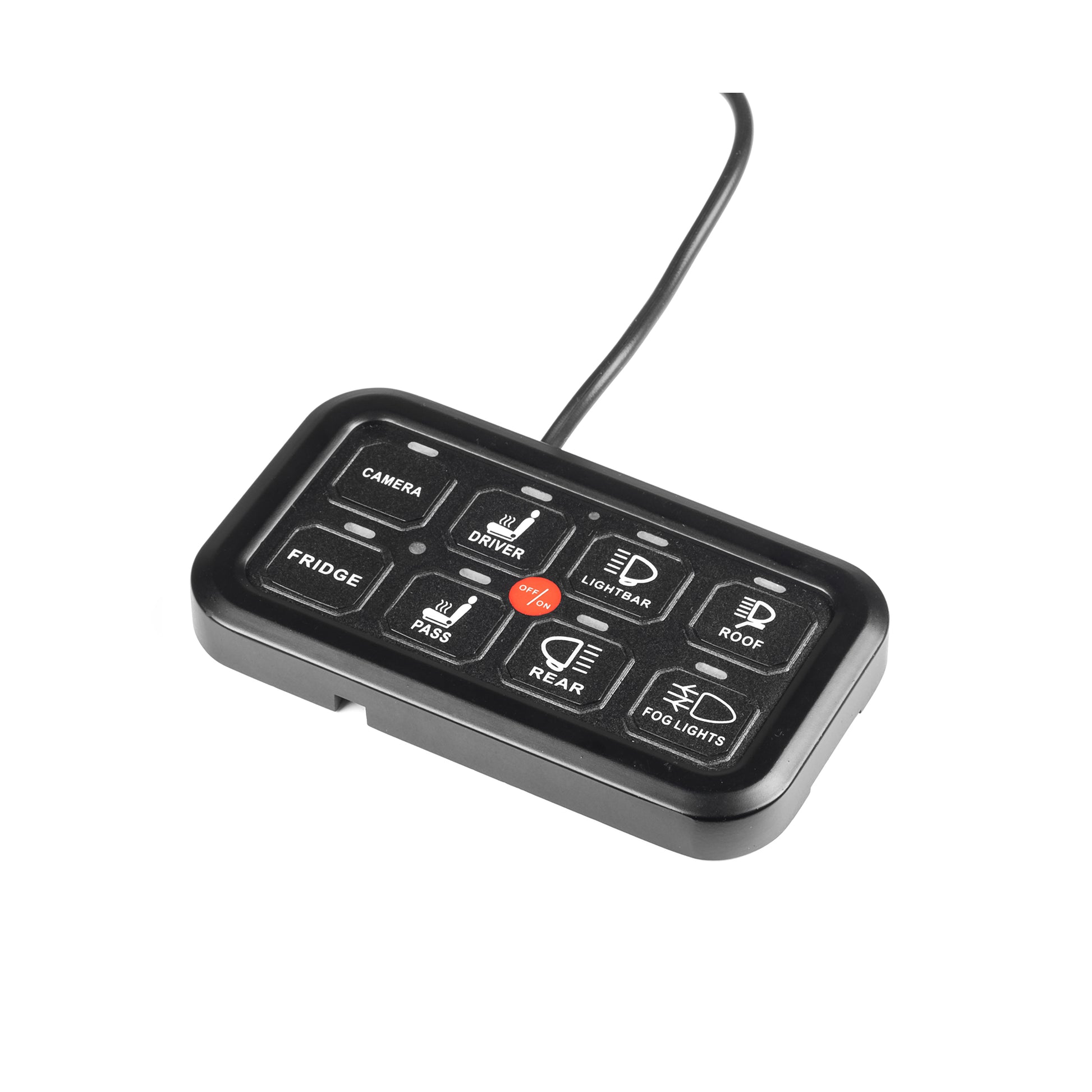

• Control panel (with 8 switches)

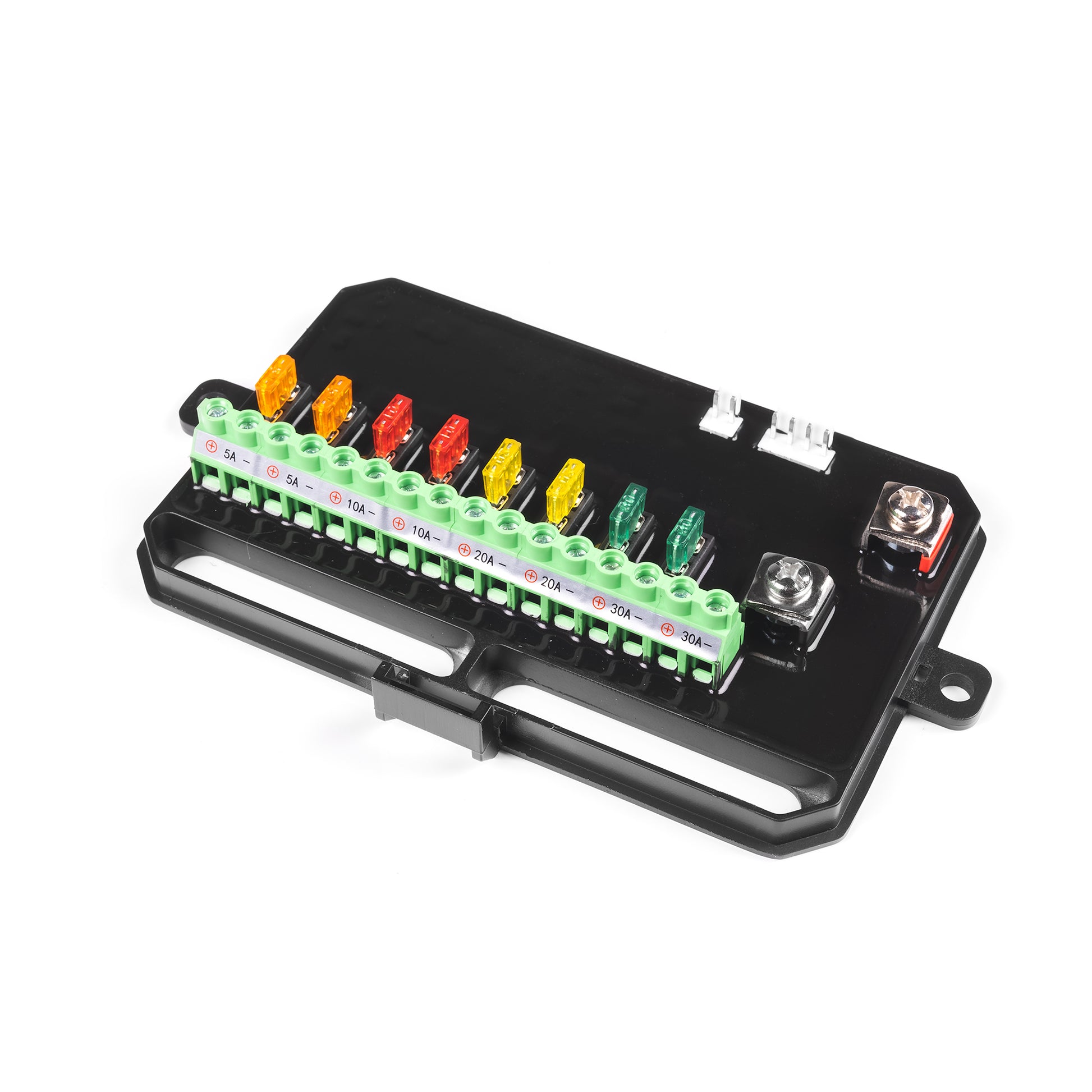

• Fuse block
• 60A leakage current protection
• 4-pole and 2-pole cables
• Power cable
• Mounting brackets and installation accessories
• 50 marking stickers
• Installation manual
