Purelux Mini Controller, 10-30V

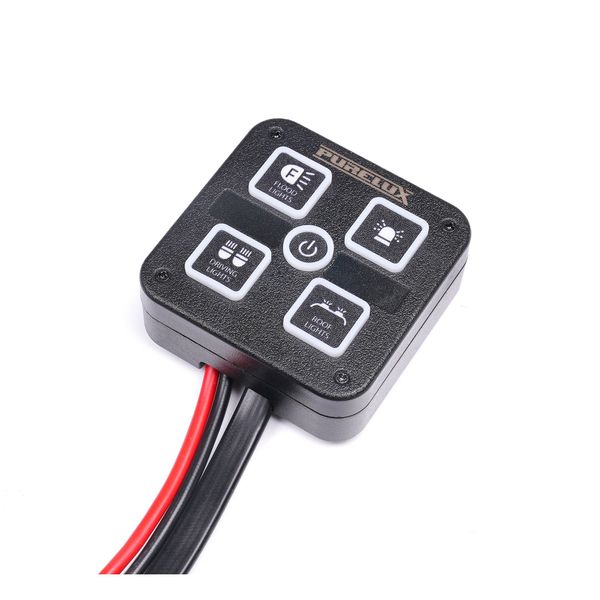

Description: The Purelux Mini Dashboard Controller is a user-friendly and practical switch panel that allows you to control up to four different electrical devices from one location. It is ideal for controlling work lights or warning lights on a small work machine or SUV. Each connected light can be turned on and off individually on the panel, and all devices installed behind the panel can be turned off at the same time using the power switch in the middle.

Features:

• Make and model: Switch panel Purelux Mini Dashboard Controller
• Field of use: Control and control of up to four electrical units from one switchboard
• Supply voltage: 10-30V
• Power class: 240W @ 12V, 480W @ 24V
• Maximum current: 20A
• Dimensions: 62 x 62 x 25 mm
• Kaal: 110 g

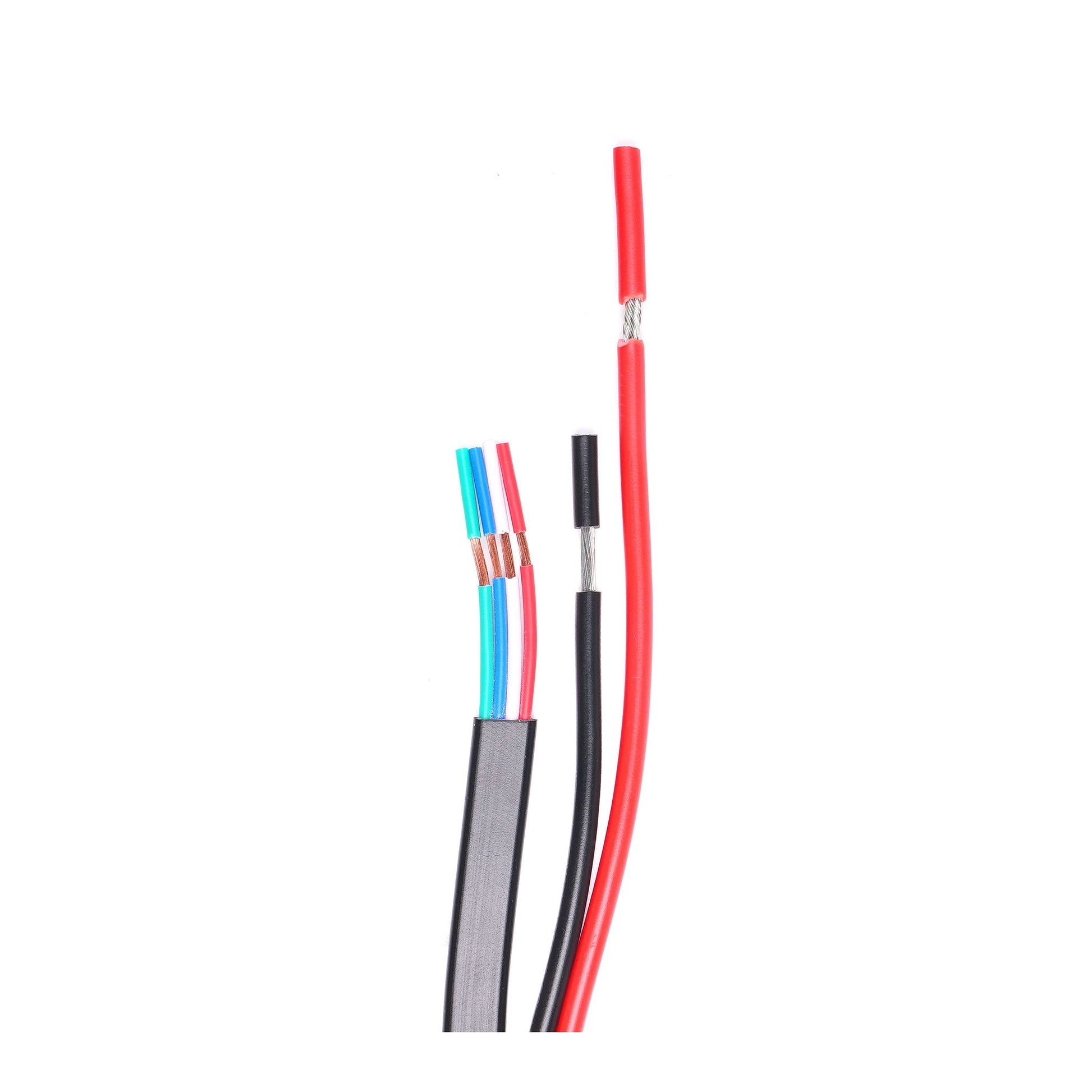

• Cable length: about 30 cm
• Set includes 18 marking stickers
• Approvals: EMC: ECE: R10
• Warranty: 24 months

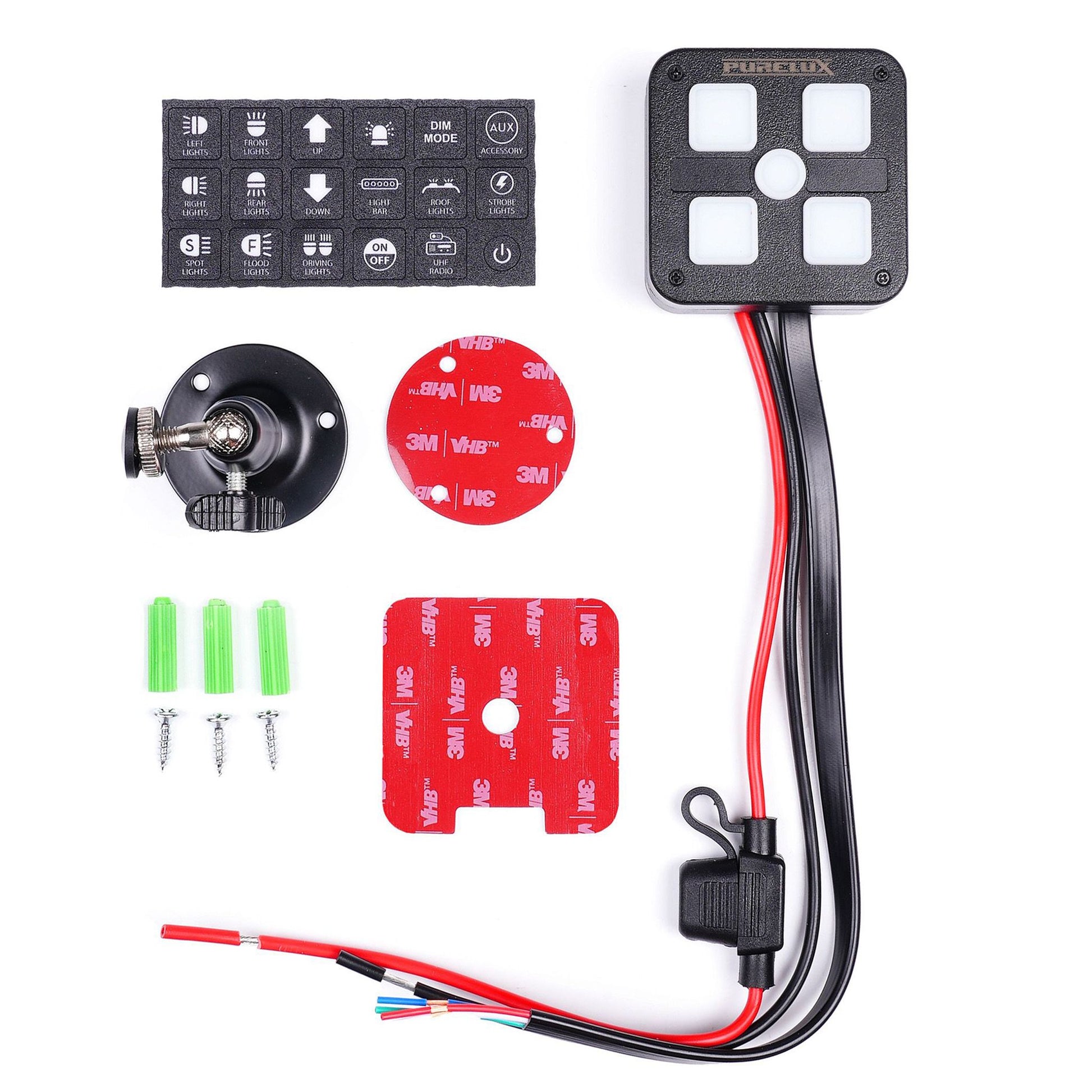

Set contents:

• Switch panel
• 3M self-adhesive mount
• Sticker sheet for the switch
• Base with screw fastening
• 3 x screws
• Installation and connection instructions

Additional information: The panel is equipped with a backlight, which makes it easy to use the switches in the dark. In addition to the sticker attachment, it is also possible to install the panel with a separate base, allowing the panel to be screwed directly into the vehicle. The panel can be installed on almost any surface thanks to the durable 3M adhesive tape
